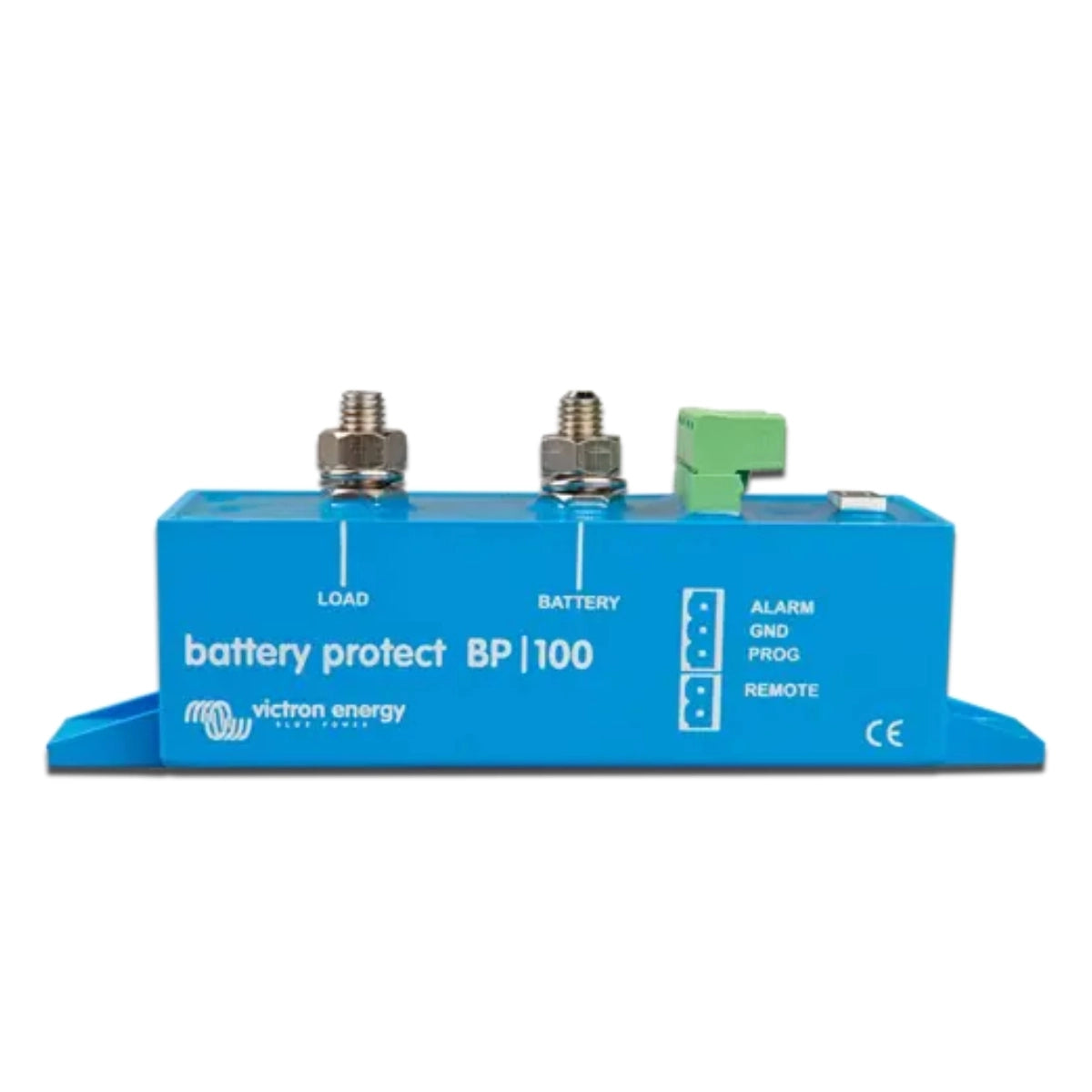

The BatteryProtect safeguards your battery by disconnecting non-essential loads before voltage drops too low or cranking power is lost. It supports one-way current flow—from battery to load or from charger to battery—and must be wired accordingly for proper use.
Product Features:
- 12/24V Auto Ranging: Automatically detects system voltage for easy setup.
- Easy Programming: Choose from multiple engage/disengage voltage settings, with a seven-segment display for clear indication.
- Li-ion Battery Mode: Special setting allows control via VE.Bus BMS; also functions as a charge interrupter for Li-ion systems.
- Ultra Low Power Consumption: Ideal for Li-ion batteries, especially post low-voltage shutdown.
- Over Voltage Protection: Disconnects load if voltage exceeds 16V (12V systems) or 32V (24V systems) to protect sensitive equipment.
- Ignition Proof Design: Uses MOSFET switches instead of relays—no sparks, safer operation.
- Delayed Alarm Output: Activates after 12 seconds of low voltage to avoid false alarms during engine start.
-
Delayed Disconnect/Reconnect: Load disconnects after 90 seconds of low voltage and reconnects 30 seconds after voltage recovery.
Specifications:
- Max. Continuous Load Current: 100A
- Peak Current (30 seconds): 600A
- Operating Voltage Range: 6–35V
-
Current Consumption:
- On: 1.5 mA
- Off / Low Voltage Shutdown: 0.6 mA
- Alarm Output Delay: 12 seconds
- Maximum Alarm Load: 50 mA (short circuit proof)
- Load Disconnect Delay: 90 seconds (immediate when triggered by VE.Bus BMS)
- Load Reconnect Delay: 30 seconds
-
Default Voltage Thresholds:
- Disengage: 10.5V / 21V
- Engage: 12V / 24V
-
Operating Temperature Range:
- Full load: -40°C to +40°C
- Up to 60% load at 50°C
-
IP Rating:
- Electronics: IP67 (potted)
- Connections: IP00
- Connection Size: M8
- Mounting Torque: 9 Nm
- Weight: 0,5 kg 0.6 lbs
-
Dimensions (HxWxD): 59 x 42 x 115 mm / 2.4 x 1.7 x 4.6 inch
