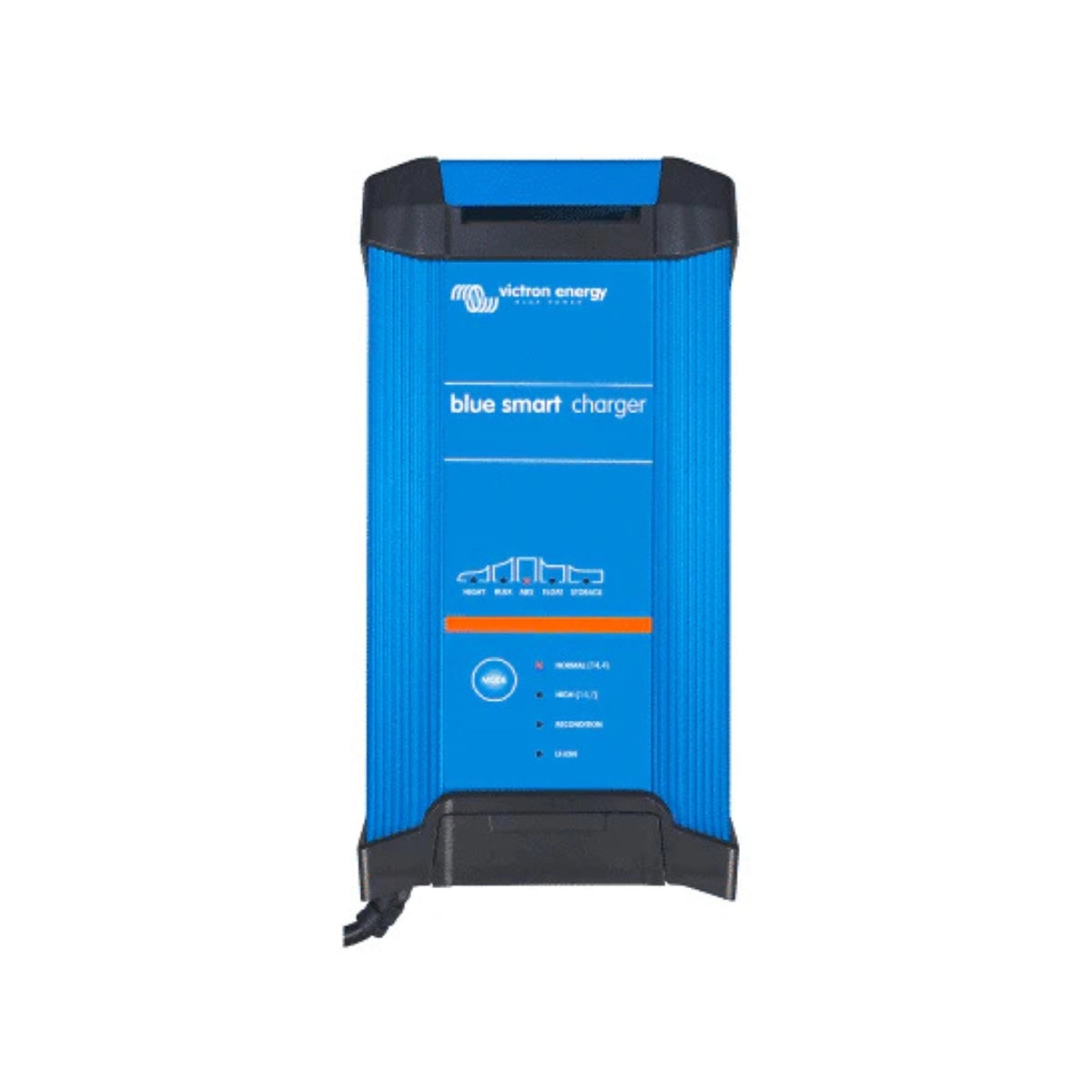

The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Product Features:
-
Bluetooth Smart Enabled:
Wirelessly monitor voltage, current, and settings, and update firmware via the VictronConnect app. -
High Efficiency:
Up to 94% efficiency with minimal heat generation and ultra-low standby power consumption (0.5W). -
Adaptive 6-Stage Charging:
Smart charging algorithm includes: Test, Bulk, Absorption, Recondition, Float, and Storage modes—automatically optimized for battery condition and usage. -
Fully Programmable Charging:
Customize Absorption, Float, and Storage voltages, Recondition settings, and temperature compensation via the app. Expert mode unlocks full parameter control. -
Storage Mode:
Reduces float voltage to prevent gassing and corrosion during periods of non-use; periodically recharges to avoid battery stratification and sulfation. -
Li-ion Battery Support:
Supports simple bulk–absorption–float charging for Li-ion batteries, with automatic recovery for deeply discharged cells.
Specifications:
- Input voltage range: 180 – 265 VAC
-
Charge current (normal mode): 12 A
-
Charge current (Night/Low mode): 6 A
-
Efficiency: 94%
- No load power consumption: 0.5 W
- Frequency: 45 – 65 Hz
- Number of outputs: 3
-
Absorption voltage: Normal: 28,8 V High: 29,4 V Li-ion: 28,4 V
-
Float voltage: Normal: 27,6 V High: 27,6 V Li-ion: 27,0 V
-
Storage voltage: Normal: 26,4 V High: 26,4 V Li-ion: 27,0 V
- charging algorithm: 6-stage adaptive
- Can be used as power supply
-
Protection features:
- Battery reverse polarity (fuse)
- Output short circuit protection
- Over temperature protection
- Operating temperature range: -40 to +60 °C (full rated output up to 40 °C)
- Humidity (non-condensing): Max 98 %
-
Material & Colour: Aluminium (blue RAL 5012)
- Battery connection: Screw terminals, 16 mm² / AWG6
- 230 VAC connection: Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
- Protection category: IP22
- Weight: 1.3 kg
- Dimensions (H x W x D): 235 x 108 x 65 mm
- Safety standards: EN 60335-1, EN 60335-2-29
- Emission standards: EN 55014-1, EN 61000-6-3, EN 61000-3-2
- Immunity standards: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
-
Automotive compliance: ECE R10-5
