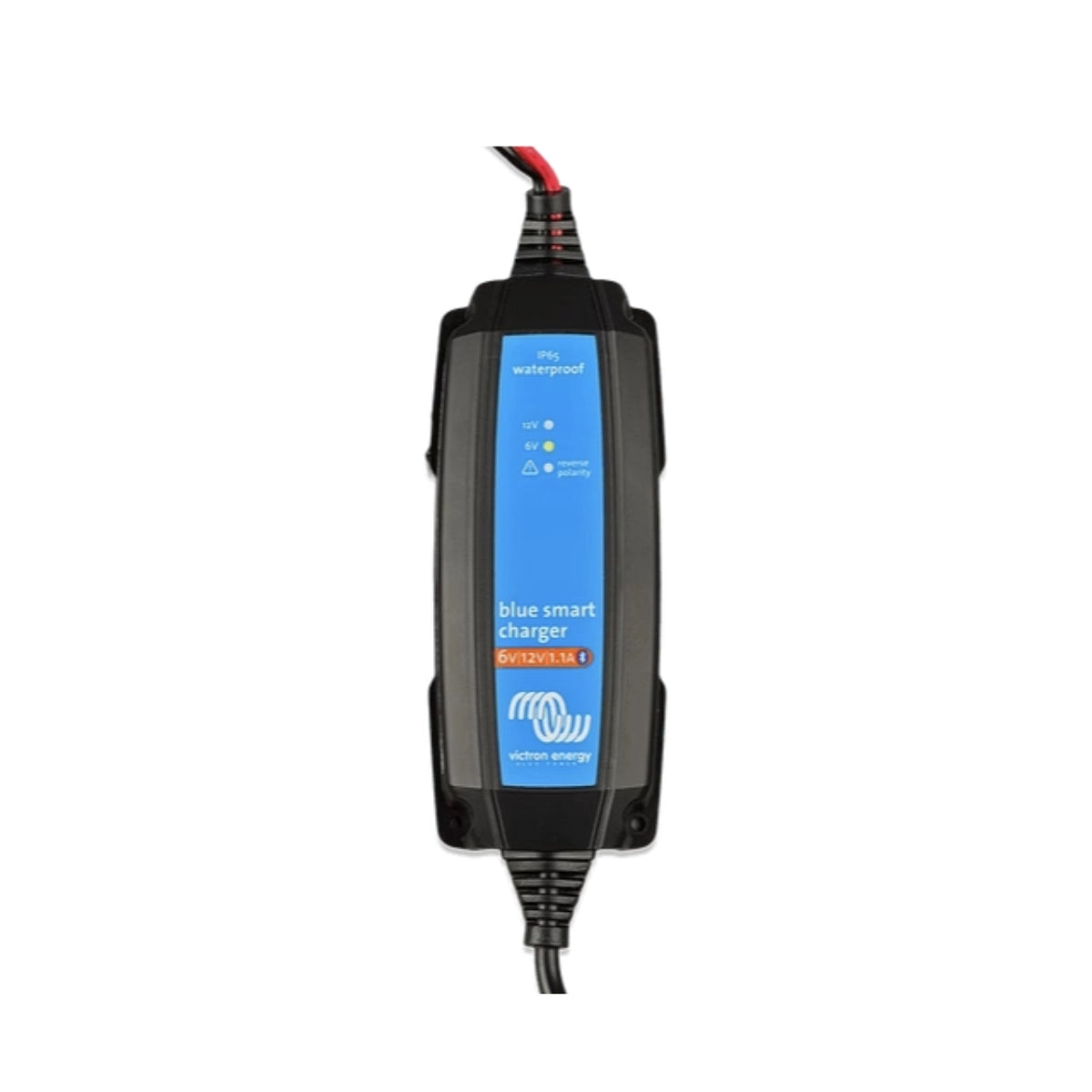

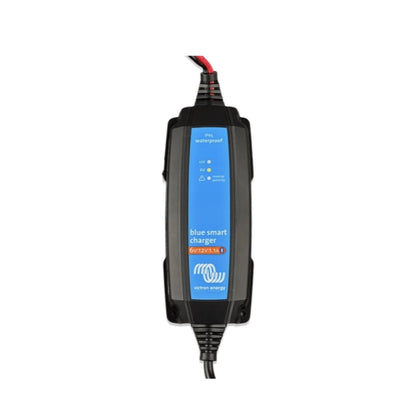

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
Product Features:
- Water, dust, and chemical resistant design
- Seven-step smart charging algorithm for optimal battery care
- Capable of recovering fully discharged or ‘dead’ batteries
- Automatic power supply function when charging is not needed
- Performs reliably in severe cold conditions down to -30°C
- Includes multiple features to enhance overall battery life
- Low power mode available for safely charging smaller batteries
- Dedicated Li-ion battery charging mode

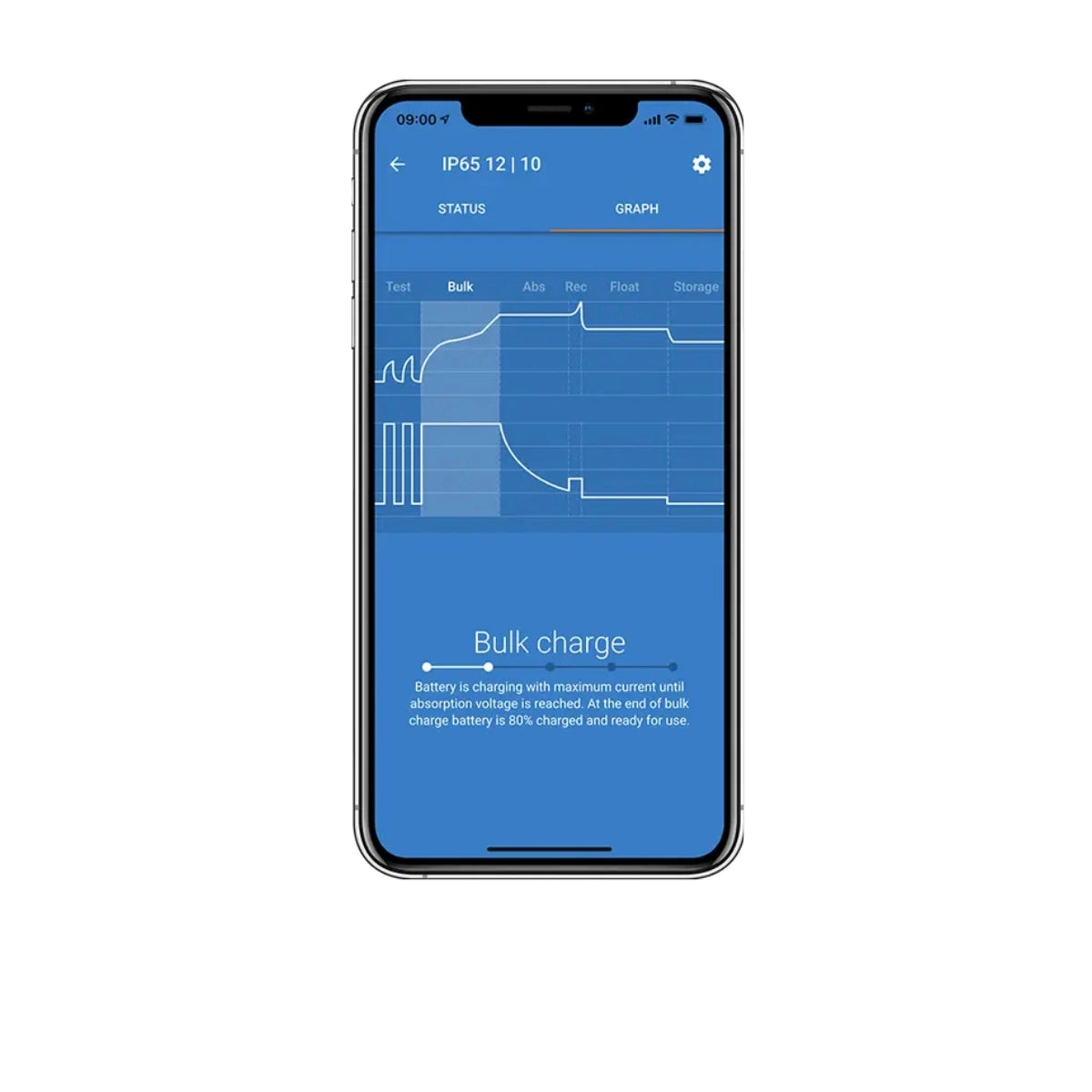

- Setup, configuration, and monitoring via Bluetooth Smart with the VictronConnect app
Specifications:
Electrical Specifications
- Input Voltage & Frequency Range: 100 - 250VAC
- Efficiency: 82%
- Standby Power Consumption: <0,5 W
- Minimum Battery Voltage: Starts charging from 0V
Charge Voltage (Absorption)
- Normal: 7,2 V
- High: 7,35 V
- Li-ion: 7,1 V
Charge Voltage (Float)
- Normal: 6,9 V
- High: 6,9 V
- Li-ion: Disabled
Charge Voltage (Storage)
- Normal: 6,6 V
- High: 6,6 V
- Li-ion: 6,75 V
- Charge Current: 1.1A
- Low Current Mode: 0.5A
- Temperature Compensation: 8 mV/°C
- Power Supply Mode: Yes
- Back Current Drain: 0,1 Ah/month (140uA)
Protection Features
- Reverse Polarity
- Output Short Circuit
- Over Temperature
Operating Conditions
- Operating Temperature Range: -30 to +50°C (full rated output up to 30°C)
- Humidity (non-condensing): Max 95%
Charging Algorithm
- 7-stage adaptive
- Bluetooth: -48 dBm, 2402 – 2480 MHz
Physical Specifications
- 230V AC-connection: Cable of 1,5 meter with CEE 7/16 Plug
- Protection Category: IP65 (splash and dust proof)
- Weight: 0,4 kg
- Dimensions (L x W x D): 38 x 64 x 153 mm
