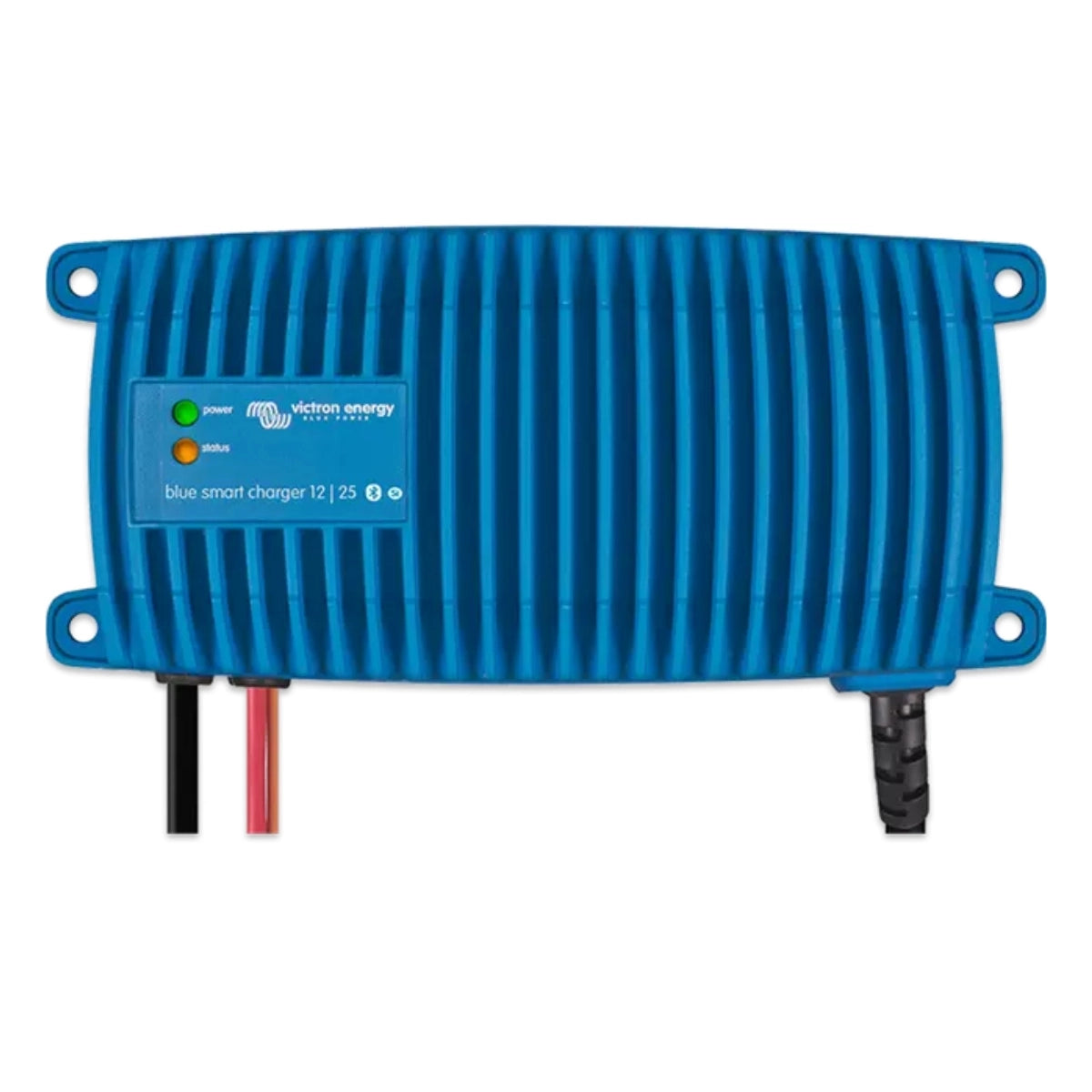

Victron Blue Smart IP67 Charger 12/25(1) 230V CEE 7/7

Product Features:

• Bluetooth Smart Enabled

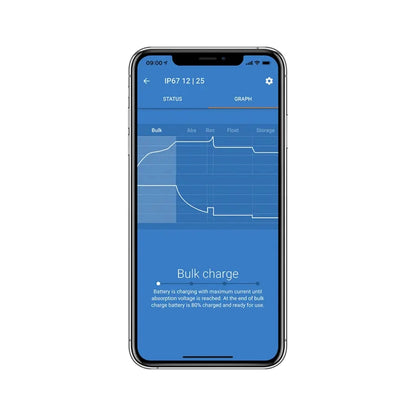

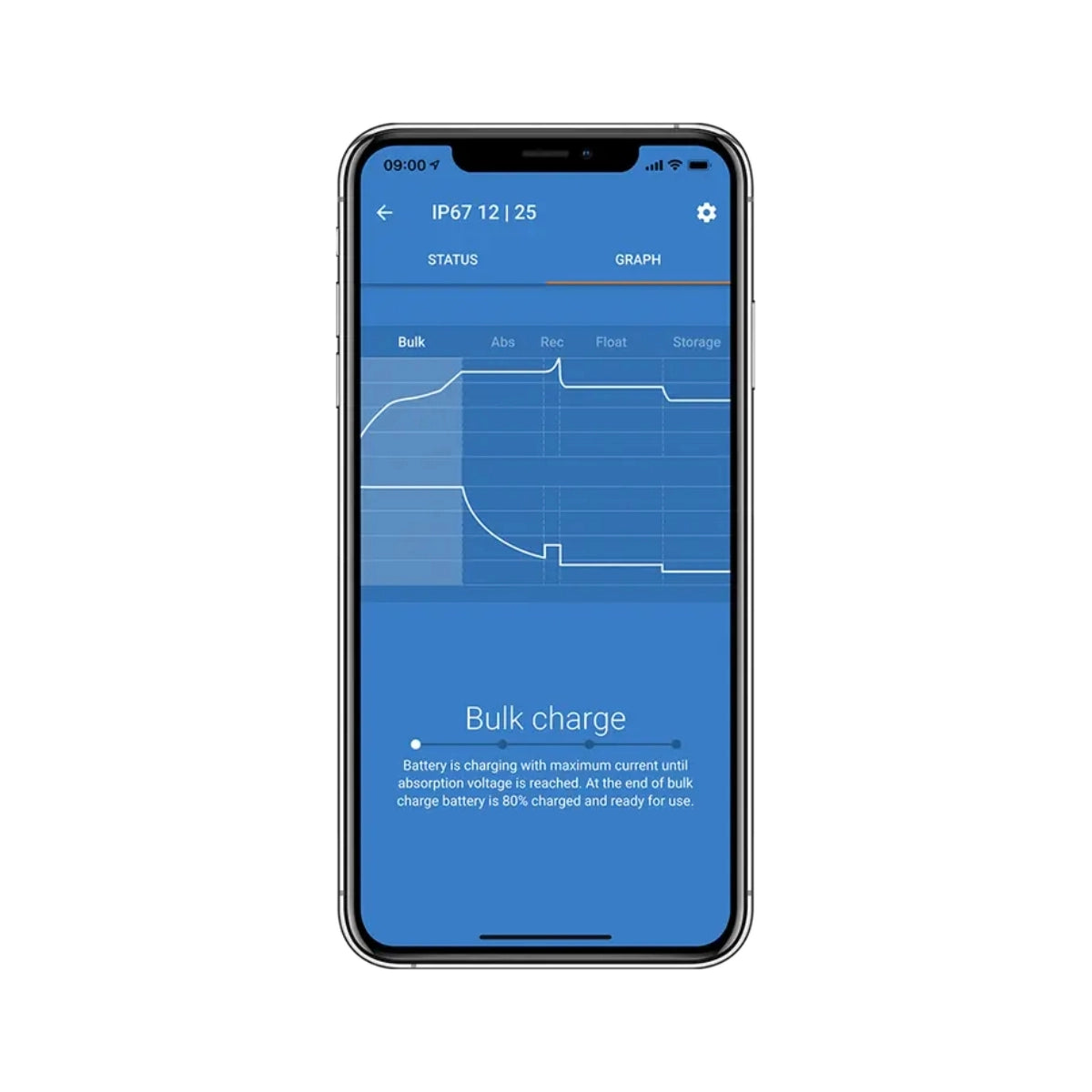

  Monitor voltage and current, adjust settings, and update firmware wirelessly via the VictronConnect app.
• Completely Encapsulated & Durable
  Waterproof, shockproof, and ignition protected with a cast aluminium body and resin-encased electronics — resistant to water, oil, and dirt.
• High Efficiency Charging
  Industry-leading efficiency of up to 92%, with ultra-low standby power consumption (<1W).
• Adaptive 5-Stage Charging Algorithm
  Smart charging process with Bulk, Absorption, Recondition, Float, and Storage stages, optimizing battery health and lifespan.
• Storage Mode Functionality
  Minimizes battery aging by reducing float voltage after 24 hours of inactivity and weekly equalization cycles to prevent sulphation.
• Li-ion Battery Compatible
  Supports Li-ion charging using a simple Bulk – Absorption – Float algorithm.
• Deep Discharge Recovery
  Capable of recharging fully discharged batteries, including Li-ion with internal disconnect.
• Thermal Protection
  Operates safely in high-temperature environments up to 60°C by reducing output current without failure.
• Status Indicator LEDs
  • Yellow LED: Charging stage (blinking fast = Bulk, slow = Absorption, solid = Float, off = Storage)
  • Green LED: Power On indicator


Specifications:

• Nominal Voltage Range & Frequency: 220–240 VAC, 50–60 Hz

• Input Voltage Range & Frequency: 180–265 VAC, 45–65 Hz

• Efficiency: 95%

• No Load Power Consumption: 0.5 W

• Charge Voltage – Absorption:
  • Normal: 14.4 V
  • High: 14.7 V
  • Li-ion: 14.2 V

• Charge Voltage – Float:
  • Normal: 13.8 V
  • High: 13.8 V
  • Li-ion: 13.5 V

• Charge Voltage – Storage:
  • Normal: 13.2 V
  • High: 13.2 V
  • Li-ion: 13.5 V

• Charge Current – Normal Mode: 25 A

• Charge Current – Low Mode: 10 A

• Charge Algorithm: 5-stage adaptive

• Power Supply Function: Yes

• Protection: Battery reverse polarity (fuse), output short circuit, over-temperature

• Operating Temperature Range: -20 °C to +60 °C (full rated output up to 40 °C)

• Derating: 3% per °C above 40 °C

• Humidity: Up to 100%

• Start Interrupt Option: Short circuit proof, current limit 0,5 A Output voltage: max one volt lower than main output

• Short Circuit Proof: Yes, current limit 0.5 A

• Output Voltage (Aux): Max one volt lower than main output

• Material & Colour: Aluminium, blue (RAL 5012)

• Battery Connection: Black and red cable, 1.5 meters

• 230 VAC Connection: Cable of 1.5 meters with CEE 7/7 plug

• Protection Category: IP67

• Weight: 2.4 kg

• Dimensions (H x W x D): 99 x 219 x 65

• Safety Standards: EN 60335-1, EN 60335-2-29

• Emission Immunity: EN 55014-1, EN 61000-6-3, EN 61000-3-2

• Automotive Directive Compliance: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
