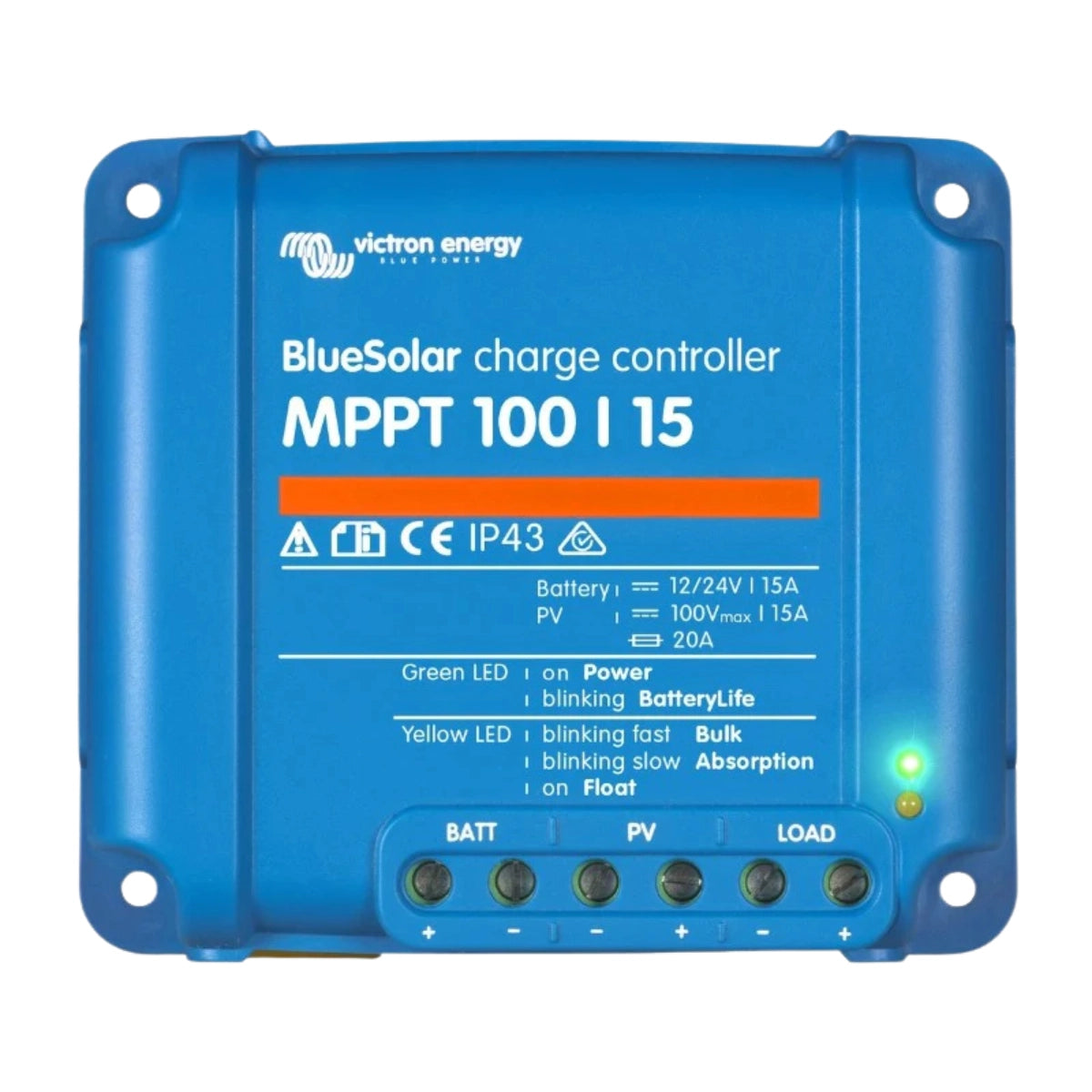

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
Product Features:
-
Ultra-Fast Maximum Power Point Tracking (MPPT)
Increases energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers—especially effective in rapidly changing light conditions. -
Load Output with Battery Protection
Prevents battery over-discharge by disconnecting loads at a pre-set voltage. Short-circuit proof output. Suitable for direct inverter connections via special interface cables (see manual). -
Battery Life Algorithm
Extends battery life by ensuring regular full recharges. Dynamically adjusts disconnect levels to prevent deep cycling and maintain battery health. -
Programmable Charging
Customizable charging algorithms available through software. Tailor charging behavior to suit specific battery types and applications. -
Day/Night Timing & Light Dimming
Configurable lighting control for solar lighting systems. Manage timing and brightness via software. -
Real-Time Monitoring & Programming Options
Compatible with Color Control GX and other GX devices for in-depth monitoring. Bluetooth-enabled devices require VE.Direct Bluetooth Smart dongle for mobile access to data and settings.
Specifications:
- Battery Voltage (Auto Select): 12/24V
- Rated Charge Current: 15A
- Nominal PV Power, 12V: 220W
- Nominal PV Power, 24V: 440W
- Max. PV short circuit current: 15A
- Max. PV Open Circuit Voltage: 100V
- Peak Efficiency: 98%
- Self-Consumption – Load On: 12V: 25 mA 24V: 15 mA
- Self-Consumption – Load Off: 12V: 25 mA 24V: 15 mA
- Charge Voltage – Absorption: 14.4V / 28.8V (adjustable)
- Charge Voltage – Float: 13.8V / 27.6V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C resp. -32 mV / °C
- Max. Continuous Load Current: 15A
- Low Voltage Load Disconnect: 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or
- Battery Life algorithm
- Low Voltage Load Reconnect: 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery
- Life algorithm
- Protection: Output short circuit / Over-temperature
- Operating Temperature: -30°C to +60°C (full rated output up to 40°C)
- Humidity: 95%, non-condensing
- Data Communication Port: VE.Direct
- Enclosure
- Colour: Blue (RAL 5012)
- Power Terminals: 6 mm² / AWG10
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Weight: 0.6 kg
- Dimensions (h x w x d): 100 x 113 x 50 mm
-
Standards
- Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
