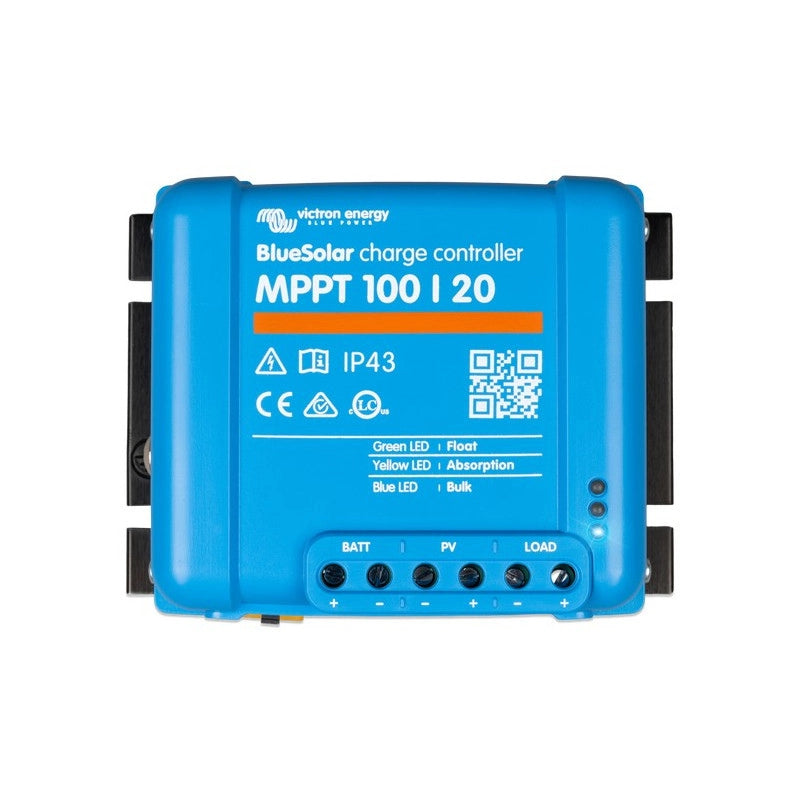

Victron BlueSolar MPPT 100/20 (up to 48V)

Victron BlueSolar MPPT 100/20 (up to 48V)

R 1,099.00
R 1,099.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Victron BlueSolar MPPT 100/20 (up to 48V)

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Product Features:

  • Ultra-Fast Maximum Power Point Tracking (MPPT): Increases energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers—especially effective in rapidly changing light conditions.
  • Load Output with Battery Protection: Prevents battery over-discharge by disconnecting loads at a pre-set voltage. Short-circuit proof output. Suitable for direct inverter connections via special interface cables (see manual).
  • Battery Life Algorithm: Extends battery life by ensuring regular full recharges. Dynamically adjusts disconnect levels to prevent deep cycling and maintain battery health.
  • Programmable Charging: Customizable charging algorithms available through software. Tailor charging behavior to suit specific battery types and applications.
  • Day/Night Timing & Light Dimming: Configurable lighting control for solar lighting systems. Manage timing and brightness via software.
  • Real-Time Monitoring & Programming Options: Compatible with Color Control GX and other GX devices for in-depth monitoring. Bluetooth-enabled devices require VE.Direct Bluetooth Smart dongle for mobile access to data and settings.

PRODUCT SPECIFICATIONS

- Battery Voltage (Auto Select): 12/24/48V
- Rated Charge Current: 20A
- Nominal PV Power, 12V: 290W
- Nominal PV Power, 24V: 580W
- Max. PV short circuit current: 20A
- Max. PV Open Circuit Voltage: 100V
- Peak Efficiency: 98%
- Self-Consumption – Load On: 26 / 20 / 19 mA
- Self-Consumption – Load Off: 10 / 8 / 7 mA
- Charge Voltage – Absorption: 14,4V / 28,8V / 57,6V (adj.)
- Charge Voltage – Float: 13,8V / 27,6V / 55,2V (adj.)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C resp. -32 mV / °C
- Max. Continuous Load Current: 20A / 20A / 1A
- Low Voltage Load Disconnect: 11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or Battery Life algorithm
- Low Voltage Load Reconnect: 13.1V / 26.2V / 52.4V or 14V / 28V / 56V or Battery Life algorithm
- Protection: Output short circuit / Over-temperature
- Operating Temperature: -30°C to +60°C (full rated output up to 40°C)
- Humidity: 95%, non-condensing
- Data Communication Port: VE.Direct
- Colour: Blue (RAL 5012)
- Power Terminals: 6 mm² / AWG10
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Weight: 0,65 kg
- Dimensions (h x w x d): 100 x 131 x 60 mm
- Compliance Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

IMPORTANT NOTICE

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
