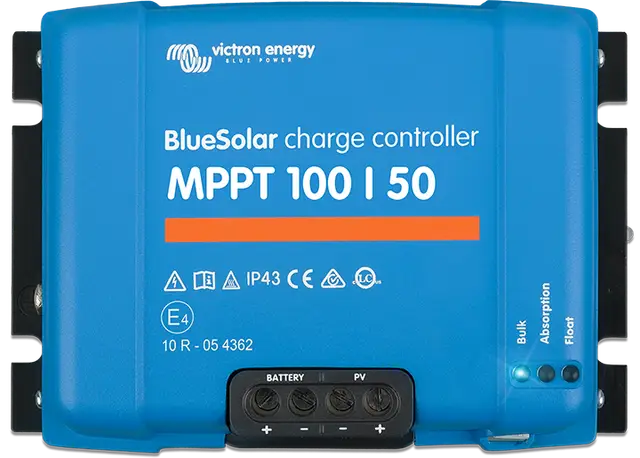

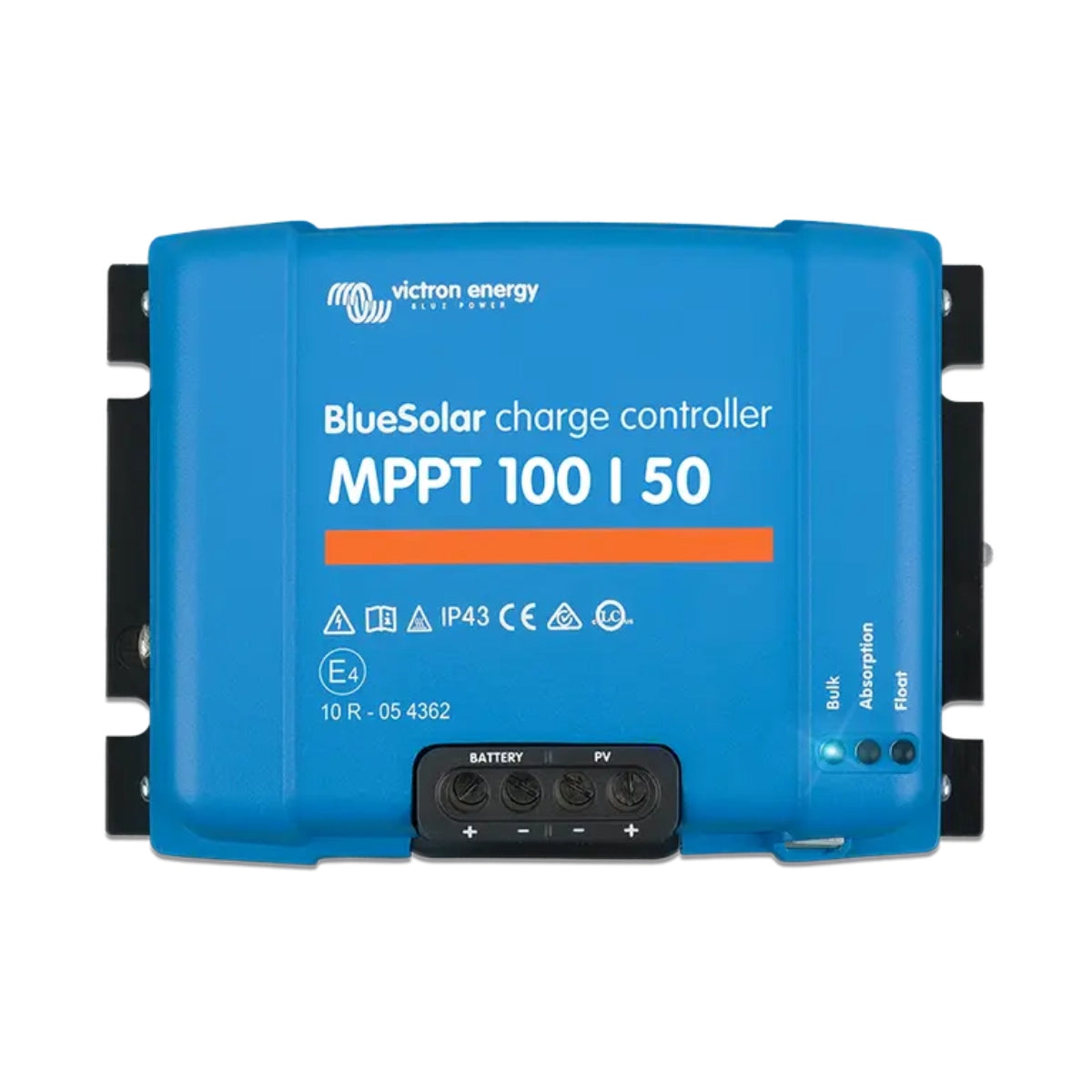

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
Product Features:
-
Ultrafast MPPT
Boosts energy harvest by up to 30% in changing light conditions. -
Partial Shading Optimization
Finds the best power point even when panels are shaded. -
High Efficiency
Over 98% efficiency, full output up to 40°C, no cooling fan needed. -
Programmable Charging
Custom and pre-set algorithms selectable via rotary switch. -
Advanced Protection
Guards against over-temp, short circuits, reverse polarity, and more. -
Smart Temperature Compensation
Adjusts charge based on ambient temperature. -
Real-Time Monitoring
Works with GX devices and Bluetooth (dongle required).
Specifications:
- Battery Voltage: 12/24V Auto Select
- Rated Charge Current: 50A
- Nominal PV Power, 12V: 7000W
- Nominal PV Power, 24V: 1400W
- Maximum PV Open Circuit Voltage: 100V
- Max. PV Short Circuit Current: 60A
- Maximum Efficiency: 98%
- Self-Consumption: 12V: 30 mA, 24V: 20 mA
- Charge Voltage 'Absorption': Default setting 14.4V / 28.8V (adjustable)
- Charge Voltage 'Float': Default setting 13.8V / 27.6V (adjustable)
- Charge Algorithm: Multi-stage adaptive
- Temperature Compensation: -16 mV / °C resp. -32 mV / °C
- Operating Temperature: -30°C to +60°C (full rated output up to 40°C)
- Humidity: 95%, non-condensing
- Data Communication Port: VE.Direct
- Enclosure
- Colour: Blue (RAL 5012)
- Power Terminals: 16 mm² / AWG6
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Weight: 1.3 kg
- Dimensions (h x w x d): 130 x 186 x 70 mm
- Standards
- Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2
