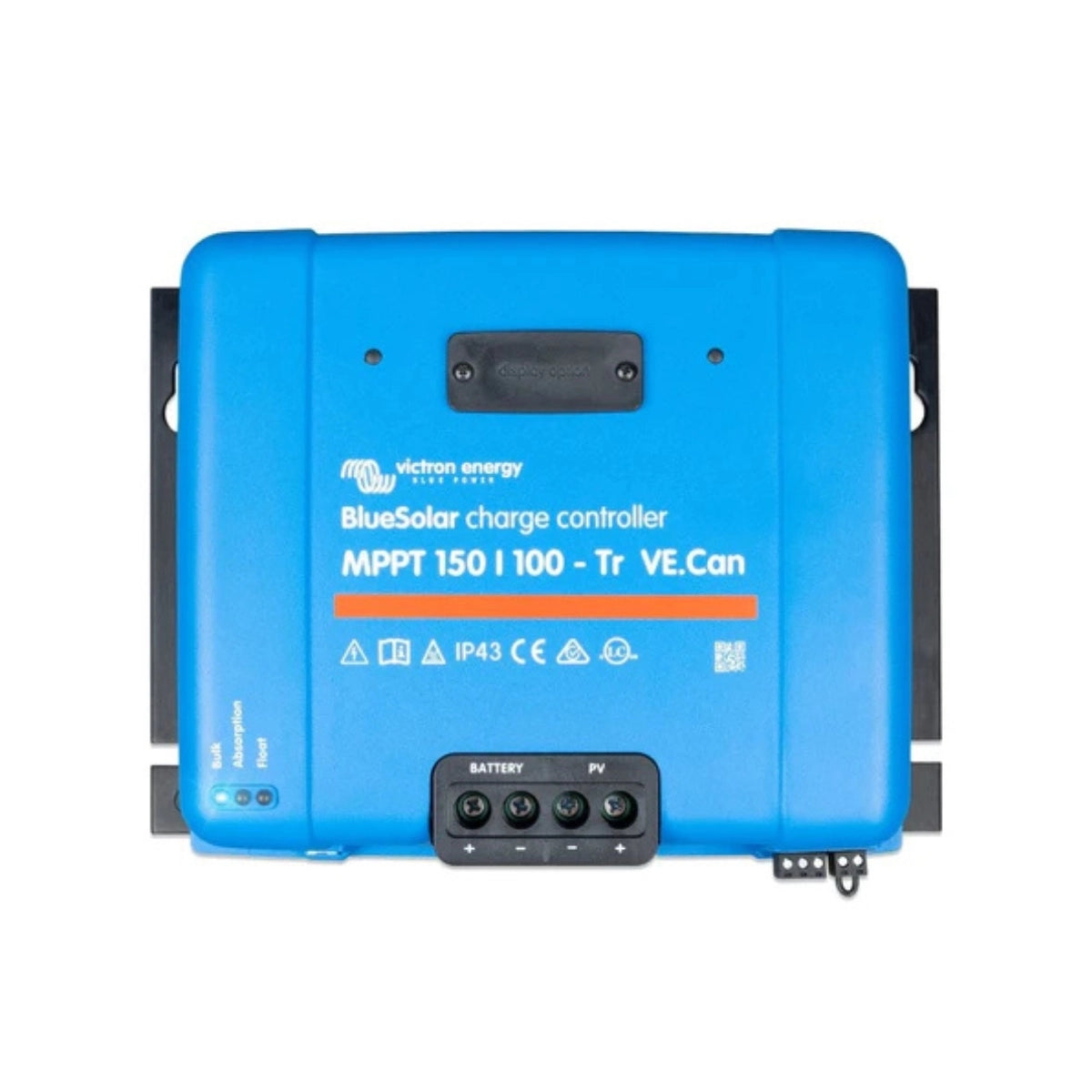

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
Product Features:
-
Ultra-fast MPPT
Boosts energy harvest by up to 30% in changing light. -
Partial Shading Optimization
Locks onto the optimal power point, even with shading. -
99% Efficiency
No fan needed, high performance in all conditions. -
Programmable Charging
Fully adjustable with 8 presets via rotary switch. -
Advanced Protection
Guards against over-temp, short circuit, and reverse polarity. -
Smart Temperature Compensation
Adjusts charging based on ambient temperature. -
Optional Smart Battery Sensing
Works with BMV-712, SmartShunt, or Smart Battery Sense. -
VE.Can & VE.Direct
Supports multi-controller sync and wired data connections. -
Remote On/Off & Relay
External control and programmable relay for automation. -
Optional LCD Display
Plug-in screen for real-time monitoring.
Specifications:
-
Battery voltage: 12 / 24 / 48V Auto Select (software tool needed to select 36V)
-
Rated charge current: 100A
-
Nominal PV power, 12V (1a,b): 1450W
-
Nominal PV power, 24V (1a,b): 2900W
-
Nominal PV power, 36V (1a,b): 4350W
-
Nominal PV power, 48V (1a,b): 5800W
-
Max. PV short circuit current (2): 70A
-
Maximum PV open circuit voltage: 150V (absolute max, coldest conditions); 145V (start-up & operating)
-
Maximum efficiency: 98%
-
Self-consumption: Less than 35mA @ 12V / 20mA @ 48V
-
Charge voltage 'absorption': Adjustable (default: 14.4 / 28.8 / 43.2 / 57.6V)
-
Charge voltage 'float': Adjustable (default: 13.8 / 27.6 / 41.4 / 55.2V)
-
Charge voltage 'equalization': Adjustable (default: 16.2 / 32.4 / 48.6 / 64.8V)
-
Charge algorithm: Multi-stage adaptive (eight preprogrammed or user-defined)
-
Temperature compensation: -16 mV / -32 mV / -64 mV per °C
-
Protection: PV reverse polarity, output short circuit, over temperature
-
Operating temperature: -30 to +60°C (full rated output up to 40°C)
-
Humidity: 95% (non-condensing)
-
Maximum altitude: 5000m (full rated output up to 2000m)
-
Environmental condition: Indoor, unconditioned
-
Pollution degree: PD3
-
Data communication port: VE.Direct and VE.Can
-
Remote on/off: Yes (2 pole connector)
-
Programmable relay: Yes – AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
-
Parallel operation: Yes, synchronised via VE.Can (max 25 units)
-
Colour: Blue (RAL 5012)
-
PV terminals: 35 mm² / AWG2
-
Battery terminals: 35 mm² / AWG2
-
Protection category: IP43 (electronic), IP22 (connection area)
-
Weight: 4.5 kg
-
Dimensions (h x w x d): 215 x 295 x 103 mm
- Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
