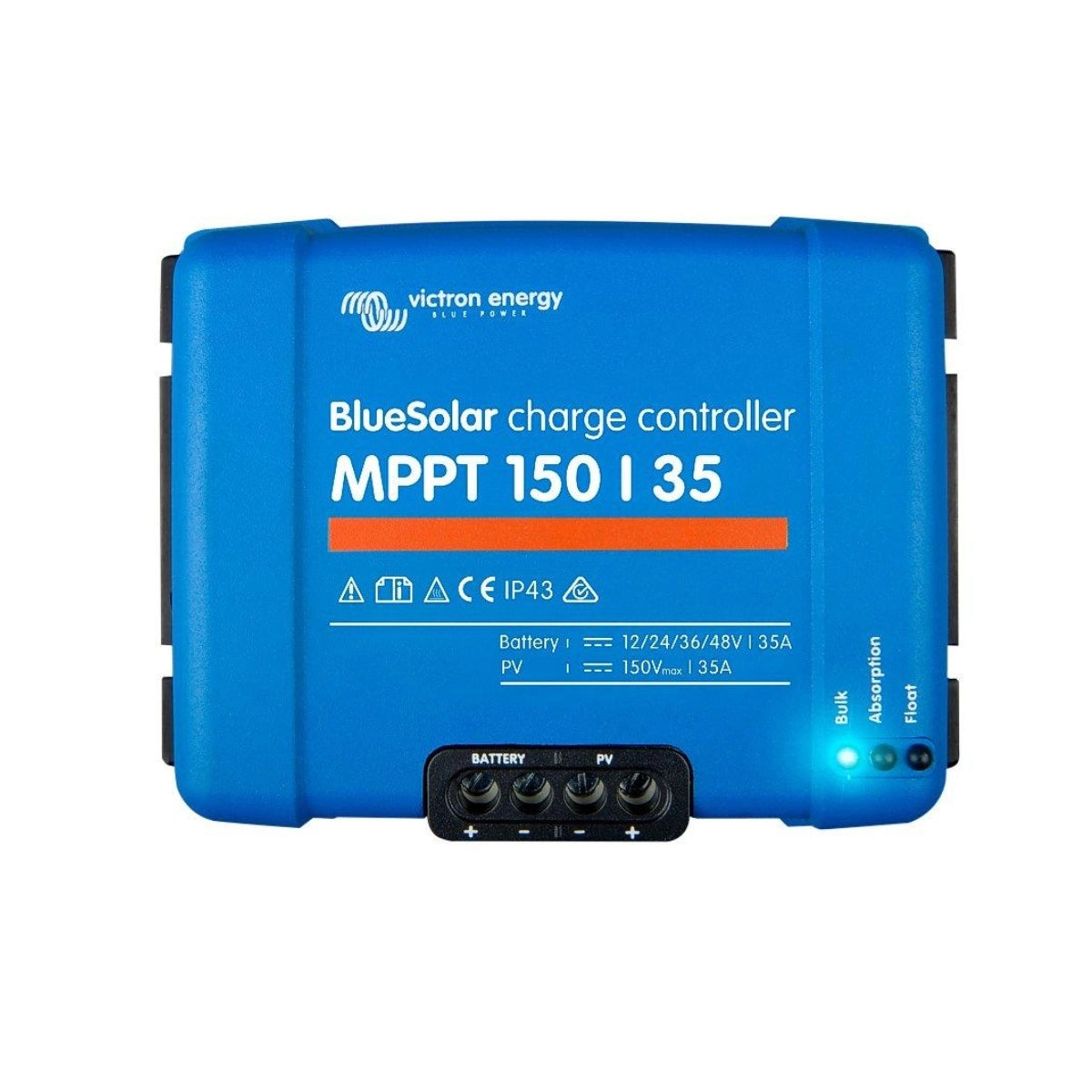

Victron BlueSolar MPPT 150/35

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Product Features:

  • Ultra-fast MPPT: Increases energy harvest by up to 30% in changing light conditions.
  • Partial Shading Optimisation: Smart tracking finds the best power point, even under shade.
  • High Efficiency: Over 98% efficiency with full output up to 40°C and no fan.
  • Programmable Charging: Choose from 8 presets or fully customise via software.
  • Advanced Protection: Built-in safeguards against reverse polarity, short circuits, and overheating.
  • Smart Temperature Compensation: Adjusts charge settings based on temperature for battery health.
  • Flexible Monitoring: Compatible with GX devices or Bluetooth (dongle required).

PRODUCT SPECIFICATIONS

- Battery voltage: 12 / 24 / 48V Auto Select (software tool needed to select 36V)
- Rated charge current: 35A
- Nominal PV power, 12V: 500W
- Nominal PV power, 24V: 1000W
- Nominal PV power, 36V: 1500W
- Nominal PV power, 48V: 2000W
- Max. PV short circuit current: 40A
- Maximum PV open circuit voltage: 150V absolute max, 145V start-up and operating max
- Maximum efficiency: 98%

Self-consumption:
- 12V: 20 mA
- 24V: 15 mA
- 48V: 10 mA

- Charge voltage 'absorption': Adjustable – default: 14.4 / 28.8 / 43.2 / 57.6V
- Charge voltage 'float': Adjustable – default: 13.8 / 27.6 / 41.4 / 55.2V
- Charge algorithm: Multi-stage adaptive (eight pre-programmed algorithms)
- Temperature compensation: -16 mV / -32 mV / -64 mV per °C
- Protection: PV reverse polarity, output short circuit, over-temperature
- Operating temperature: -30°C to +60°C (full rated output up to 40°C)
- Humidity: 95%, non-condensing
- Data communication port: VE.Direct
- Enclosure Colour: Blue (RAL 5012)
- Power terminals: 16 mm² / AWG6
- Protection category: IP43 (electronics), IP22 (connection area)
- Weight: 1.25 kg
- Dimensions (h x w x d): 130 x 186 x 70 mm
- Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
