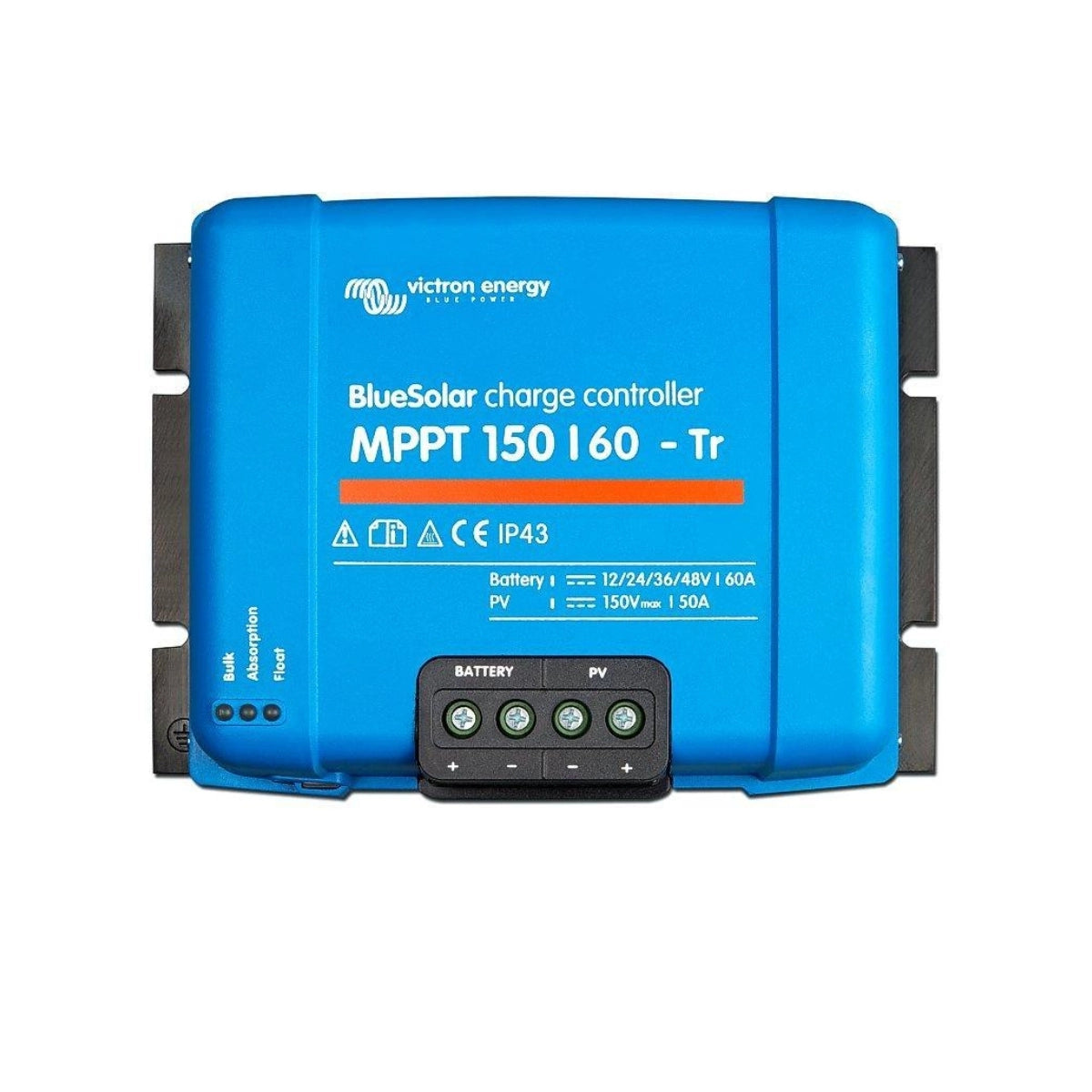

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
Product Features:
-
Ultra-fast MPPT
Increases energy harvest by up to 30% in changing light conditions. -
Partial Shading Optimisation
Smart tracking finds the best power point, even under shade. -
High Efficiency
Over 98% efficiency with full output up to 40°C and no fan. -
Programmable Charging
Choose from 8 presets or fully customise via software. -
Advanced Protection
Built-in safeguards against reverse polarity, short circuits, and overheating. -
Smart Temperature Compensation
Adjusts charge settings based on temperature for battery health. -
Flexible Monitoring
Compatible with GX devices or Bluetooth (dongle required).
Specifications:
-
Battery voltage: 12 / 24 / 48V Auto Select (software tool needed to select 36V)
-
Rated charge current: 60 A
-
Nominal PV power, 12V (1a,b): 860 W
-
Nominal PV power, 24V (1a,b): 1720 W
-
Nominal PV power, 36V (1a,b): 3440 W
-
Nominal PV power, 48V (1a,b): 2000W
-
Max. PV short circuit current (2): 50A
-
Maximum PV open circuit voltage: 150V absolute max, 145V start-up and operating max
-
Maximum efficiency: 98%
- Self-consumption: 10 mA
-
Charge voltage 'absorption': Adjustable – default: 14.4 / 28.8 / 43.2 / 57.6V
-
Charge voltage 'float': Adjustable – default: 13.8 / 27.6 / 41.4 / 55.2V
-
Charge algorithm: Multi-stage adaptive (eight pre-programmed algorithms)
-
Temperature compensation: -16 mV / -32 mV / -64 mV per °C
-
Protection: PV reverse polarity, output short circuit, over-temperature
-
Operating temperature: -30°C to +60°C (full rated output up to 40°C)
-
Humidity: 95%, non-condensing
- Data communication port: VE.Direct
-
Enclosure Colour: Blue (RAL 5012)
-
Power terminals: 16 mm² / AWG6
-
Protection category: IP43 (electronics), IP22 (connection area)
-
Weight: 1.25 kg
- Dimensions (h x w x d): 130 x 186 x 70 mm
- Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
