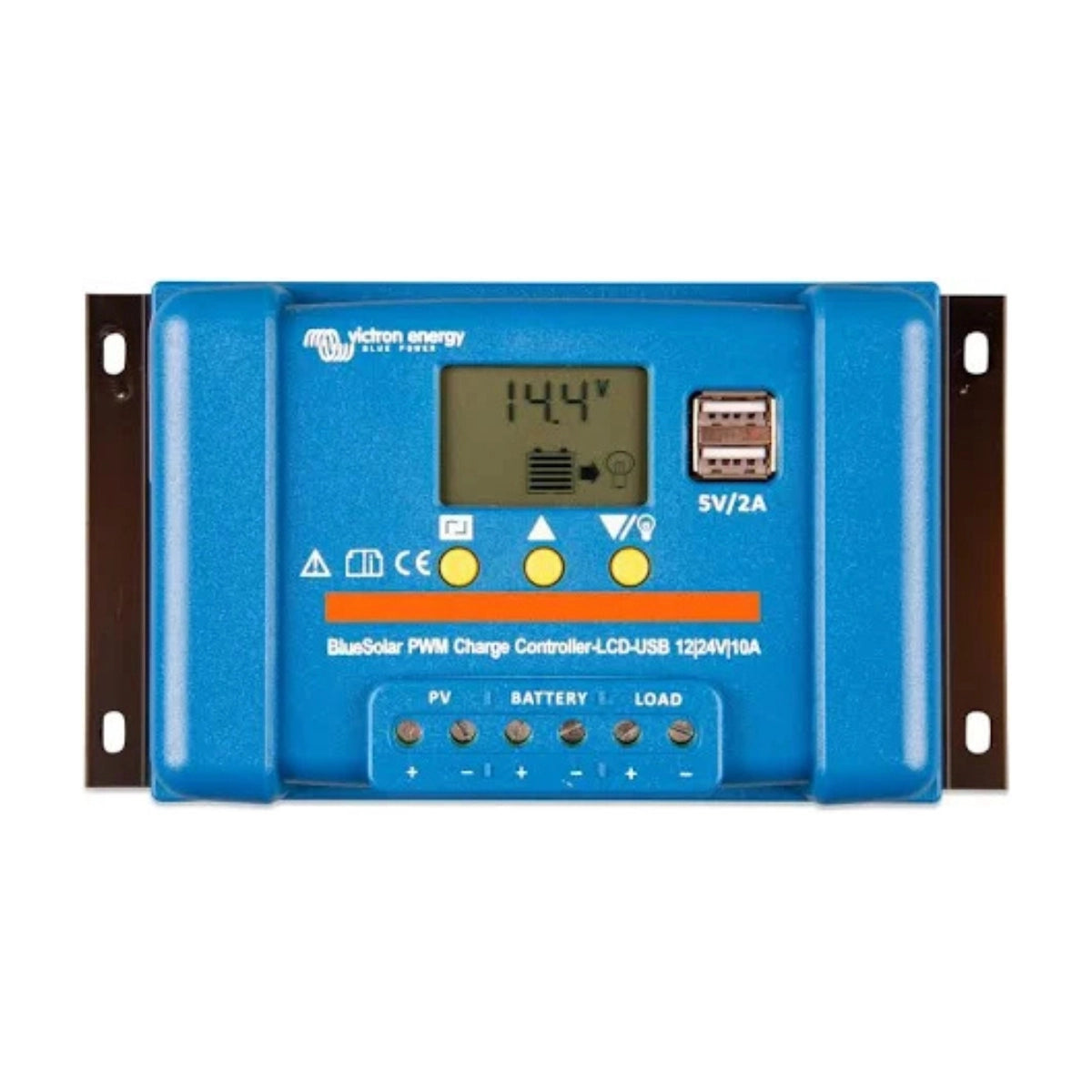

The Victron BlueSolar PWM-LCD&USB is a programmable solar charge controller with an LCD display and dual USB outputs. It features three-stage charging, load output protection, and smart lighting control. The DUO model supports dual battery charging, adjustable current ratio, and an external temperature sensor for optimized performance.
Features:
- LCD Display for easy status monitoring and setup
- Programmable 3-stage charging: bulk, absorption, float
- Load output control prevents battery over-discharge
- Day/night load timing with adjustable ON-time after dusk
- Custom battery charging for AGM, GEL, Flooded, and LiFePO₄ (with internal BMS)
- Dual 5V USB outputs (combined max: 2A) for charging small devices
- Protection features: overload, short circuit, reverse polarity
-
DUO model supports dual battery charging and external temperature sensor
Specifications:
-
Battery Voltage: 12/24V (auto-detection)
-
Rated Charge Current: 10A
-
Automatic Load Disconnect: Yes
-
Maximum Solar Voltage: 28V / 55V
-
Self-Consumption: < 10 mA
-
Load Output: Manual control + low voltage disconnect + timer
-
USB Output: 2 x 5V USB ports, max 2A total
- Protection Features: Battery reverse polarity (fused), Output short circuit, Over-temperature shutdown
-
Overload protection: Shut down after 60 s in case of 130% load, Shut down after 5 s in case of 160% load, load Short circuit: immediate shut down
-
Grounding: Common positive
- Absorption Voltage (factory): 14.4V / 28.8V
- Float Voltage (factory): 13.7V / 27.4V
- Low Voltage Disconnect: 11.2V / 22.4V
-
Low Voltage Reconnect: 12.6V / 25.2V
-
Operating Temperature: -35°C to +60°C (full load)
-
Max Humidity (non-condensing): 95%
-
Protection Class: IP20
-
Terminal Size: 6 mm² / AWG10
-
Weight: 0,15kg
-
Dimensions: 96 x 169 x 36 mm (3.8 x 6.7 x 1.4 inch)
- Safety: EN60335-1, IEC 62109-1
- EMC: EN 61000-6-1, EN 61000-6-3, ISO 7637-2
