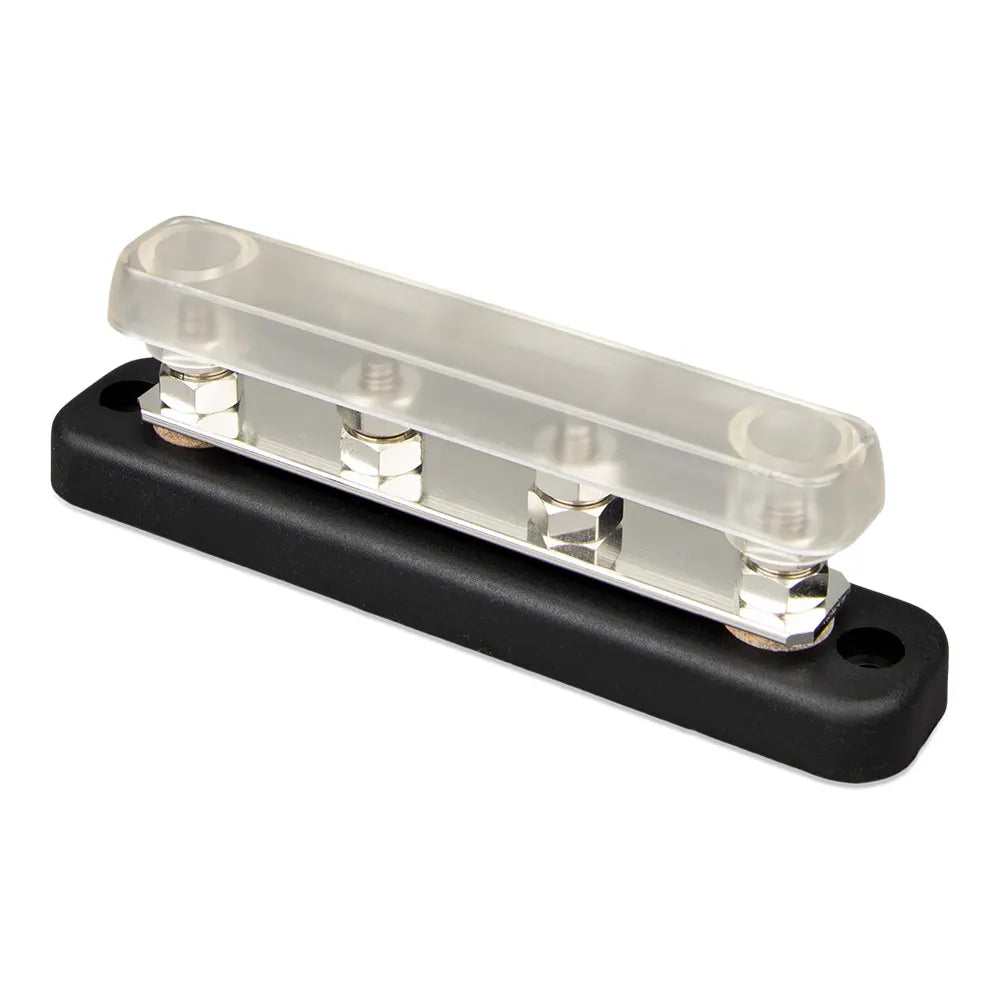

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
Specifications:
- Max. current: 150 A
- Max. Voltage: 70 VDC
- Terminal diameter: ¼ inch / 6.35 mm
- Terminal height: 0.67 inch / 17 mm
- Terminal material: Stainless steel
- Hex nut material: Tin-plated copper
- Recommended torque: 60 lbf·inch / 7 N·m
- Busbar strip material: Tin-plated copper (1.4 x 18 mm)
- Base material: ABS, black, UL 94 V-0
- Cover material: Clear Polycarbonate, UL 94 HB
- Weight, 4 terminals: 0.4 lb / 0.2 kg
- Dimensions (HxWxD) (with cover): 1.8 x 6.0 x 1.25 inch (45 x 152.4 x 31.8 mm)
- Weight, 6 terminals: 0.6 lb / 0.27 kg
- Dimensions (HxWxD) (with cover): 1.8 x 9.1 x 1.25 inch (45 x 231.7 x 31.8 mm)
