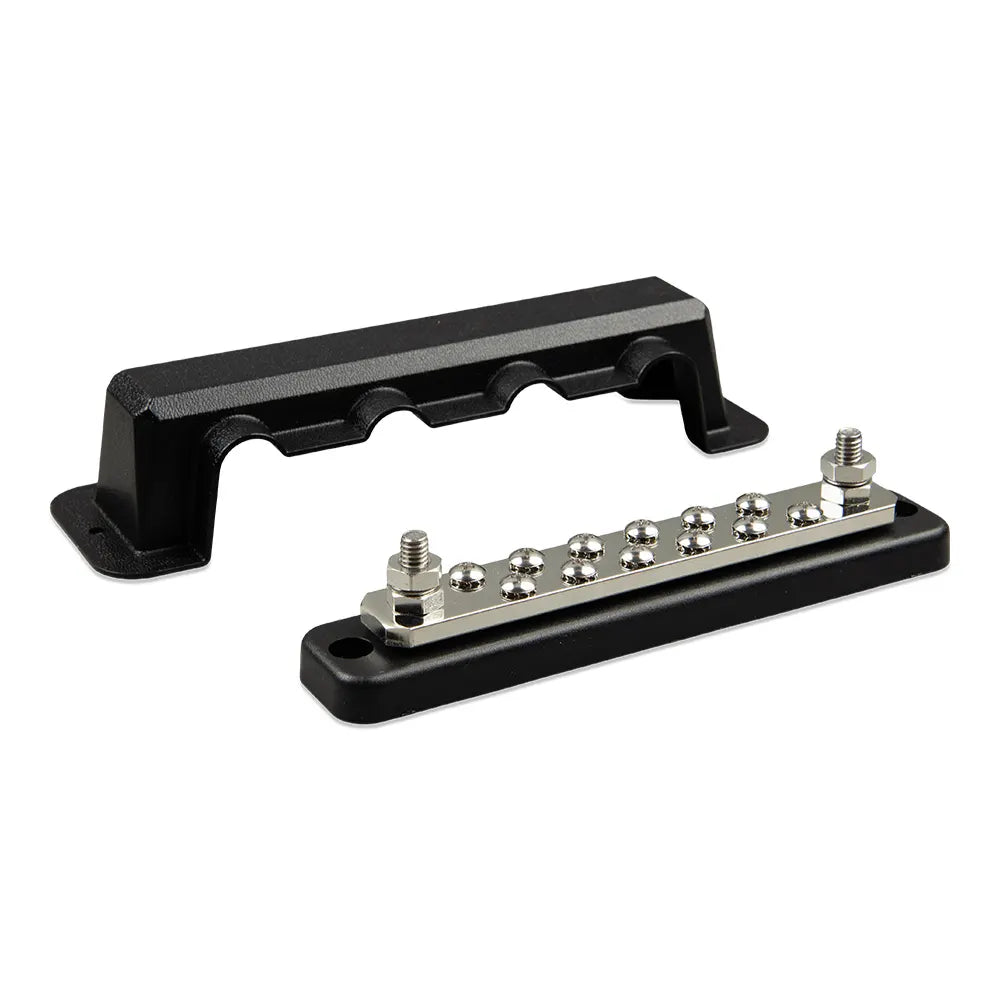

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
Specifications:
- Max. Current Rating: 250 A
- Max. Voltage Rating: 70 VDC
- Terminal Stud Diameter: 5/16 inch / 8 mm
- Terminal Height: 0.67 inch / 17 mm
- Terminal Material: Stainless Steel
- Hex Nut Material: Tin-Plated Copper
- Recommended Torque: 110 lbf·in / 13 N·m
- Terminal Screws: 10-24 / 4.8 mm
- Screw Material: Stainless Steel
- Busbar Strip Material: Tin-Plated Copper (6.35 × 25 mm)
- Base Material: ABS, Black, UL 94 V-0
- Cover Material: ABS, Black, UL 94 V-2
-
Weight (6 Screws): 0.55 lb / 0.25 kg
-
Dimensions (6 Screws, without cover): 1.6 × 6 × 1.5 inch (42 × 153 × 38 mm)
-
Dimensions (6 Screws, with cover): 1.9 × 9.4 × 2.8 inch (65 × 216 × 86 mm)
