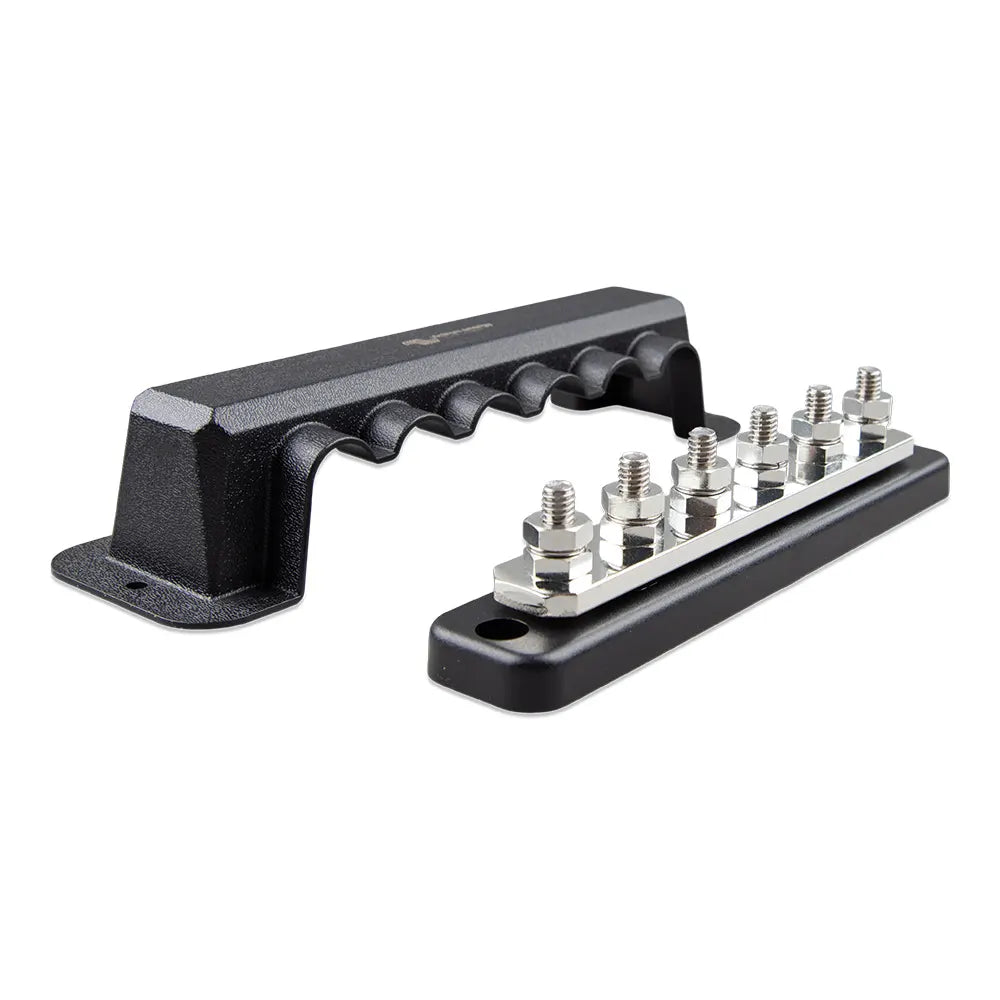

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
Specifications:
- Max. Current Rating: 250 A
- Max. Voltage Rating: 70 VDC
- Terminal Diameter: 5/16 inch / 8 mm
- Terminal Height: 0.67 inch / 17 mm
- Terminal Material: Stainless Steel
- Hex Nut Material: Tin-Plated Copper
- Recommended Torque: 110 lbf·in / 13 N·m
- Busbar Strip Material: Tin-Plated Copper (5 × 24 mm)
- Base Material: ABS, Black, UL 94 V-0
- Cover Material: ABS, Black, UL 94 V-2
- Weight (4 Terminals): 0.5 lb / 0.24 kg
- Dimensions (4 Terminals, with cover): 1.9 × 9.4 × 2.8 inch (48 × 237 × 70 mm)
- Weight (6 Terminals): 1.0 lb / 0.43 kg
- Dimensions (6 Terminals, with cover): 1.9 × 9.4 × 2.8 inch (48 × 237 × 70 mm)
