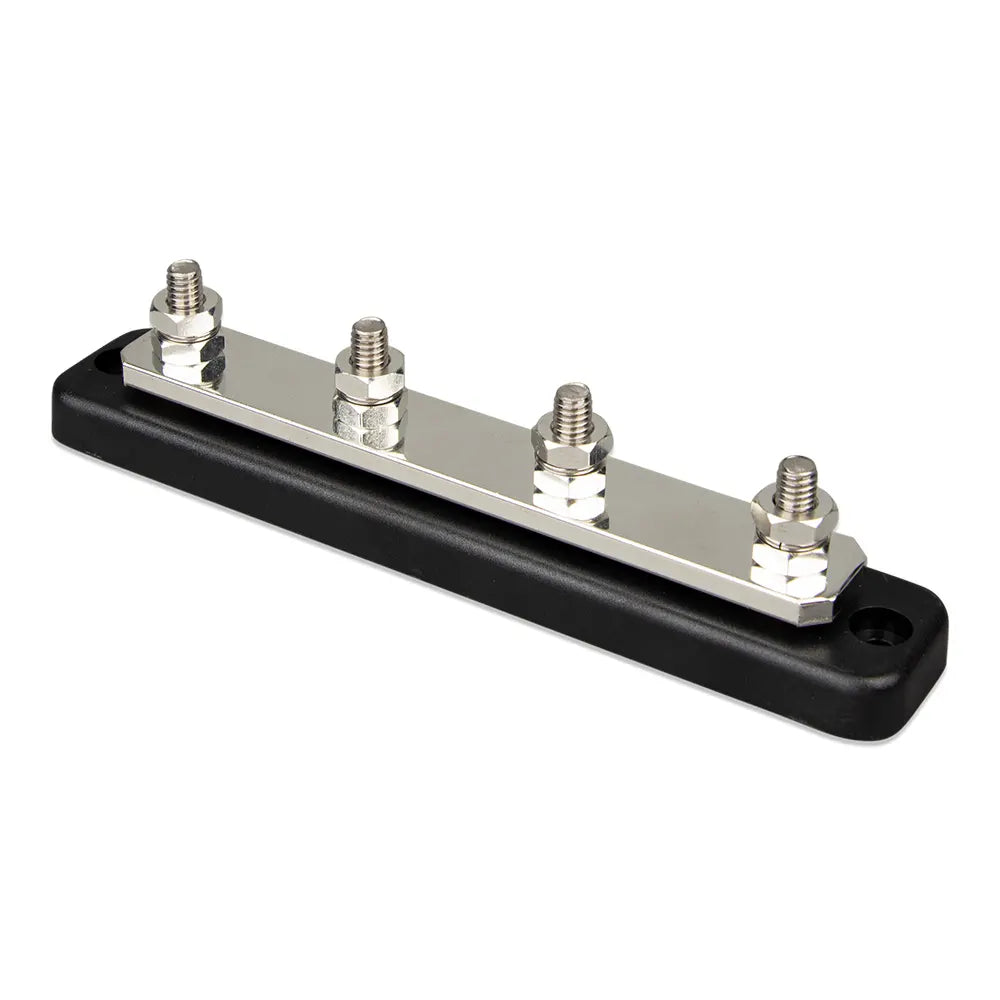

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
Specifications:
- Max. Current: 600 A
- Max. Voltage: 70 VDC
- Terminal Diameter: 3/8 inch / 9.53 mm
- Terminal Height: 0.76 inch / 19 mm
- Terminal Material: Stainless Steel
- Flange Nut Material: Stainless Steel
- Recommended Torque (Main Terminals): 180 lbf·in / 20 N·m
- Screw Terminals Diameter: #8 (0.164 inch) / 4.2 mm
- Screw Material: Stainless Steel
- Recommended Torque (Screws): 17 lbf·in / 2 N·m
- Busbar Material: Tin-Plated Copper (19 × 24 mm)
- Base Material: ABS, Black, UL 94 V-0
- Cover Material: ABS, Black, UL 94 V-2
- Weight (4 Terminals): 1.7 lb / 0.75 kg
- Dimensions (4 Terminals, with cover): 2.6 × 8.5 × 3.4 inch (65 × 216 × 86 mm)
- Weight (8 Terminals): 2.9 lb / 1.3 kg
- Dimensions (8 Terminals, with cover): 2.6 × 12.9 × 3.4 inch (65 × 327 × 86 mm)
