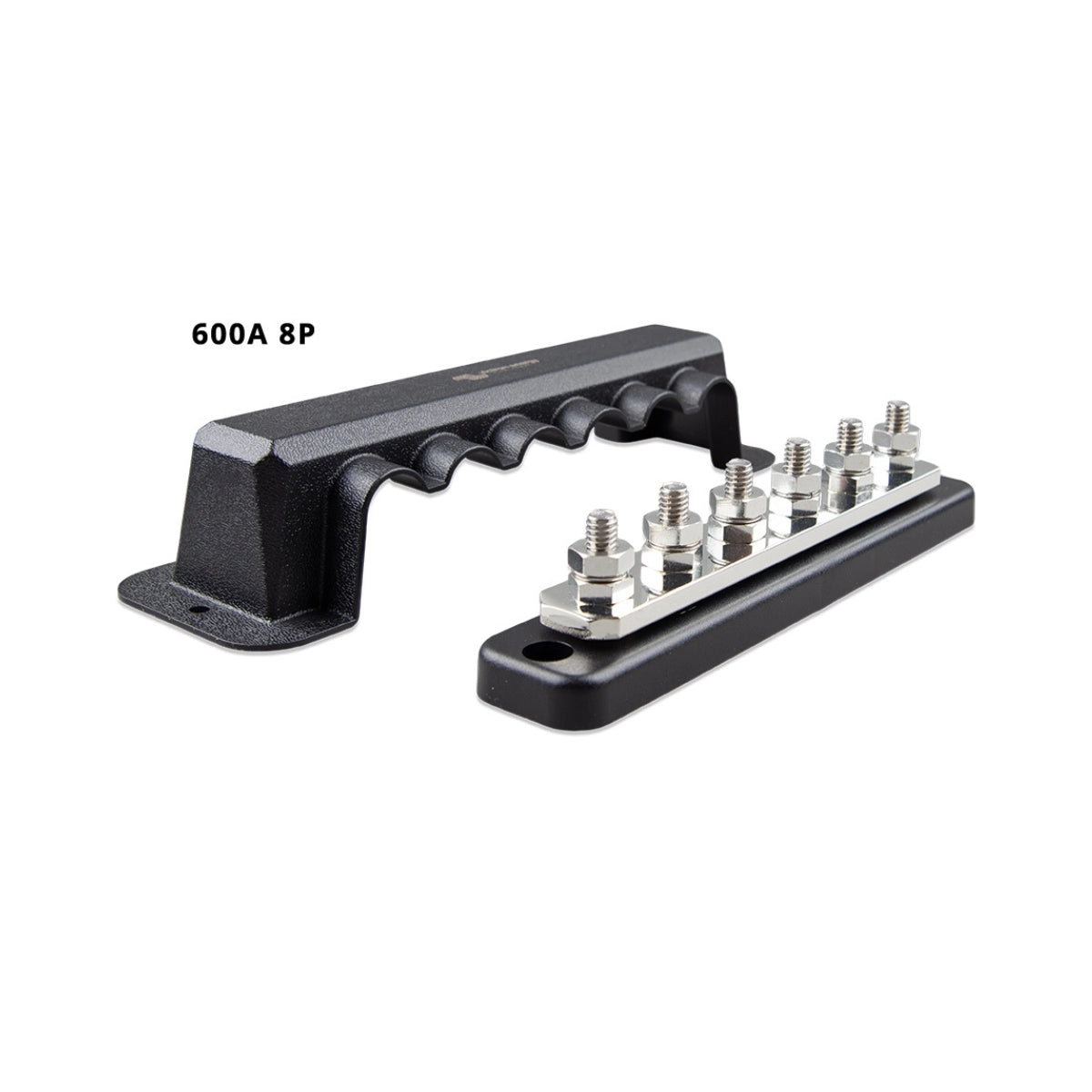

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
Specifications:
- Max. current: 600 A
- Max. Voltage: 70 VDC
- Terminal diameter: 3/8 inch / 9.53 mm
- Terminal height: 0.76 inch / 19 mm
- Terminal material: Stainless steel
- Flange nut material: Stainless steel
- Recommended torque: 17 lbf-inch / 2 N·m
- Screw terminals: diameter #8 (0.164 inch) / 4.2 mm
- Screw material: Stainless steel
- Busbar strip material: Tin-plated copper (19 x 24 mm)
- Base material: ABS, black, UL 94 V-0
- Cover material: ABS, black, UL 94 V-2
- Weight, 4 terminals: 1.7 lb / 0.75 kg
- Dimensions (HxWxD) (with cover): 2.6 x 8.5 x 3.4 inch 65 x 216 x 86 mm
- Weight, 8 terminals : 2.9 lb / 1.3 kg
- Dimensions (HxWxD) (with cover): 2.6 x 12.9 x 3.4 inch 65 x 327 x 86 mm
