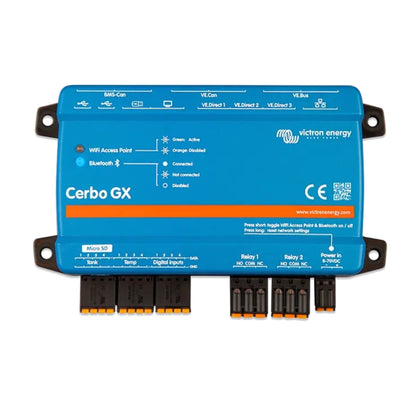

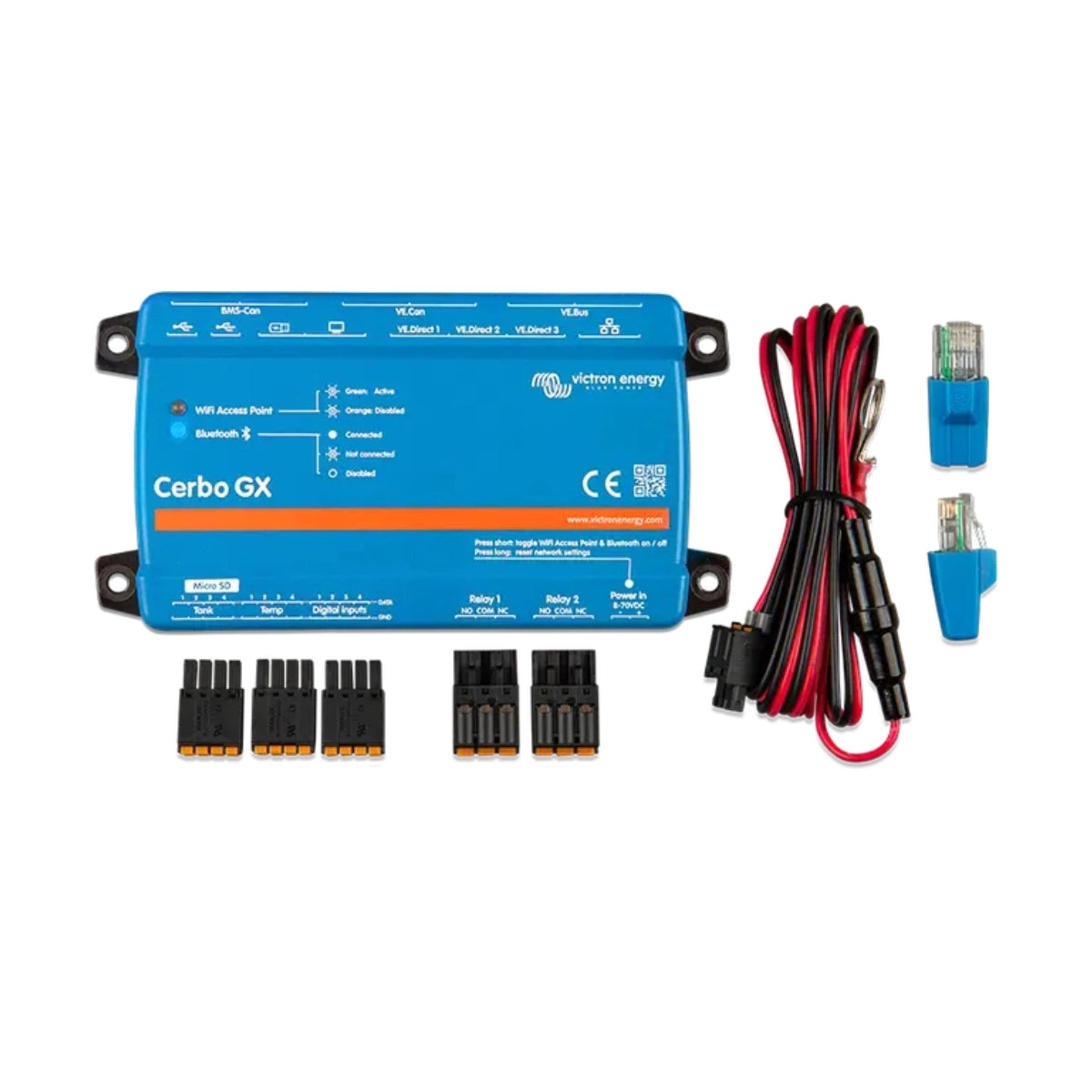

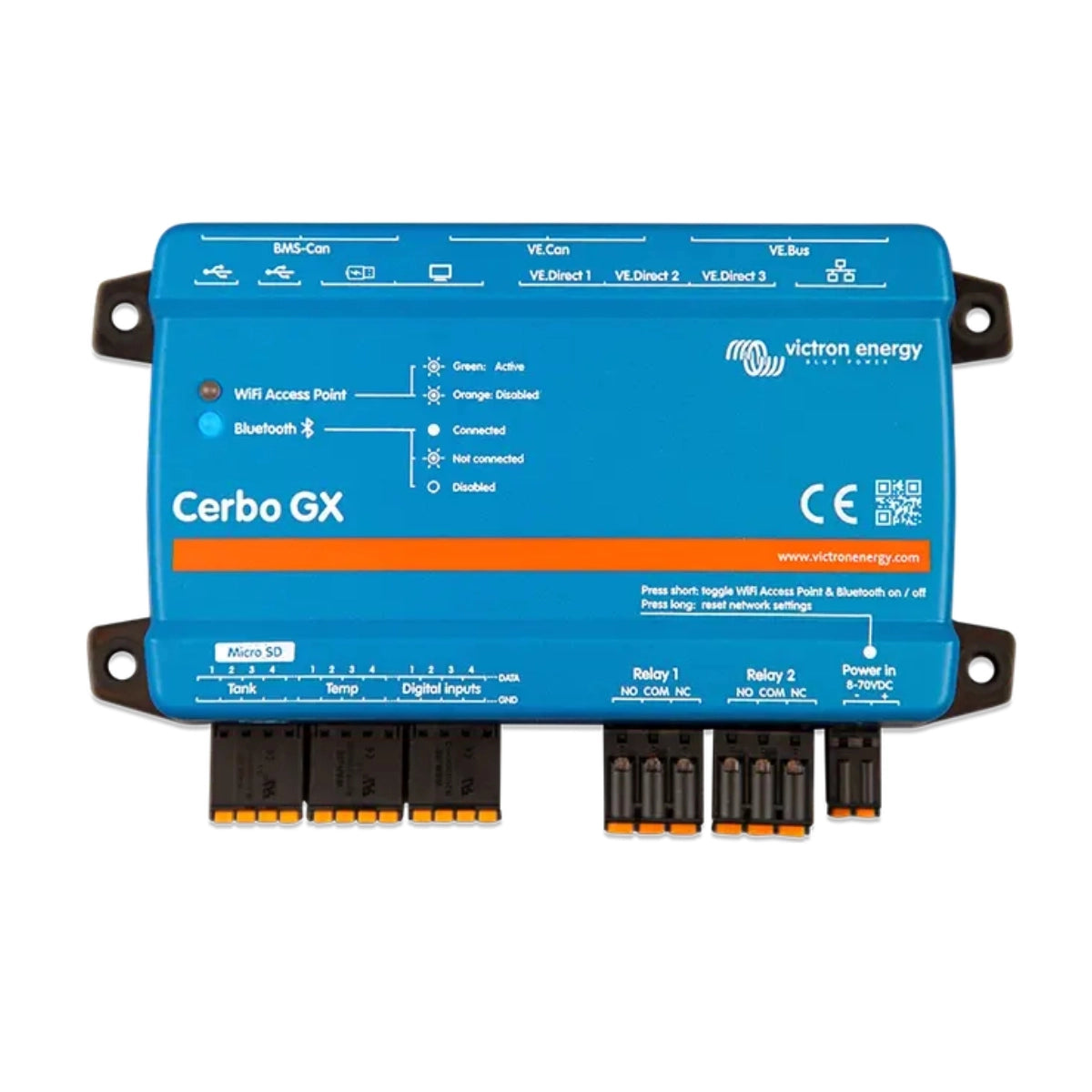

The Cerbo GX is a powerful communication hub that lets you monitor and control your Victron system in real time—from anywhere. With flexible connectivity, it's the perfect link between your devices, the VictronConnect app, and the VRM portal.
Features:
- Complete System Control: Monitor and control your entire Victron system remotely via the VRM portal, VictronConnect app (Bluetooth), or locally with a GX Touch display.

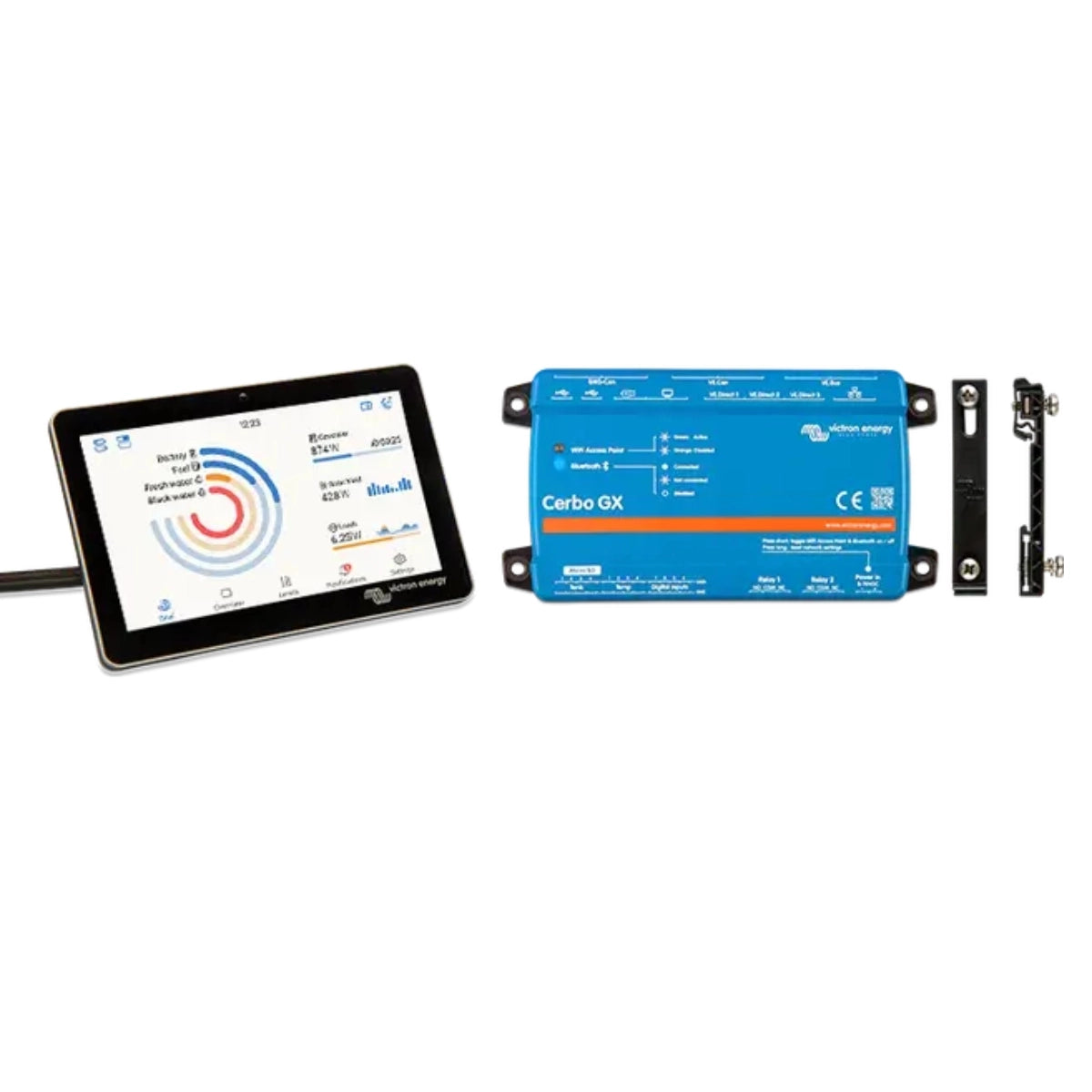

- GX Touch Display Compatibility: Available in 5" and 7" models, both flush and surface mount. Easy one-cable connection, waterproof, and includes a UV-protective cover (non-flush versions only).
- Remote Console: Access and configure the Cerbo GX from anywhere—just like being on-site—via LAN, WiFi AP, or the internet.
- Comprehensive Monitoring: Track battery charge, PV power, generator/mains usage, tank levels, temperatures, and more.
- Easy Installation: Quick DIN-rail mounting (adapter sold separately) and simple dashboard integration with minimal cabling.
- Smart Configuration: Use the VictronConnect app for fast setup via Bluetooth.
Specifications:
- Supply Voltage: 8 – 70 VDC
- Power Consumption (at 12 V):
- Without GX Touch: 2.8 W
- With GX Touch (Backlight Off): 3.8 W
- With GX Touch (Backlight Max): 4.8 W
- Mounting Options:
- Wall mount
- DIN rail (35 mm)
- Communication Ports:
- 3 x VE.Direct ports (isolated; supports up to 15 devices)
- 2 x VE.Bus (paralleled RJ45 sockets, isolated)
- VE.Can - non isolated
- 1 x BMS-Can (BMS-Can only)
- Connectivity:
- Bluetooth (built-in)
- WiFi (built-in)
- Ethernet: 10/100 Mbps RJ45 socket (isolated except shield)
- USB: 2 x USB Host ports + 1 x Power-only USB port
- Inputs & Outputs:
- 4 x Resistive tank level inputs
- 4 x Temperature sensor inputs
- 4 x Digital inputs
- 2 x Relays (NO/NC):
- Up to 30 VDC: 6 A
- Up to 70 VDC: 1 A
- Up to 125 VAC: 6 A
- Physical:
- Dimensions (H x W x D): 78 x 154 x 48 mm
- Operating Temperature: -20 °C to +50 °C
- IP Rating: IP20
- Certifications & Standards:
- Safety: IEC 62368-1
- EMC: EN 301489-1, EN 301489-17
- Automotive: ECE R10-6
