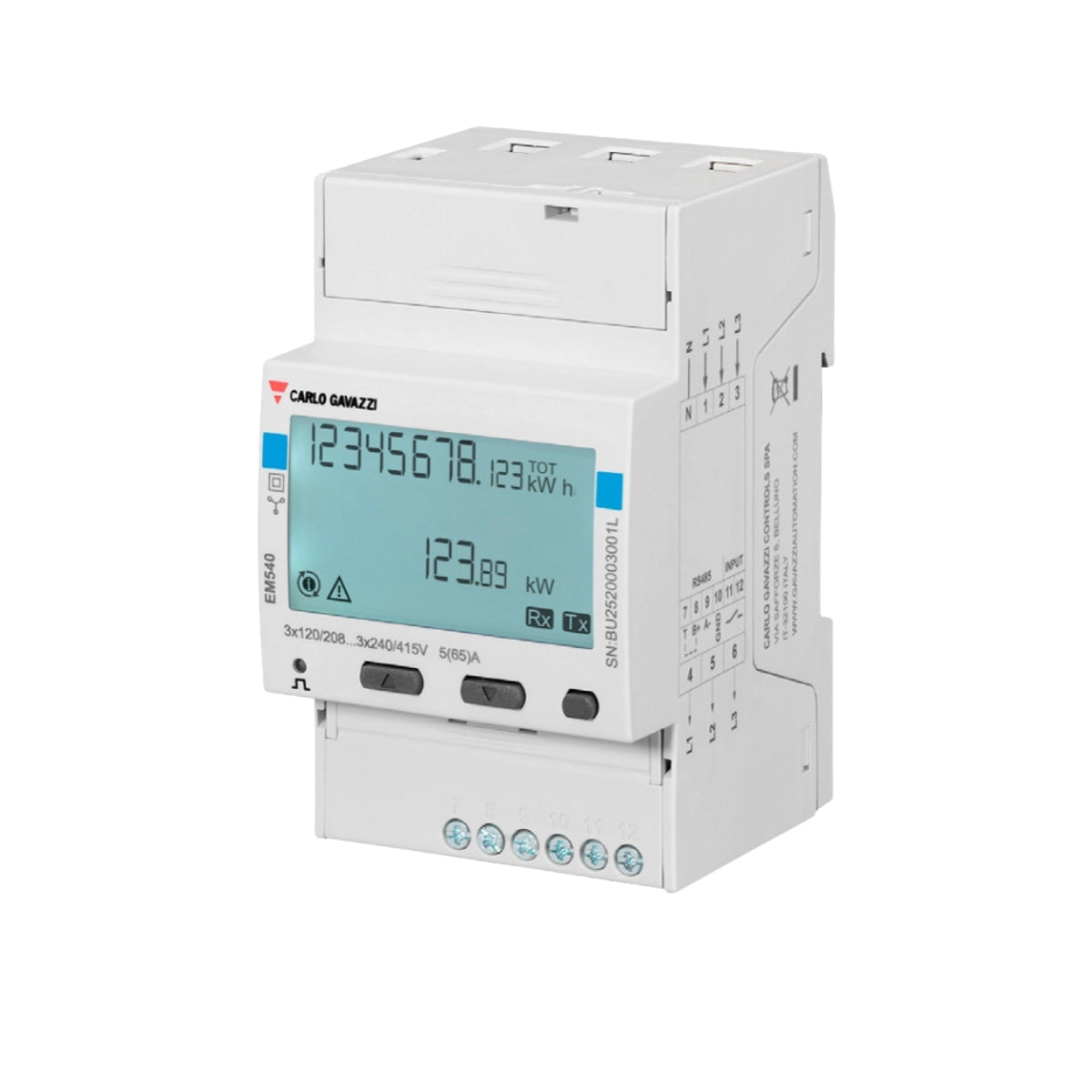

The Victron EM540 is a standard device to measure the power and energy of a 3-phase application.
Features:
- Configurable for four roles with a GX device:
- Grid meter for ESS control
- PV inverter output monitoring
- AC generator output monitoring
- Dedicated AC load measurement
- Wired connection via RS485 to USB interface (1.8m or 5m cable)
- Wireless connection via Zigbee to USB and Zigbee to RS485 converter
- Compatible with Victron GX devices like the Cerbo GX
Specifications:
- Product Name: EM540
- Part Number: REL200100100
- Display: LCD
- Phases: 3
- Max Current Rating: 65A per phase
- Measurement Type: Direct/Shunt
- Communication: RS485
- Refresh Rate: 100ms
-
Remarks: EM540DINAV23XS1X
