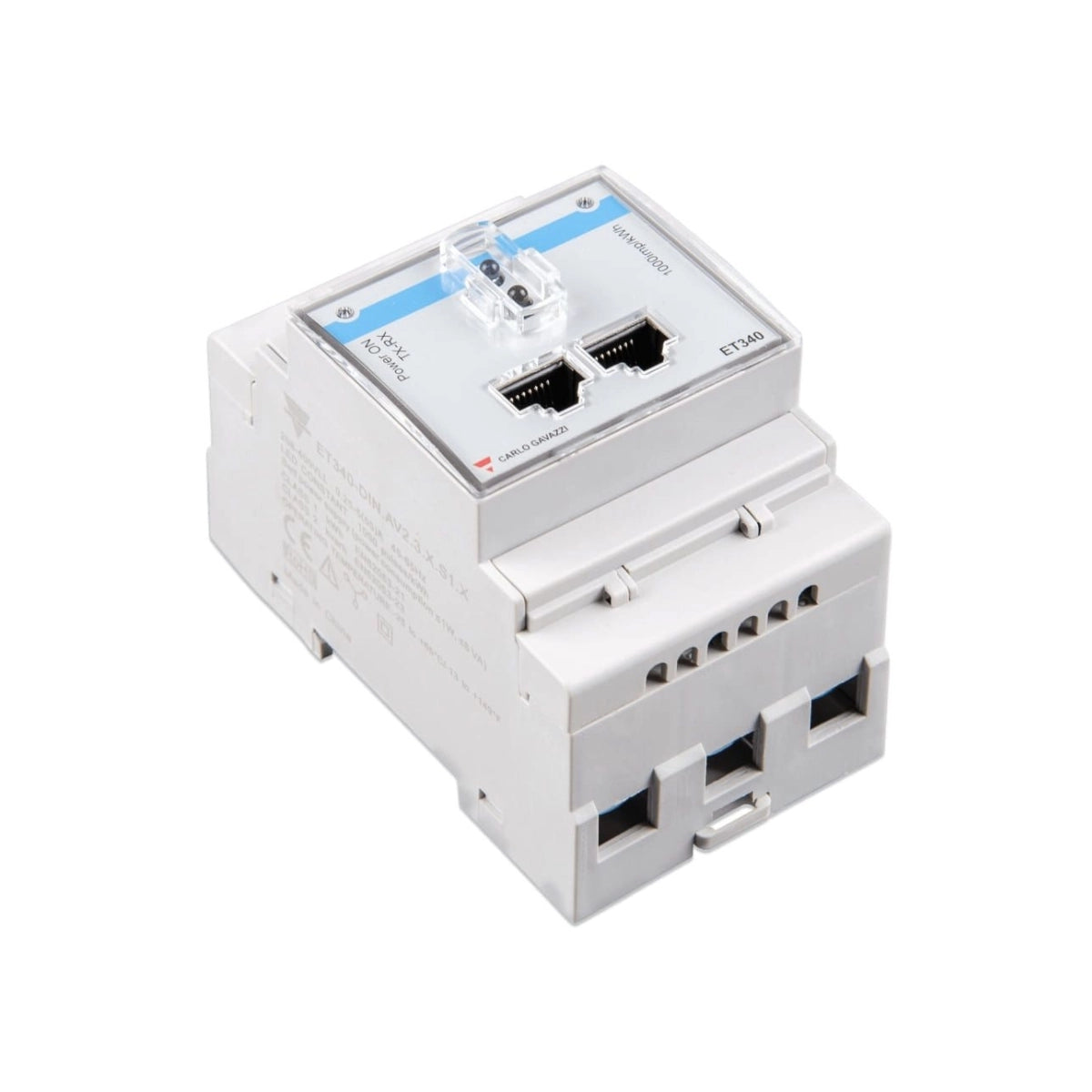

The Victron ET340 is a standard device to measure the power and energy of a 3-phase application.
Features:
- Configurable for four different roles in a GX device such as the Cerbo GX:
- Grid meter for ESS system control input
- PV inverter output measurement
- AC generator (Genset) output measurement
- AC meter for dedicated load circuit
- Two connection options to a GX device:
- Wired: RS485 to USB interface (available in 1.8m or 5m cable lengths)
-
Wireless: Zigbee to USB and Zigbee to RS485 converter
Specifications:
- Product Name: ET340
- Part Number: REL300300000
- Display: No
- Phases: 3
- Max Current Rating: 65A per phase
- Measurement Type: Direct/Shunt
- Communication: RS485
- Refresh Rate: 2000ms
-
Remarks: ET340DINAV23XS1X
