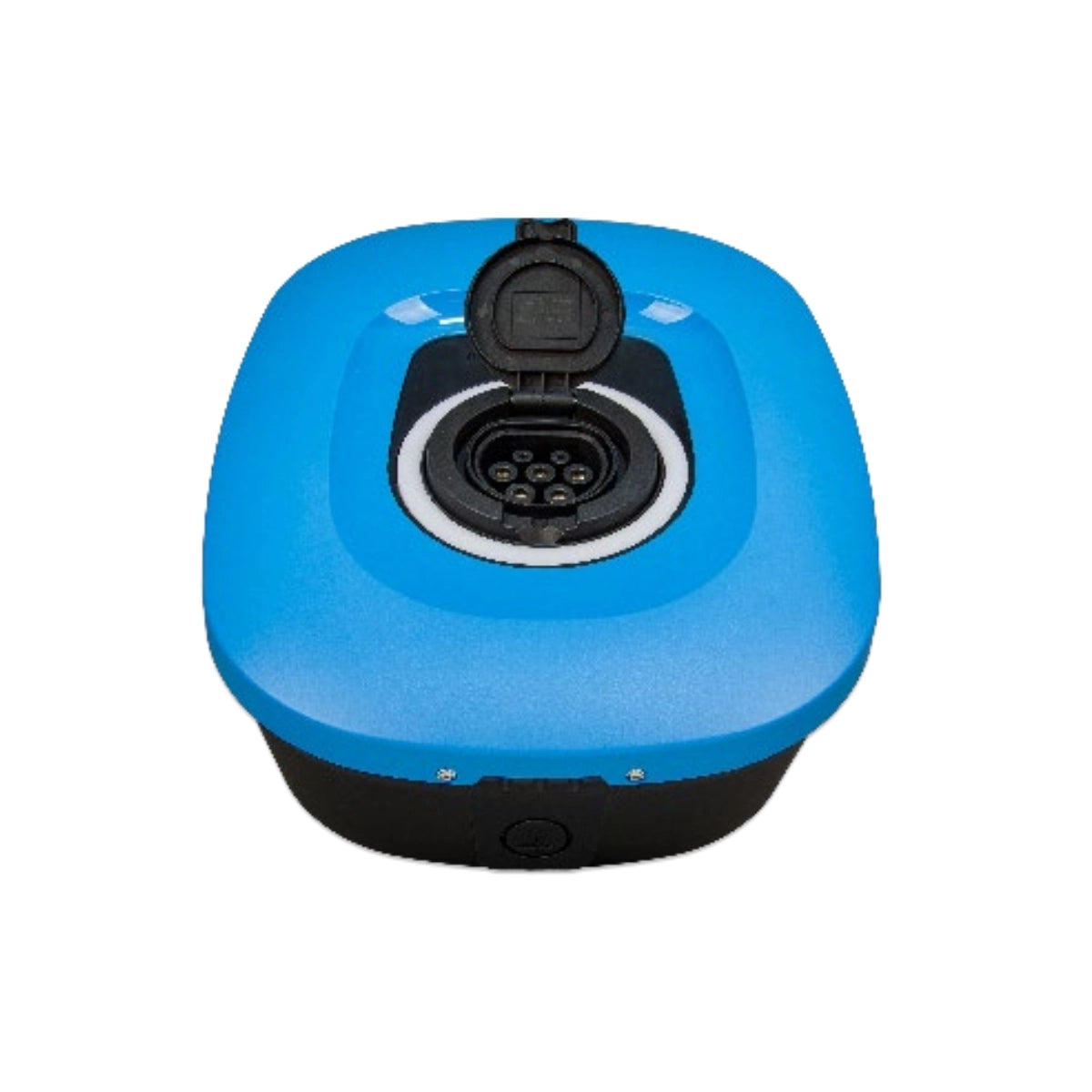

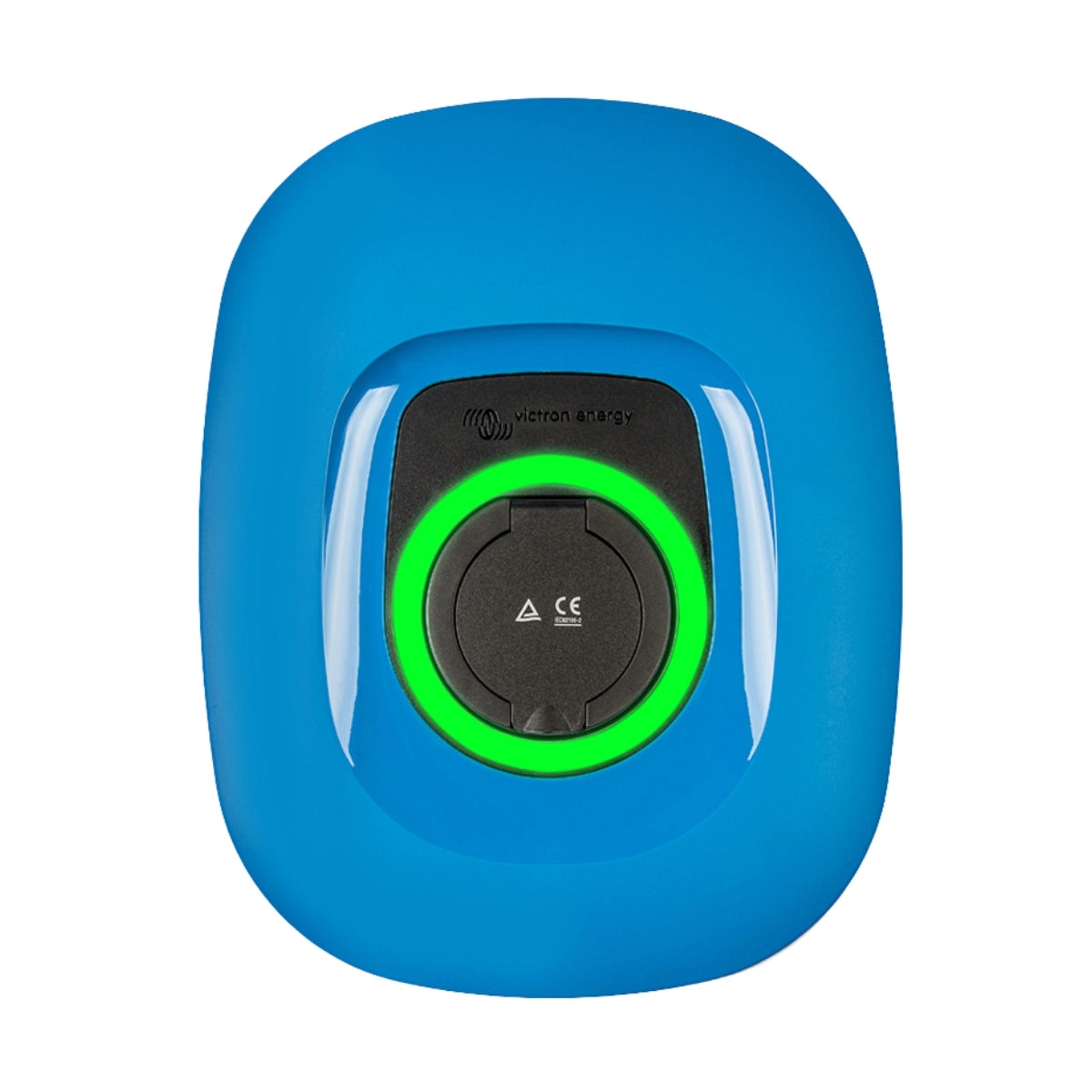

The EV Charging Station NS is a high-performance AC EV charger designed for residential, commercial, or solar-integrated setups. Supporting both three-phase and single-phase configurations, it delivers up to 22 kW in three-phase mode and 7.3 kW in single-phase, ensuring efficient and flexible electric vehicle charging. Featuring WiFi and Bluetooth connectivity, full integration with Victron systems, and three intelligent charging modes—including PV optimization—the EV Charging Station NS offers advanced control, scheduling, and monitoring. The sleek blue front panel is standard, with optional black or white covers sold separately.
Product Features:
- High Power Output: Up to 22 kW (three-phase) or 7.3 kW (single-phase)
- Smart Charging Modes: Manual, Automatic (PV-optimized), and Scheduled
- WiFi & Bluetooth Control: Easy setup and monitoring via VictronConnect App
- Programmable Light Ring: Displays charging status at a glance
- Full System Integration: Works with Victron GX devices and VRM Portal
- Customisable Look: Comes with blue front; black or white sold separately
Specifications:
- Weight: - 42 kg
- Length: - 0.68 m
- Rated Power: - 4,000 W
- Min PPT Voltage: - 49 V
- Max PPT Voltage: - 250 V
- DC Startup Voltage:- 49 V
- DC Shutdown Voltage: - 48 V
- Max Input Voltage: - 250 V
- Max DC Power: - 5,800 W
- Max AC Power (5 Minutes): - 4,400 W
- Surge AC Power (1 Second): - 9,000 W
- Max DC Current: - 60 A
- Max DC Inputs: - 1
- Has DC Fuses: - 0
- Connector: - Round Post
- Included Connectors: - 1
- Euro Efficiency: - 92 %
- Transformer: - HF
- IP Rating: - IP22
- MPPT Quantity : - 1
- Has Integrated DC Switch: - No
- Warranty: - 5 years
