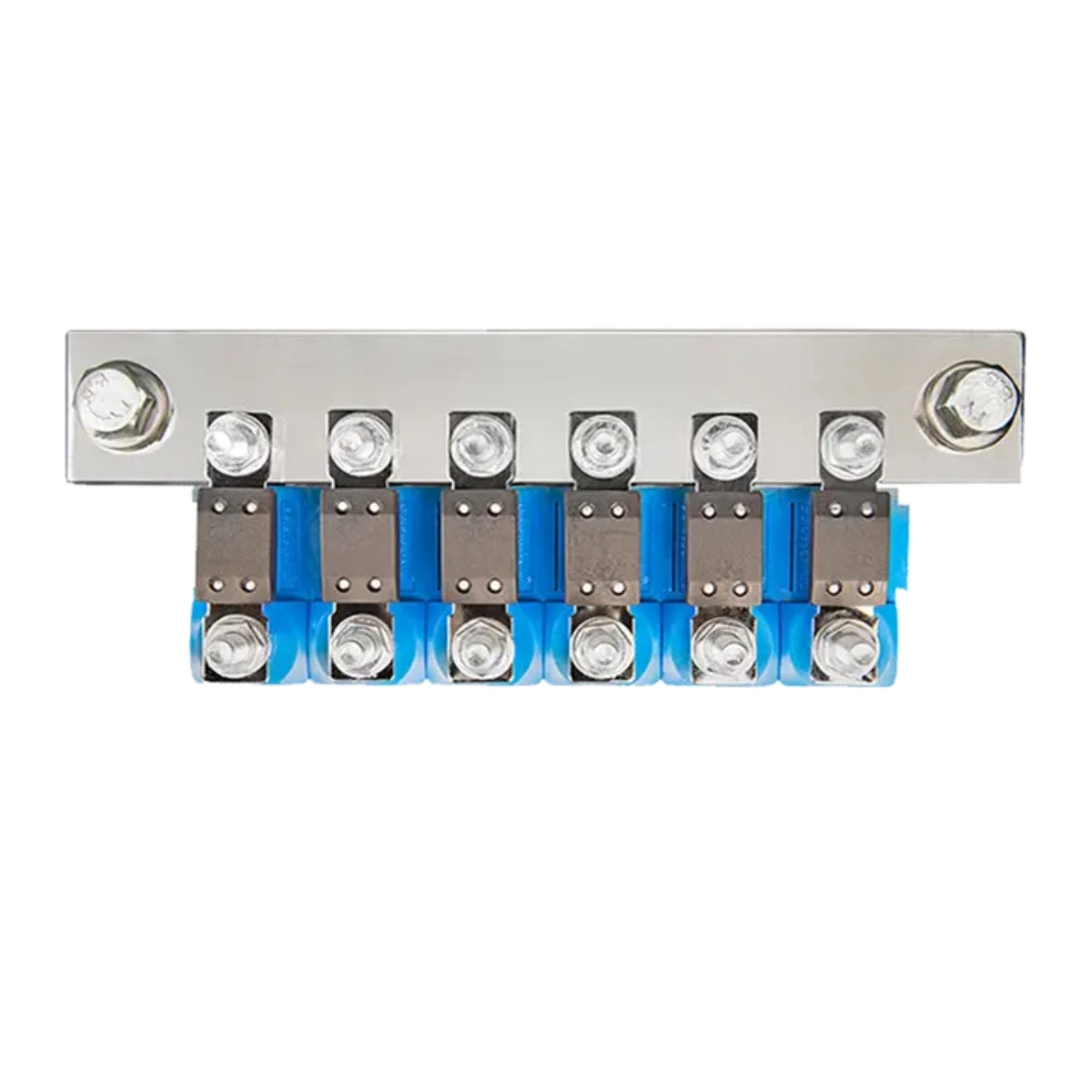

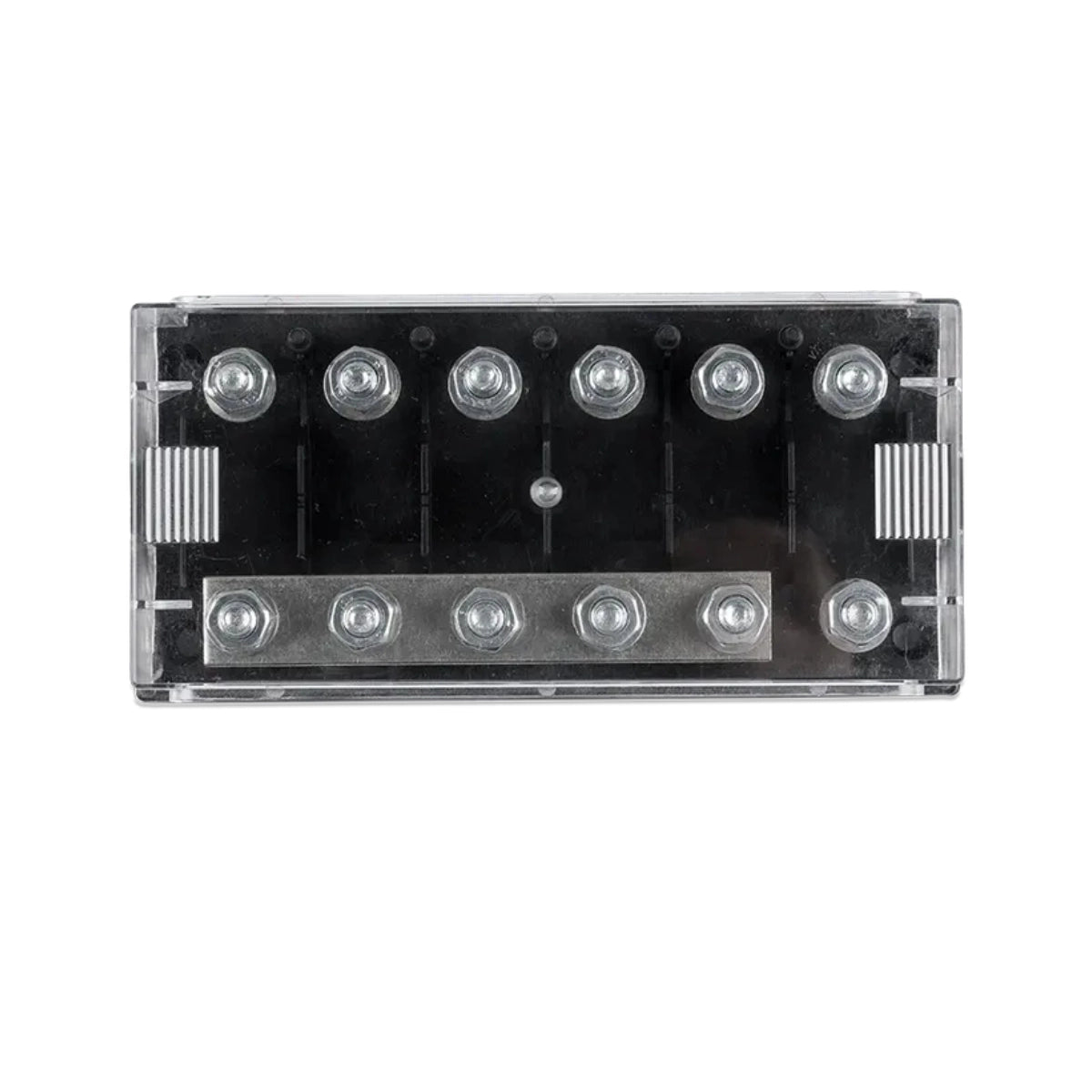

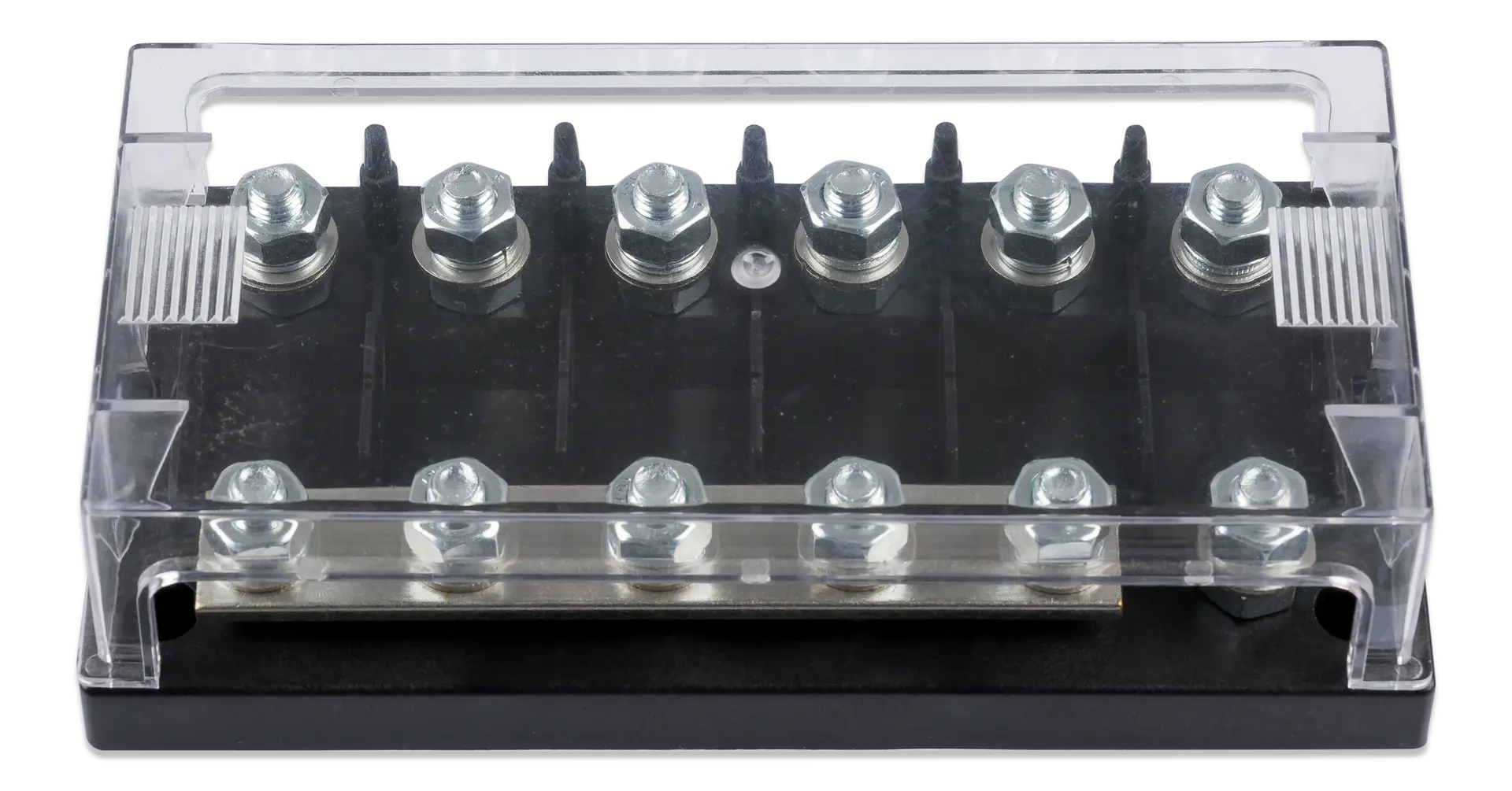

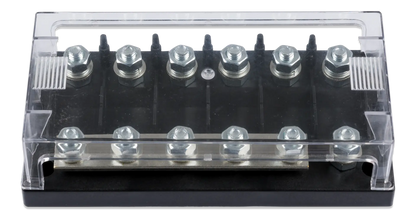

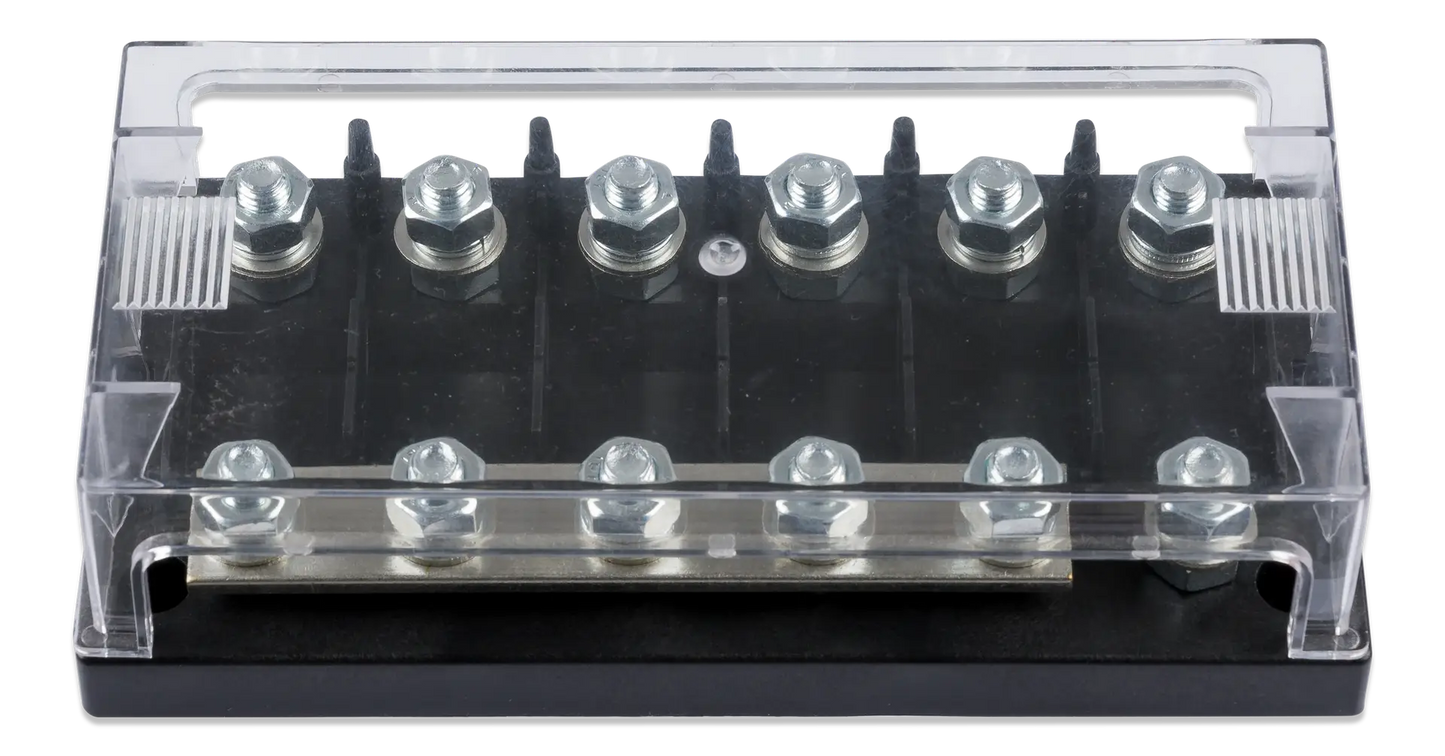

The Victron 6-way Fuse Holder for MEGA fuses is a high-capacity solution designed to safely distribute and protect multiple DC circuits. It accommodates up to six MEGA fuses in a single, compact unit, making it ideal for complex power systems where organized and efficient fuse management is required. Built for durability and ease of installation, this fuse holder is a reliable component in any high-current distribution setup.
Features:
- Holds up to 6 MEGA fuses in one unit
- Suitable for high-current DC applications
- Provides centralized fuse management
- Compact and durable design for space-saving installations
- Ensures safe and efficient power distribution
- Compatible with standard MEGA fuses
- Ideal for use in marine, automotive, and solar power systems
- Clear cover included for added protection and visibility
- Part of Victron’s modular DC protection solutions
Specifications:
- Maximum Current: 250 A
- Maximum Voltage: 70 VDC
- Terminal Diameter: 5/16 inch / 8 mm
- Terminal Height: 0.67 inch / 14 mm
- Terminal Material: Galvanised steel
- Hex Nut Material: Galvanised steel
- Recommended Torque: 60 lbf·inch / 7 N·m
- Busbar Strip Material: Tin-plated copper (3 x 18 mm)
- Base Material: ABS, black, UL 94 V-0
- Cover Material: Clear polycarbonate, UL 94 HB
- Weight: 1 lb / 0.45 kg
-
Dimensions (with cover):
- 2.0 x 7.2 x 3.5 inch
- 50.9 x 181.5 x 88 mm
