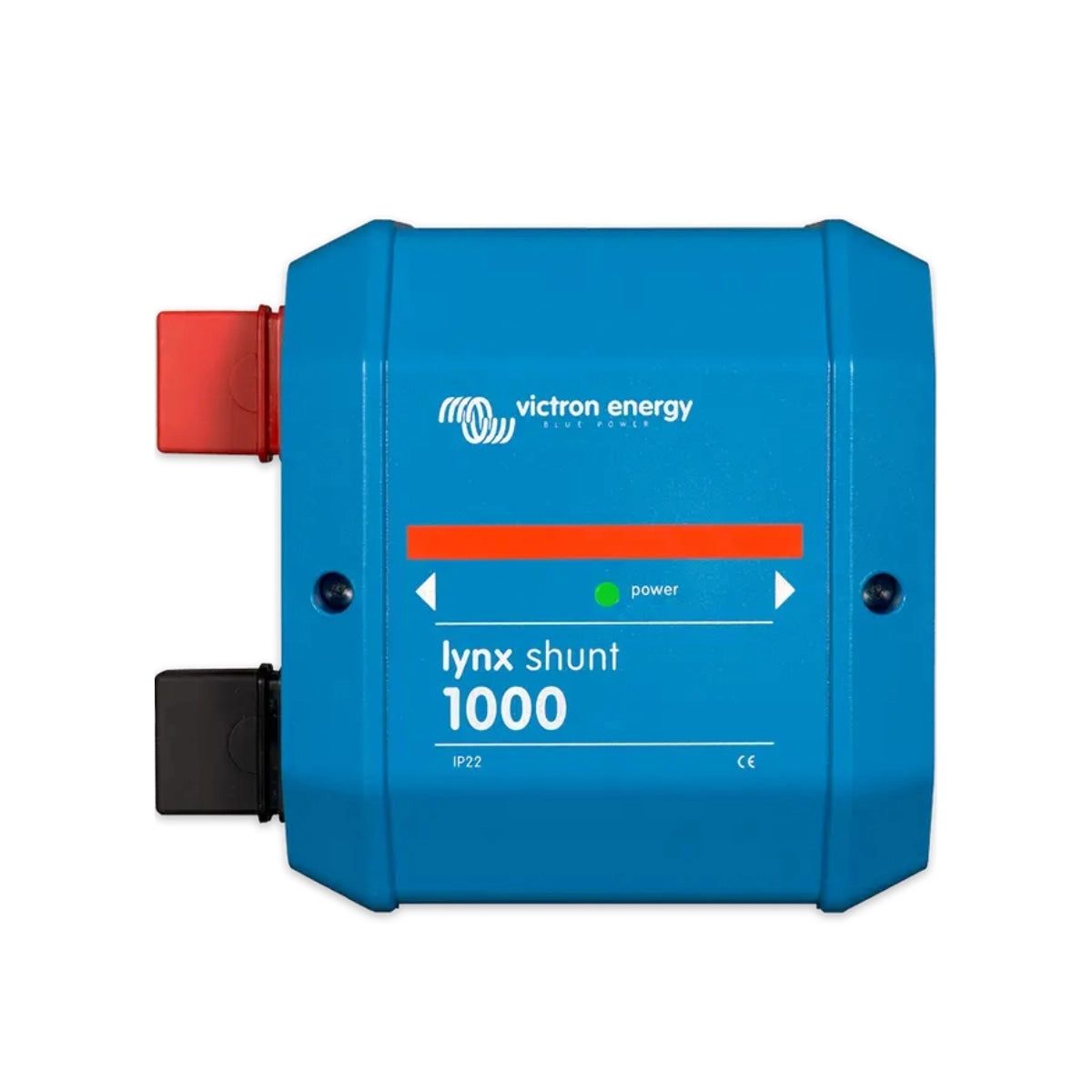

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.
Specifications:
Power
- Supply Voltage Range: 9 – 70 VDC
- Supported System Voltages: 12V / 24V / 48V
- Reverse Polarity Protection: No
- Current Rating: 1000A DC continuous
- Power Consumption: 60 mA @ 12V, 33 mA @ 24V, 20 mA @ 48V
- Potential-Free Alarm Contact: 3A, 30VDC / 250VAC
Connections
- Busbar: M8
- Fuse: M8
- Dummy Busbar: Not included
- VE.Can: RJ45 (includes two RJ45 terminators)
- Power Supply Connection to Lynx Distributor: RJ10 (cables included with each Lynx Distributor)
- Temperature Sensor: Screw terminal (sensor included)
- Relay: Screw terminal
Physical
- Enclosure Material: ABS
- Dimensions (H x W x D): 190 x 180 x 80 mm
- Unit Weight: 1.4 kg
- Busbar Material: Tinned copper
- Busbar Dimensions (H x W): 8 x 30 mm
Environmental
- Operating Temperature Range: -40°C to +60°C
- Storage Temperature Range: -40°C to +60°C
- Humidity: Max 95% (non-condensing)
- Protection Class: IP22
