Victron MultiPlus 48/1600/20-16 230V VE.Bus

The Victron MultiPlus 48/1600/20-16 230V VE.Bus is a powerful and space-saving energy solution that combines a pure sine wave inverter, intelligent adaptive battery charger, and fast AC transfer switch in one compact unit. Engineered for reliable performance and efficient power management, it’s well-suited for off-grid systems, mobile applications, or backup setups where both durability and functionality are crucial.

Features:

  • True sine wave inverter, adaptive battery charger, and AC transfer switch in one unit.
  • Supports up to 6 units in parallel or 3-phase configuration.
  • PowerControl prevents generator or shore overload by managing power use.
  • PowerAssist boosts limited shore/generator power with battery support during peaks.
  • Four-stage adaptive charging for Lithium, AGM, Gel, and Flooded batteries.
  • Dual battery charging for starter or auxiliary batteries.
  • High start-up power for heavy loads like LED lamps and power tools.
  • Search Mode reduces power consumption during low/no load.
  • Programmable alarm relay and remote on/off control.
  • Easy on-site setup with DIP switches; advanced remote monitoring via GX devices and VRM portal.

PRODUCT SPECIFICATIONS

- Input voltage range: 38– 66V
- Output voltage: 230 VAC ± 2%
- Output frequency: 50 Hz ± 0.1%
- Continuous output power at 25 °C: 1600VA (1300W)
- Continuous output power at 40 °C: 1100W
- Continuous output power at 65 °C: 800W
- Peak power: 2800W
- Maximum efficiency: 95%
- Zero-load power consumption: 10W
- Zero-load power in search mode: 3W

Charger
- Input voltage range: 187 – 265 VAC
- Input frequency: 45 – 65 Hz
- Charge voltage (absorption): 57,6V
- Charge voltage (float): 55,2V
- Storage mode voltage: 52,8V
- Charge current (house battery): 20A
- Charge current (starter battery): 1 A (only for 12 V and 24 V models)
- Battery temperature sensor: Yes

General
- Programmable relay: Yes
- Protection: a – g (various protections including output short circuit, battery voltage, temperature, etc.)
- VE.Bus communication port: Yes (for parallel and three phase operation, remote monitoring, system integration)
- Remote on/off: On/off/charger only
- DIP switches: Yes
- Internal DC fuse: 60A

Common Characteristics
- Operating temperature range: -40 to +65 °C (fan assisted cooling)
- Humidity: Max 95% (non-condensing)

Enclosure
- Material & Color: Steel/ABS, Blue RAL 5012
- Protection category: IP21
- Battery connection: 16mm²
- 230 VAC connection: G-ST18i connector
- Weight: 10.2 kg
- Dimensions (H x W x D): 470 x 265 x 120 mm

Standards
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
- Emission Immunity: EN 55014-1, EN 55014-2, IEC 61000 series
- Automotive Directive: ECE R10-5

IMPORTANT NOTICE

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

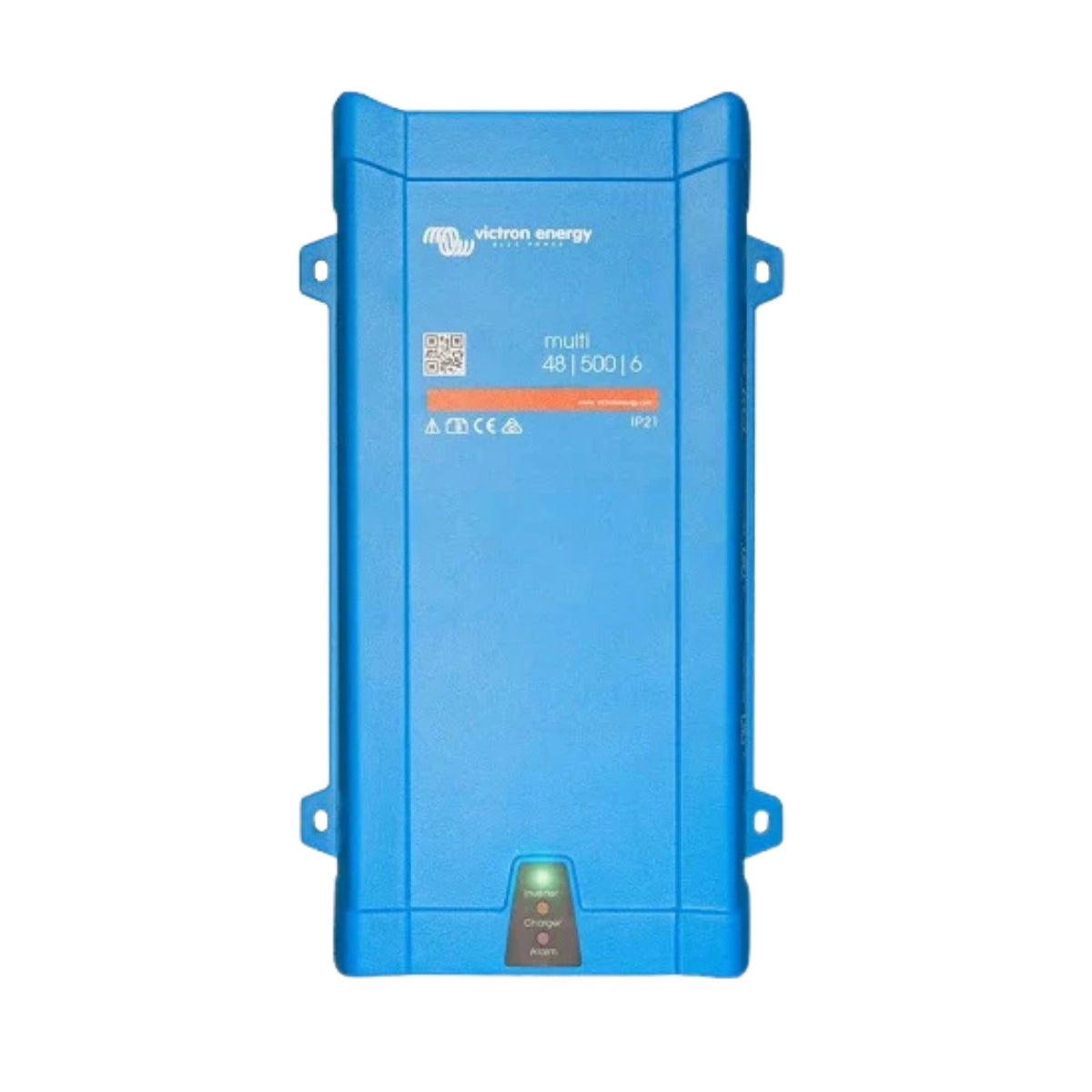

The images shown are for illustration purposes only and may not be an exact representation of the product.
