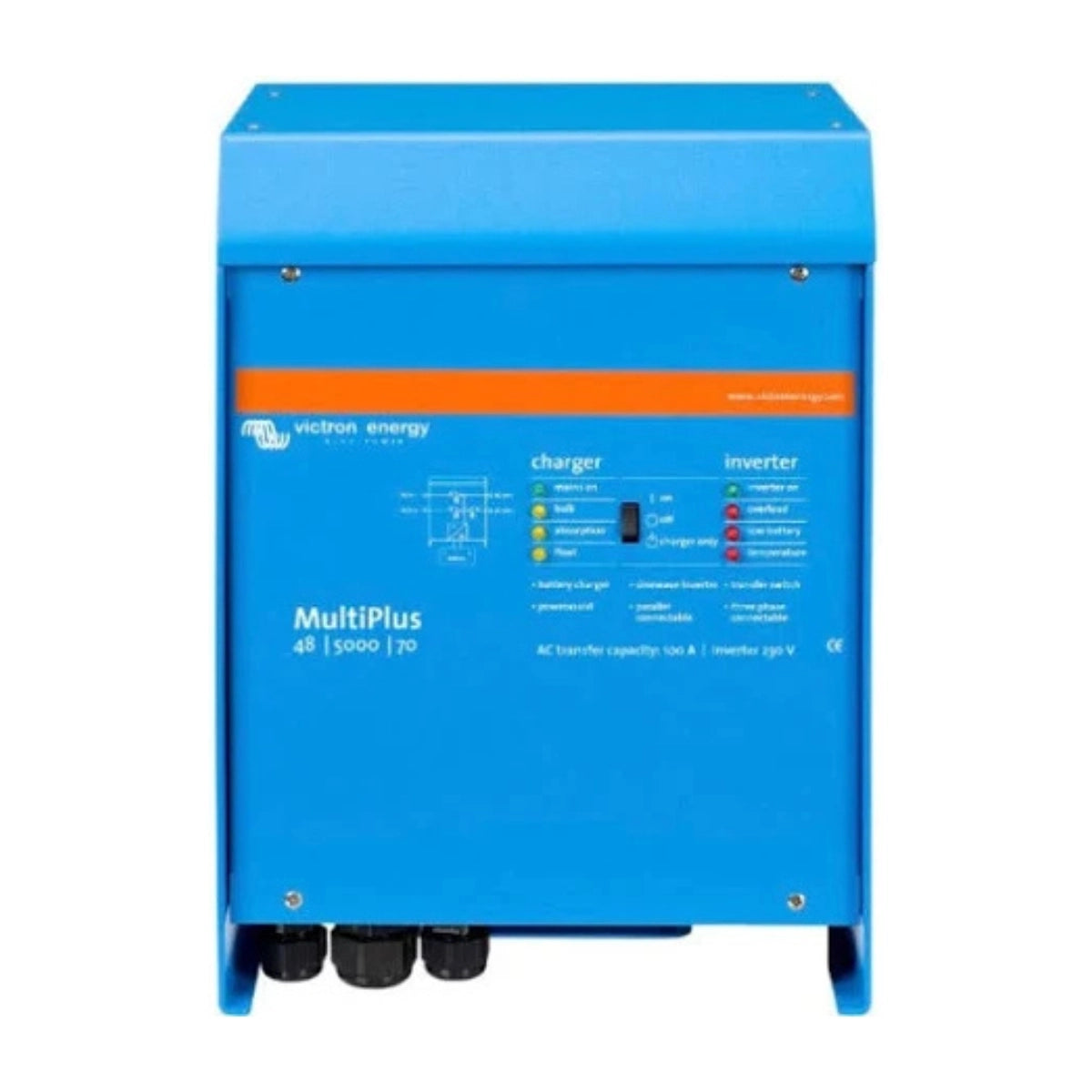

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
Features:
- Two AC Outputs: Seamless switchover to inverter power in under 20ms; second output powers only when AC input is available.
- PowerControl: Prevents generator/shore overload by automatically managing power usage.
- PowerAssist: Boosts limited shore or generator power with battery support during high demand.
- Parallel Operation: Connect up to 6 units for increased power output.
- Three-Phase Support: Configure three identical units for 3-phase output; scalable with multiple sets.
- Advanced Battery Charging: Adaptive 4-stage charging for Lithium, AGM, Gel, and Flooded batteries.
- Smart Monitoring: Supports GX devices and VRM Portal for intuitive system control and remote monitoring.
- Off-Grid Ready: Suitable for standalone, grid-connected, or hybrid solar systems.
- Fast Transfer Switch: Keeps electronics running during power loss without interruption.
-
Easy Configuration: DIP switches for quick setup; advanced software options for complex systems.
Specifications:
- Battery Voltage: 48 V
- PowerControl: Yes
- PowerAssist: Yes
- AC Input Voltage Range: 187–250 V
- Input Frequency: 50/60 Hz
- Power Factor (Cos Φ): > 0.8
- Transfer Switch Rating: 100 A
Inverter
- Input voltage range (VDC): 38 – 66 V
- Output voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1%
- Cont. output power at 25°C (VA): 5000 VA
- Cont. output power at 25°C (W): 4000 W
- Cont. output power at 40°C (W): 3700 W
- Cont. output power at 65°C (W): 3000 W
- Peak power (W): 10000 W
- Maximum continuous output current (A): 19A
- Maximum efficiency (%): 96%
- Zero load power in AES mode (W): 15
- Zero load power in Search mode (W): 5
- Power factor range: ±0.8
- Maximum output fault current: 53 A peak 1 sec.
Charger
- AC Input voltage range: 187–265 VAC
- AC Input frequency: 45 – 65 Hz
- Power factor: 1
- Charge voltage ‘absorption’ (VDC): 57.6 V
- Charge voltage ‘float’ (VDC): 55.2 V
- Storage mode (VDC): 52.8 V
- Charge current house battery (A): 70 A
- Charge current starter battery (A): 4 A (12 V and 24 V models only)
- Battery temperature sensor: Yes
General
- Remote on/off: Yes
- VE.Bus communication port: Yes (For parallel and three phase operation, remote monitoring, and system integration)
- Programmable relay: Yes
- Protection: a-g (multiple types)
- Operating temperature range: -40°C to +65°C (fan assisted cooling)
- Humidity: Max 95% non-condensing
- Maximum altitude: 2000 m
Enclosure
- Material & colour: Aluminium (blue RAL 5012)
- Protection category: IP20
- Pollution degree: 2
- Battery-connection: Four M8 bolts (2 plus and 2 minus connections)
- 230 VAC-connection: Screw terminals 13 mm² (6 AWG)
- Weight (kg): 30 kg
- Dimensions (h x w x d mm): 444 x 328 x 240 mm
Standards
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
- Emissions & Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, 3-3, 6-1, 6-2, 6-3
- Road Vehicles: ECE R10-4
