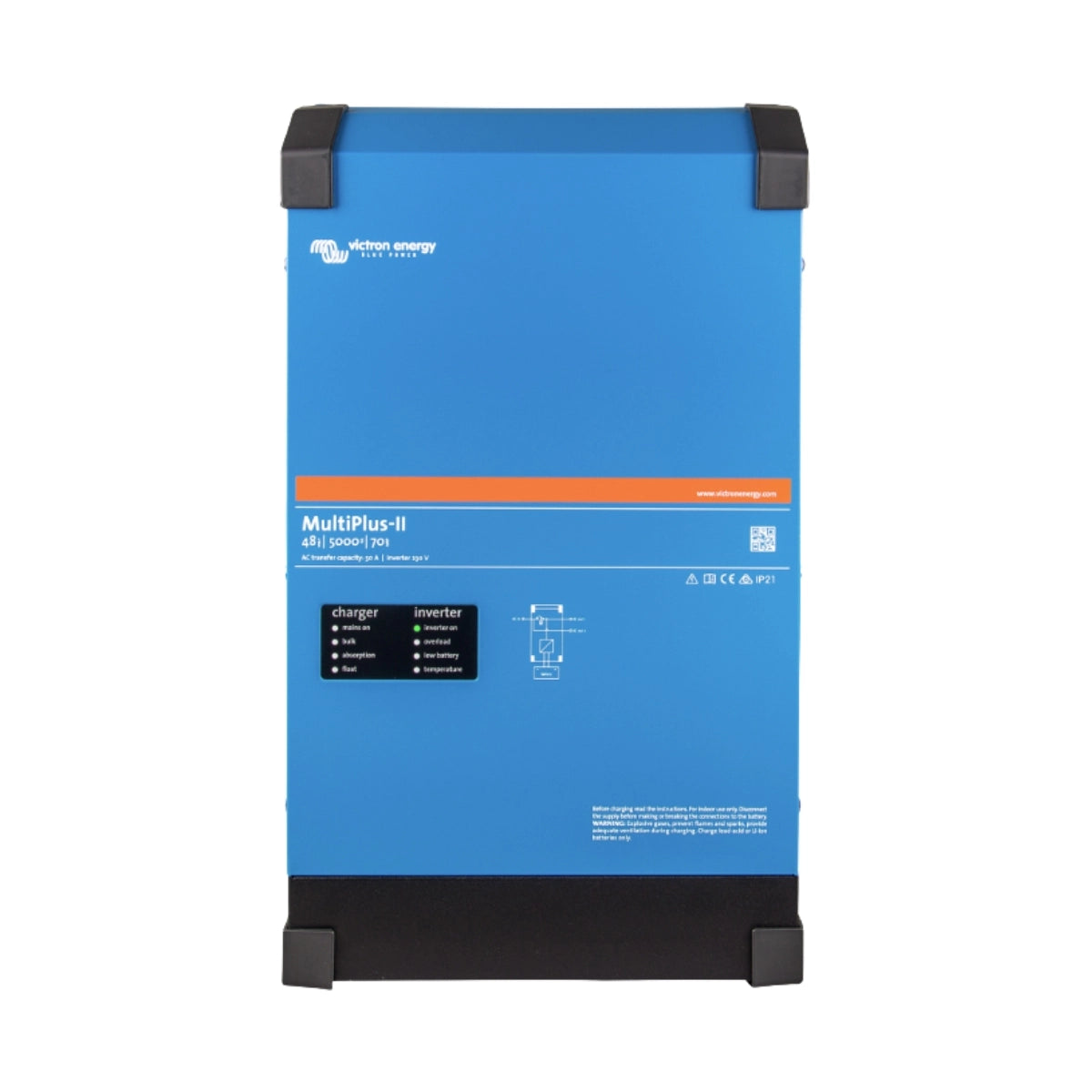

Victron MultiPlus-II 48/5000/70-50 230V

Victron MultiPlus-II 48/5000/70-50 230V

R 9,984.00
R 10,383.36 R 9,984.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Victron MultiPlus-II 48/5000/70-50 230V

The MultiPlus-II is a versatile inverter/charger that combines the capabilities of the MultiPlus and MultiGrid. It features advanced PowerControl and PowerAssist with external current sensing (up to 32A) to optimize energy use, plus built-in anti-islanding and broad country approvals for reliable, safe operation.

Features:

  • All-in-One ESS & Inverter/Charger – Combines MultiPlus functionality with Energy Storage System (ESS) capabilities and optional external current sensor (up to 50A/100A).
  • Wide Application Range – Suitable for professional marine, yachting, vehicle, and land-based off-grid installations.
  • Built-In Anti-Islanding – Complies with a growing list of country approvals for ESS applications.
  • PowerControl & PowerAssist – Limits input current to prevent overload and boosts power from batteries when demand exceeds grid/generator capacity.
  • Solar-Ready – Works with off-grid and grid-connected PV systems, compatible with solar charge controllers and grid-tie inverters.
  • Dual AC Outputs – Main output provides uninterrupted power; secondary output only active when AC input is available for non-critical loads.
  • Scalable Power – Parallel up to 6 units for increased output or configure 3 units for three-phase supply.
  • Advanced Configurations – Supports combinations of three-phase and parallel setups for high-capacity systems.
  • Flexible Monitoring – Local control via GX devices, Digital Multi Control Panel, or laptop; Bluetooth with VE.Bus Smart dongle.
  • Remote Management – Monitor, configure, and update settings via the free Victron Remote Management (VRM) portal.

PRODUCT SPECIFICATIONS

- PowerControl & PowerAssist: Yes
- Transfer switch: 50 A
- Maximum AC input current: 50 A

Inverter
- DC Input voltage range: 38–66 V
- Output voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0,1% (1)
- Cont. output power at 25°C: 5000 VA
- Cont. output power at 25°C: 4000 W
- Cont. output power at 40°C: 3700 W
- Cont. output power at 65°C: 3000 W
- Max. apparent feed-in power: 5000 VA
- Peak power: 9000 W
- Maximum efficiency: 96%
- Zero load power: 18 W
- Zero load power in AES mode: 12 W
- Zero load power in Search mode: 3 W

Charger
- AC Input voltage range: 187–265 VAC
- Input frequency: 45 – 65 Hz
- Charge voltage 'absorption': 57,6 V
- Charge voltage 'float': 55,2 V
- Storage mode: 52,8 V
- Max. battery charge current: 70 A

General
- Auxiliary output: Yes (32 A)
- Programmable relay: Yes
- Protection: a–g
- VE.Bus communication port: For parallel and three-phase - operation, remote monitoring and system integration
- General purpose com. port: Yes
- Remote on-off: Yes
- Operating temperature range: -40 to +65°C (fan assisted cooling)
- Humidity (non-condensing): max 95%
- Maximum altitude: 2000 m

Enclosure
- Material & Colour: Steel, blue RAL 5012
- Protection category: IP22
- Battery-connection: Two M8 bolts
- 230 V AC-connection: Screw terminals 13 mm² (6 AWG)
- Weight: 30 kg
- Dimensions (h x w x d): 444 x 328 x 240 mm

Standards
- Safety: EN-IEC60335-1, EN-IEC60335-2-29, EN-IEC62109-1, EN-IEC62109-2
- Emission, Immunity: EN55014-1, EN 55014-2

IMPORTANT NOTICE

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.

Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
