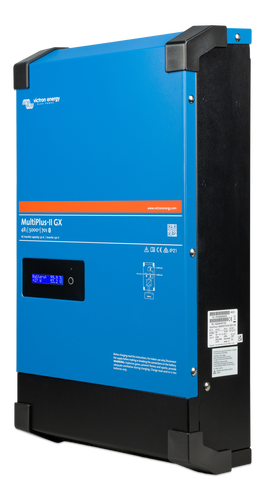

Victron MultiPlus-II 48/5000/70-50 230V GX
Victron MultiPlus-II 48/5000/70-50 230V GX
Couldn't load pickup availability
Victron MultiPlus-II 48/5000/70-50 230V GX
An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.
Product features
-
A MultiPlus-II with LCD and GX functionality
- The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.
-

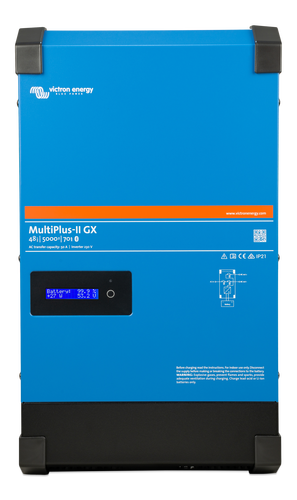

Display and WiFi
- The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other WiFi enabled device.
-

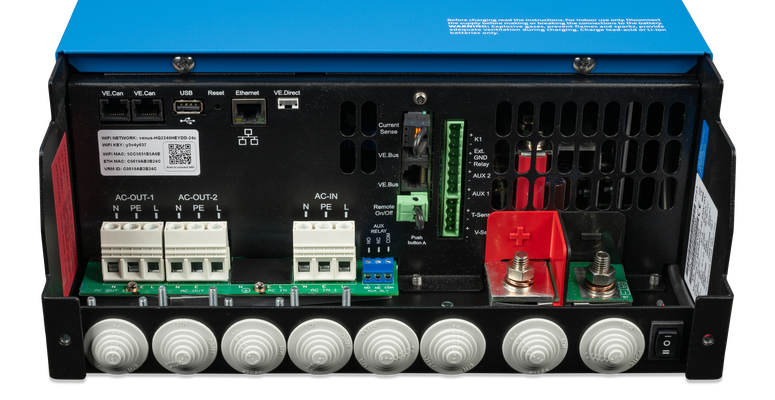

GX device The integrated GX device includes:
- A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
- A USB port.
- A Ethernet port.
- A VE.Direct port.
-
Applications
- The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.
-
Parallel and three phase operation
- Only one GX unit is needed in case of Parallel and three phase operation.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
MultiPlus-II GX
- PowerControl & PowerAssist-Yes
- Transfer switch-50 A
- Maximum AC input current-50 A
- Auxiliary output-Yes (32 A)
Inverter
- DC Input voltage range- 38 – 66 V
- Output-Output voltage: 230 VAC ± 2 % Frequency: 50 Hz ± 0,1 %
- Cont. output power at 25 °C (3) -5000 VA
- Cont. output power at 25 °C -4000 W
- Cont. output power at 40 °C -3700 W
- Cont. output power at 65 °C -3000 W
- Maximum apparent feed-in power-5000 VA
- Peak power-9000 W
- Maximum efficiency-96 %
- Zero load power-18 W
- Zero load power in AES mode- 12 W
- Zero load power in Search mode-2 W
Charger
- AC Input-Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz
- Charge voltage 'absorption'-57,6 V
-Charge voltage 'float'-55,2 V
- Storage mode-52,8 V
- Maximum battery charge current (4)-70 A
- Battery temperature sensor-Yes
IMPORTANT NOTICE
IMPORTANT NOTICE
Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.
The images shown are for illustration purposes only and may not be an exact representation of the product.
Crystal Communications (Pty) Ltd may not have all the specific items or quantities of stock you have requested. Our dedicated Customer Service Team will use our extensive network to try to source the stock for you ASAP. You will be notified within 24 hours if we cannot source the required item, and a full refund will be processed on your order. Should you wish to contact us directly, please call 0118670488 or email sales@crystalcom.co.za
