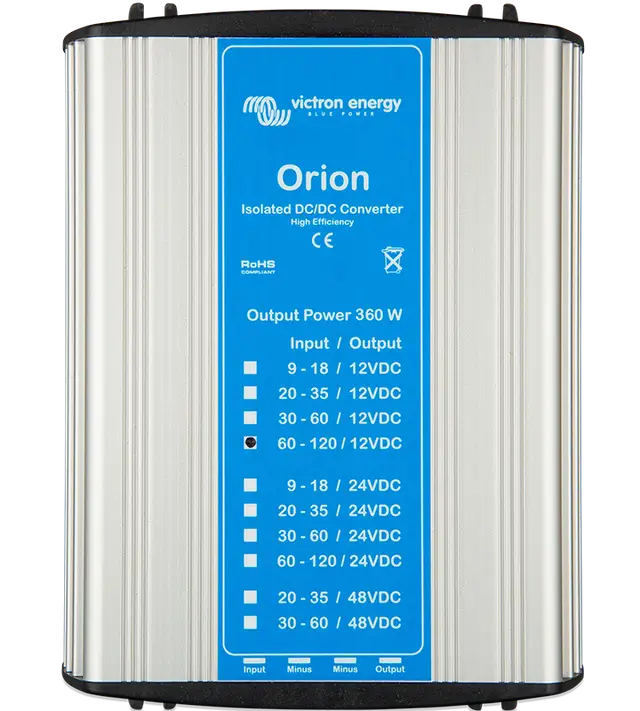

The isolated 110V Orion DC-DC Converter delivers a stable 12.5V or 24V DC output from a 110V DC input (60–140V range) at 360W. It features built-in protection against short circuits, overheating, reverse polarity, and overvoltage for reliable performance.
Specifications:
- Power rating (W): 360
- Galvanic isolation: Yes
- Temperature increase after 30 minutes at full load (°C): 30
- Fan assisted cooling (temp. controlled): Yes
- Weight (kg): 1.4 (3.1 lbs)
- Dimensions (h x w x d in mm / inches): 82 x 182 x 120 (3.2 x 7.2 x 4.7)
- Input voltage: 110V (90 – 140V)
- Output voltage: 12.5V or 24V
Common Characteristics
- Output voltage stability: 2%
- Output voltage tolerance: 3%
- Output noise: < 50mV rms
- Off-load current: < 25mA
- Efficiency: approx. 85%
- Isolation: > 400Vrms between input, output, and case
- Operating temperature: -20°C to +40°C (0 to 100% load). Derate linearly to 0A at 70°C (160°F)
- Humidity: Max 95% non-condensing
- Casework: Anodized aluminium
- Connections: 6.3mm (0.25 inch) push-on flat blade connectors
Protection
- Overcurrent: Output short circuit proof
- Overheating: Automatic shutdown
- Reverse polarity connection: Fuse and reverse connected diode across input
- Overvoltage: Varistor (over voltage spike protection and load dump)
Standards
- Safety: EN 60950-6-3, EN 50121-4
- Emission: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
