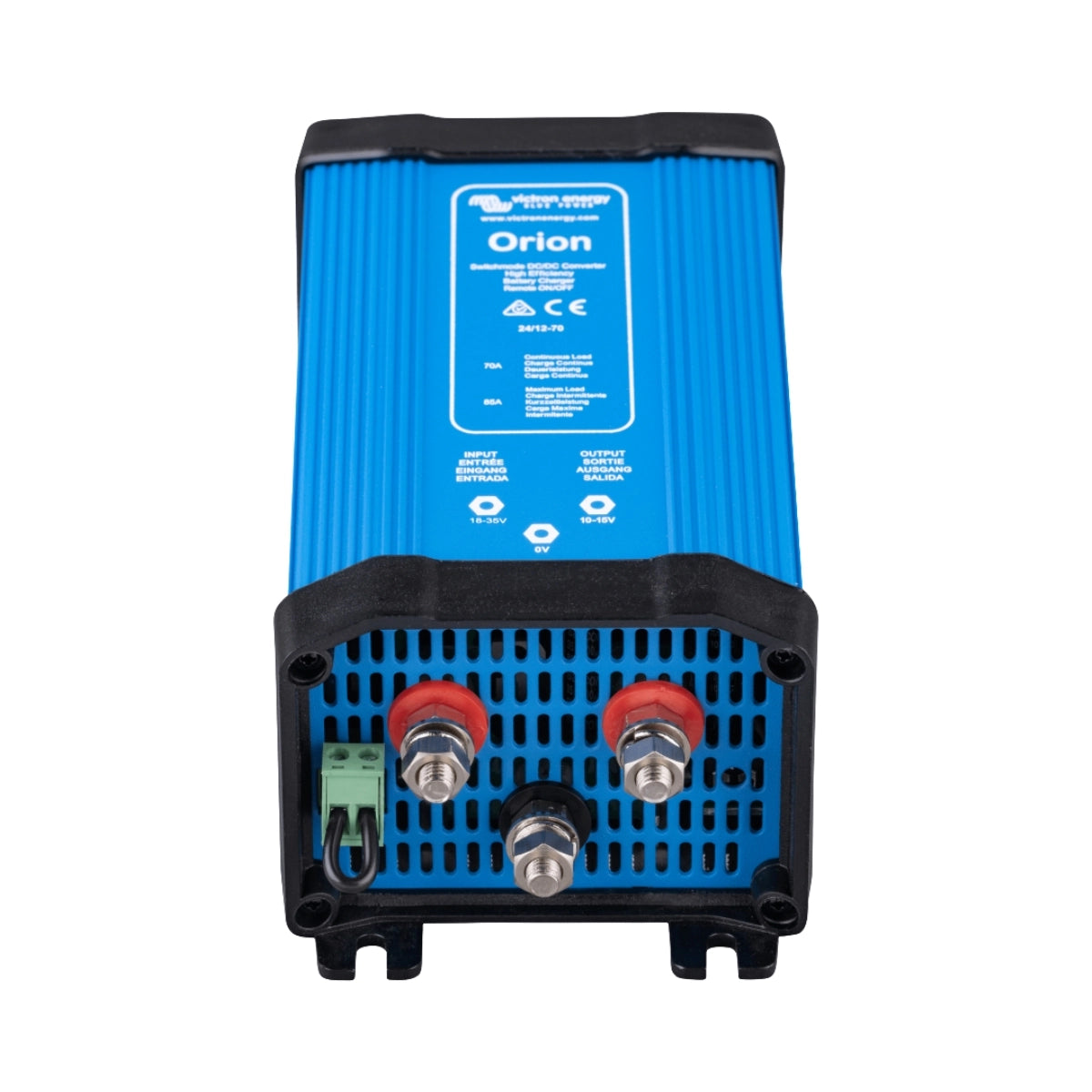

Victron Orion 24/12-70A DC-DC converter IP20

- Input voltage range (V): 18-35
- Under voltage shutdown (V): 14
- Under voltage restart (V): 18
- Output voltage adjustment range (V): yes
- Output voltage (V): Adjustable 10–15V F set 13,2V
- Efficiency (%): 92
- Suitable to buffer-charge a battery: Yes
- Can be connected in parallel: Yes
- Continuous output current (A): 70
- Max. output current (A): 85
- Fan assisted cooling (temp. controlled): Yes
- Galvanic isolation: No
- Off-load current: <20mA
- DC connection: M6 bolts
- Operating temperature range (full load): -20 to +55°C
- Protections: Overload, short circuit, and reverse polarity protection
- Weight (kg): 0,9 (2.0 lbs)
- Dimensions (h x w x d in mm / inches): 65x88x195 (2.6x3.5x7.7)
Standards:
- Safety: EN 60950-6-3, EN 50121-4
- Emission: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
