Victron Orion IP67 24/12-10A (120W)

Victron Orion IP67 24/12-10A (120W)

R 553.00
R 553.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Victron Orion IP67 24/12-10A (120W)

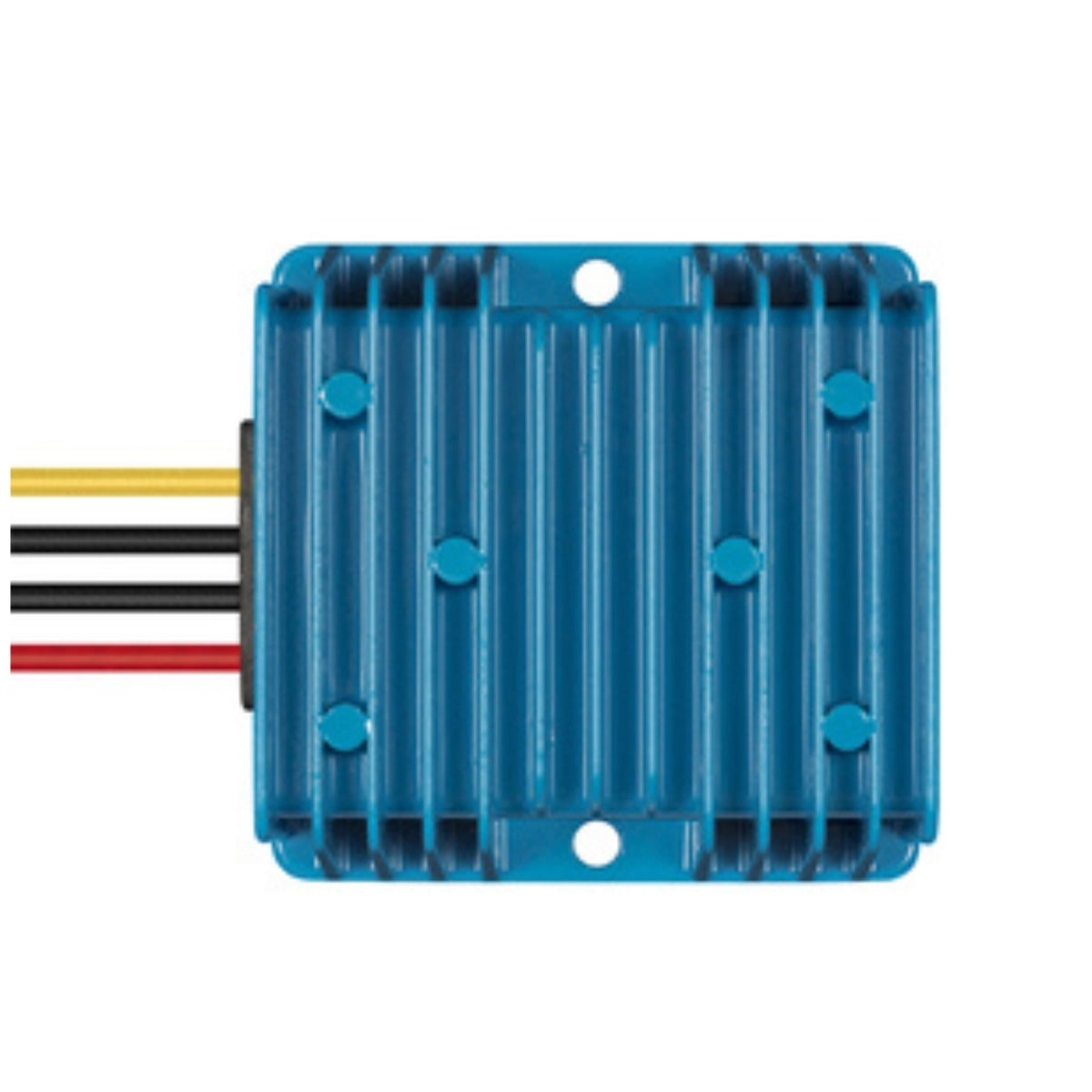

The Orion IP67 DC-DC Converter is built for reliability in the harshest conditions. Fully encapsulated in cast aluminium with moulded resin electronics, it is waterproof, shockproof, and ignition-protected. Resistant to water, oil, and dirt, this converter is designed for demanding environments where durability and stable power are critical.

Features:

  • Completely encapsulated protection – Waterproof, shockproof, and ignition-protected with rugged cast aluminium casing.
  • Resistant to harsh elements – Water, oil, and dirt cannot damage the unit.
  • Extra-long 1.8m input and output cables – Reduces the need for intermediate connections, boosting reliability.
  • Wide input voltage range (15–40V) – Maintains stable output during surges or drops.
  • Overheating protection – Safe to use in hot environments, including machine rooms.

PRODUCT SPECIFICATIONS

- Input voltage range: 15–40VDC
- -Under voltage shutdown: 13V
Under voltage restart: 14V
-No load current at 24V: 20mA
- DC output voltage: 12V ± 3%
- Maximum continuous output current: 10A
- Efficiency: 93%
- Ripple & Noise: 75mVpp
- Operating temperature range: -40°C to +70°C (full rated - output up to 40°C, derate 3% per °C above 40°C)
- Overload protection: Hiccup mode, auto recovery after fault is removed
- Short circuit proof: Yes
- Reverse polarity protection: With external fuse or circuit breaker (not included)

Enclosure
- Material & Colour: Aluminium (blue RAL 5012)
- Protection category: IP67
- Connections: Two input and two output cables (1.8m length), Bolts M6
- Cable cross section (input): 1.5mm² (15 AWG)
- Cable cross section (output): 1.5mm² (15 AWG)
- Weight: 300 g
- Dimensions (h × w × d): 74 × 74 × 32 mm

Standards
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2
- Vibration: IEC 68-2-6: 10–150 Hz / 1.0 G
