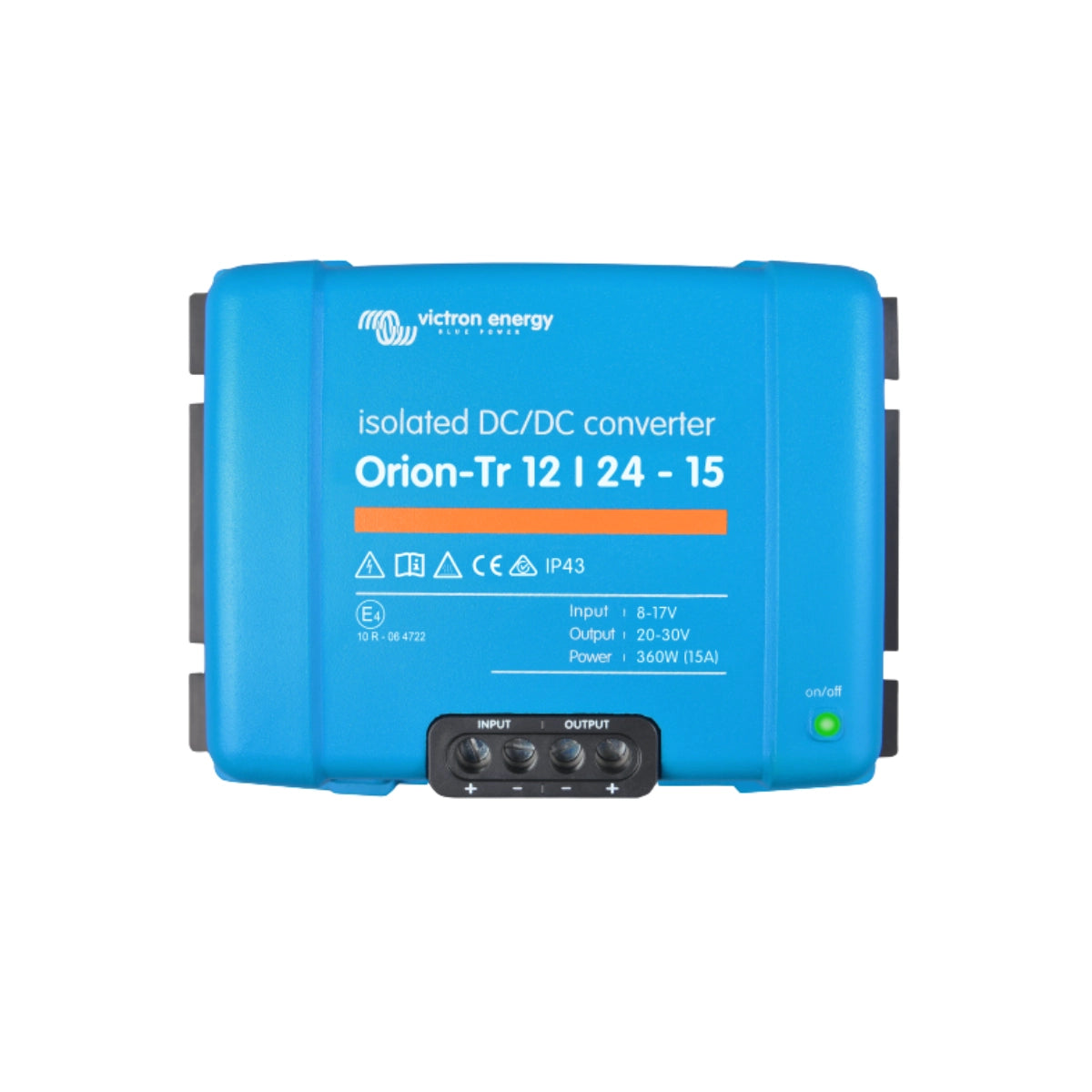

Victron Orion-Tr 12/24-15A (360W) Isolated DC-DC converter
This advanced DC-DC converter is engineered for reliable power management in demanding electrical systems. It offers flexible remote control capabilities, robust protection features, and simple installation – making it ideal for automotive, marine, and industrial applications. With adjustable output voltage and parallel operation support, this unit delivers consistent performance even in high-heat environments.
Features:
- Remote on/off control: No high-current switch needed.
- Short-circuit proof & parallel connection ready: Increase output current by connecting multiple units.
- High-temperature protection: Output current reduces automatically at high ambient temperatures.
- IP43 rated: Safeguards the unit when mounted with terminals facing downward.
- Easy screw terminal installation: No special tools required.
- Built-In Input Fuse: Available on 12V and 24V models (non-replaceable).
- Adjustable output voltage: Flexible settings for specific system requirements (note: not for battery charging).
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
- Input Voltage Range: 8–17 V
- Under Voltage Shutdown: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 18–30 V
- Output Voltage Tolerance: ± 0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current @ 40°C: 15 A
- Maximum Output Current (10 s): 25 A
- Short Circuit Current: 40 A
- Continuous Power @ 25°C: 430 W
- Continuous Power @ 40°C: 360 W
- Efficiency: 88 %
- No Load Input Current: <100 mA
- Current Draw (Disabled, Remote Port): <200 µA
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: -20°C to +55°C (derate 3% per °C above 40°C)
- Humidity: Max. 95 % non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Weight: 1.8 kg
- Dimensions (HxWxD): 130 × 186 × 80 mm
- Standards – Safety: EN 60950
- Standards – Emission: EN 61000-6-3, EN 55014-1
- Standards – Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5
IMPORTANT NOTICE
IMPORTANT NOTICE
Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.
The images shown are for illustration purposes only and may not be an exact representation of the product.
