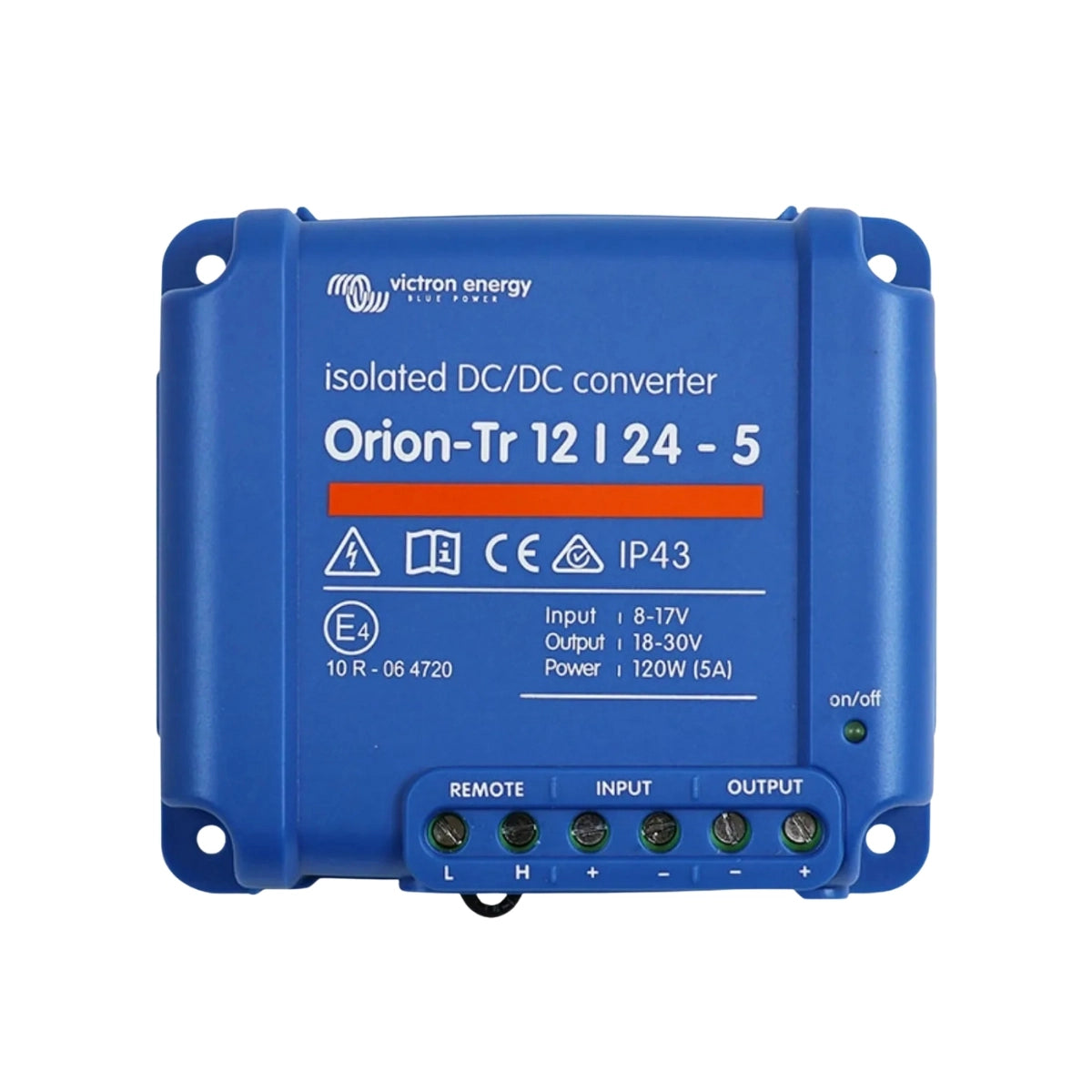

The Orion-Tr DC-DC converter is designed for reliable and flexible power management in automotive, marine, and industrial applications. It features a remote on/off terminal for low-power control, robust protection against short circuits and high temperatures, and the ability to be connected in parallel to increase output current. With easy screw-terminal installation and adjustable output voltage, it provides a durable and efficient solution for a variety of electrical systems.
Features:
- Remote On/Off Terminal: Operates via a low-power switch or engine run/stop switch, eliminating the need for a high-current input switch.
- Short-Circuit Proof & Parallel Capable: Unlimited units can be connected to increase output current.
- High Temperature Protection: Output current reduces automatically at high ambient temperatures.
- IP43 Protection: Ensures durability when mounted with screw terminals facing downward.
- Easy Screw Terminal Installation: No special tools required.
- Built-In Input Fuse: Available on 12 V and 24 V input models (non-replaceable).
-
Adjustable Output Voltage: Flexible voltage output for system requirements.
Specifications:
- Input Voltage Range: 8–17 V
- Under Voltage Shutdown: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 18–30 V
- Output Voltage Tolerance: ± 0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current @ 25°C: 5 A
- Maximum Output Current (10 s): 6.3 A
- Short Circuit Current: 23 A
- Continuous Power @ 25°C: 120 W
- Continuous Power @ 40°C: 110 W
- Efficiency: 88 %
- No Load Input Current: < 80 mA
- Current Draw (Disabled, Remote Port): < 200 µA
- Galvanic Isolation: 200 VDC (input, output, case)
- Operating Temperature Range: -20°C to +55°C (derate 3% per °C above 40°C)
- Humidity: Max 95% non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 6 mm² (AWG10)
- Weight: 0.42 kg (1 lb)
- Dimensions (HxWxD): 100 × 113 × 47 mm (4.0 × 4.5 × 1.9 inch)
- Standards – Safety: EN 60950
- Standards – Emission: EN 61000-6-3, EN 55014-1
- Standards – Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
-
Automotive Directive: ECE R10-5
