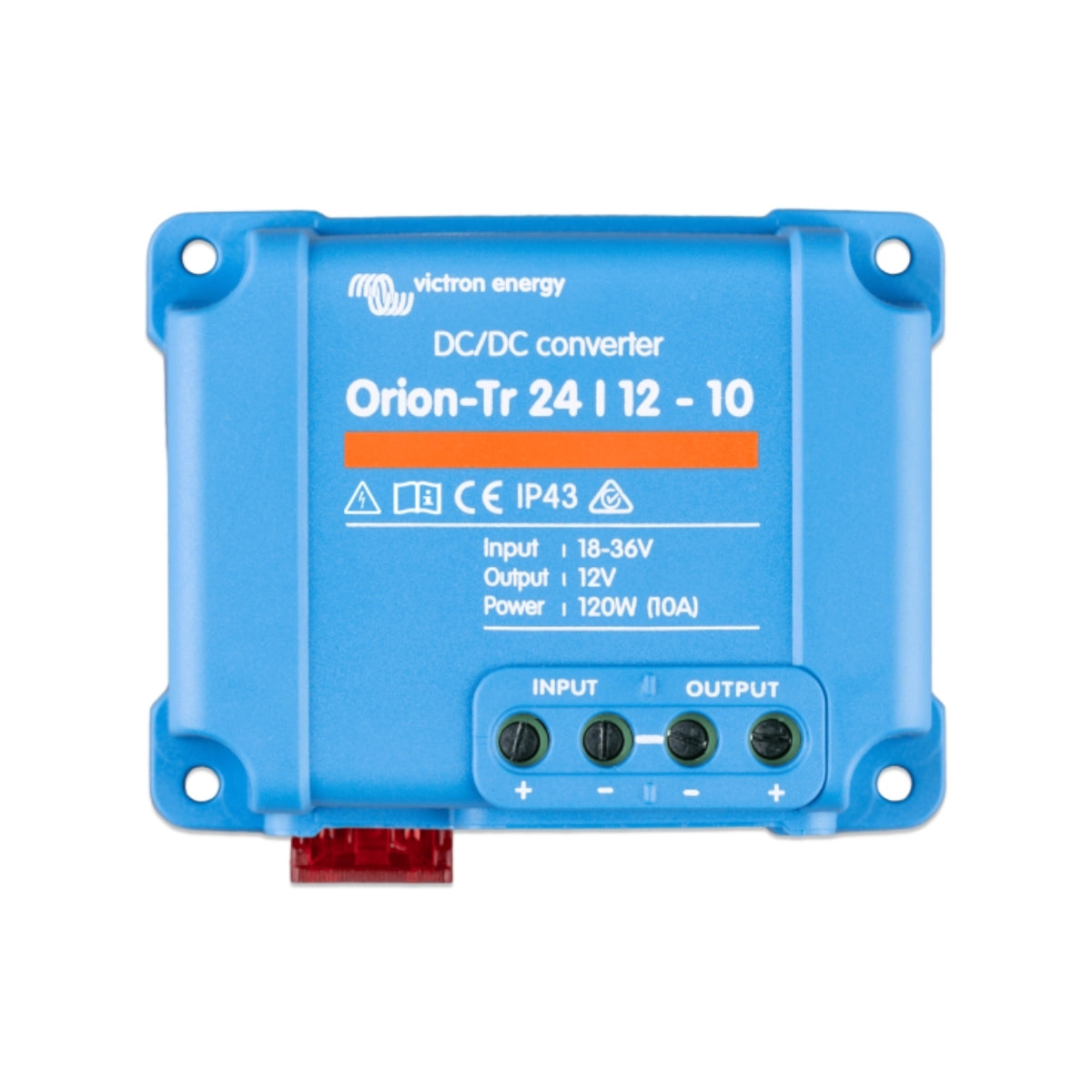

This high-efficiency DC-DC converter delivers reliable and stable power for automotive, marine, and industrial applications. Featuring synchronous rectification, it achieves over 95% efficiency at full load. The unit is designed for easy installation with screw terminals and offers IP43 protection when mounted with terminals facing downward, ensuring durability and safety in demanding environments.
Features:
- High Efficiency: Synchronous rectification provides over 95% efficiency at full load.
- IP43 Protection: Safeguards the unit when installed with screw terminals facing downward.
-
Easy Screw Terminal Installation: No special tools required for quick setup.
Specifications:
- Input Voltage Range: 18–35 V
- Output Voltage: 12.5 V
- Efficiency: 97 %
- Continuous Output Current: 10 A
- Maximum Output Current: 12 A
- Galvanic Isolation: No
- No-Load Current: < 45 mA
- Operating Temperature Range: -20°C to +55°C
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 6 mm² (AWG10)
- Weight: 0.2 kg (0.44 lbs)
- Dimensions (HxWxD): 73 × 94 × 37 mm (2.9 × 3.7 × 1.5 in)
- Standards – Safety: EN 60950
- Standards – Emission: EN 61000-6-3, EN 55014-1
- Standards – Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
-
Automotive Directive: ECE R10-4
