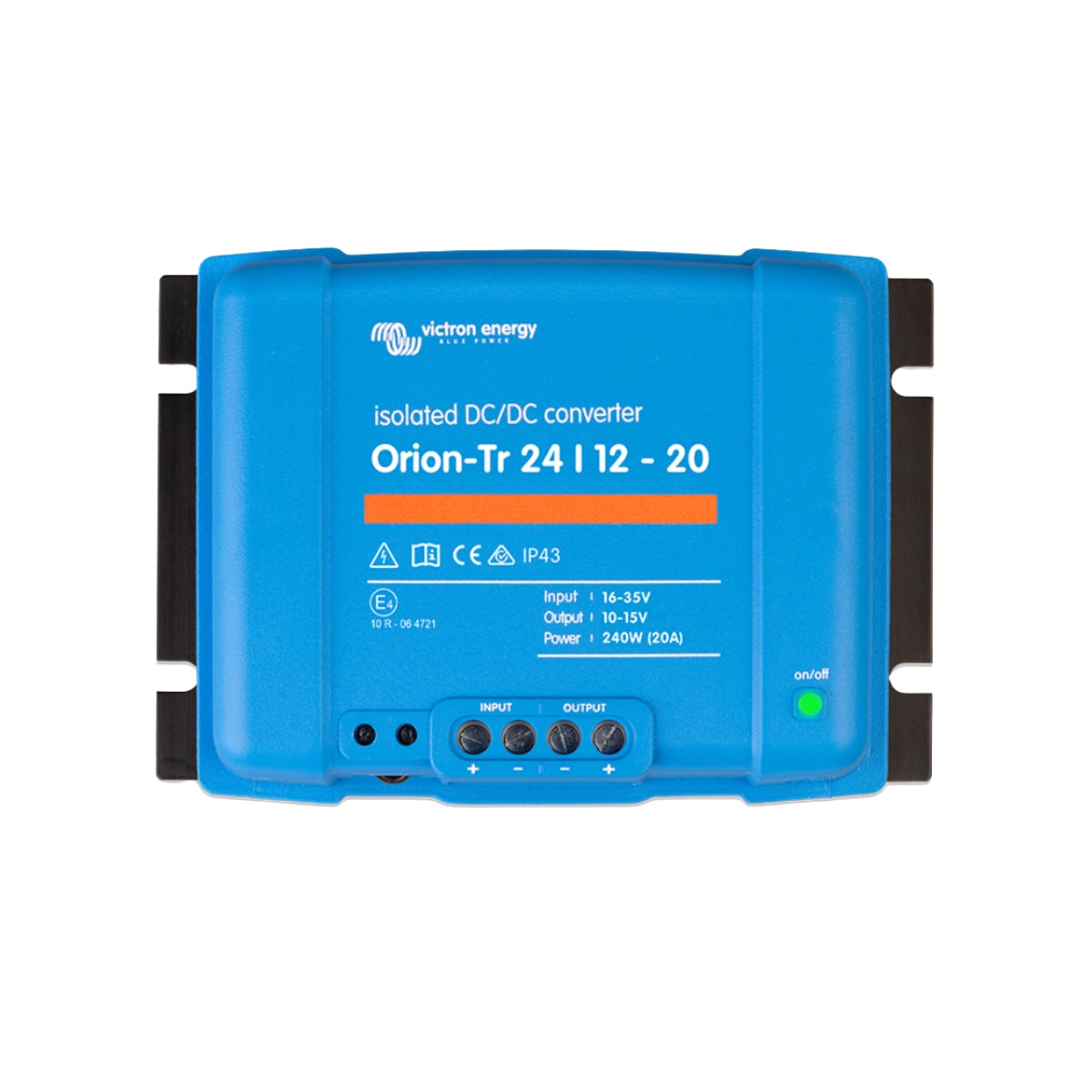

The Orion-Tr DC-DC converter delivers high-efficiency, reliable power for automotive, marine, and industrial applications. Utilizing synchronous rectification, it achieves over 95% efficiency at full load. The unit features IP43 protection when installed with screw terminals facing downward, ensuring durability in challenging environments. Easy-to-use screw terminals allow for quick installation without special tools, making it a compact and efficient power solution.
Features:
- High Efficiency: Synchronous rectification provides over 95% efficiency at full load.
- IP43 Protection: Safeguards the unit when installed with screw terminals facing downward.
-
Easy Screw Terminal Installation: No special tools required for quick setup.
Specifications:
- Input Voltage Range: 18–35 V
- Output Voltage: 12.5 V
- Efficiency: 97 %
- Continuous Output Current: 20 A
- Maximum Output Current: 25 A
- Galvanic Isolation: No
- No-Load Current: < 35 mA
- Operating Temperature Range: -20°C to +55°C (derate 3% per °C above 40°C)
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 6 mm² (AWG10)
- Weight: 0.25 kg (0.55 lbs)
- Dimensions (HxWxD): 73 × 94 × 45 mm (2.9 × 3.7 × 1.8 in)
- Standards – Safety: EN 60950
- Standards – Emission: EN 61000-6-3, EN 55014-1
- Standards – Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
-
Automotive Directive: ECE R10-4
