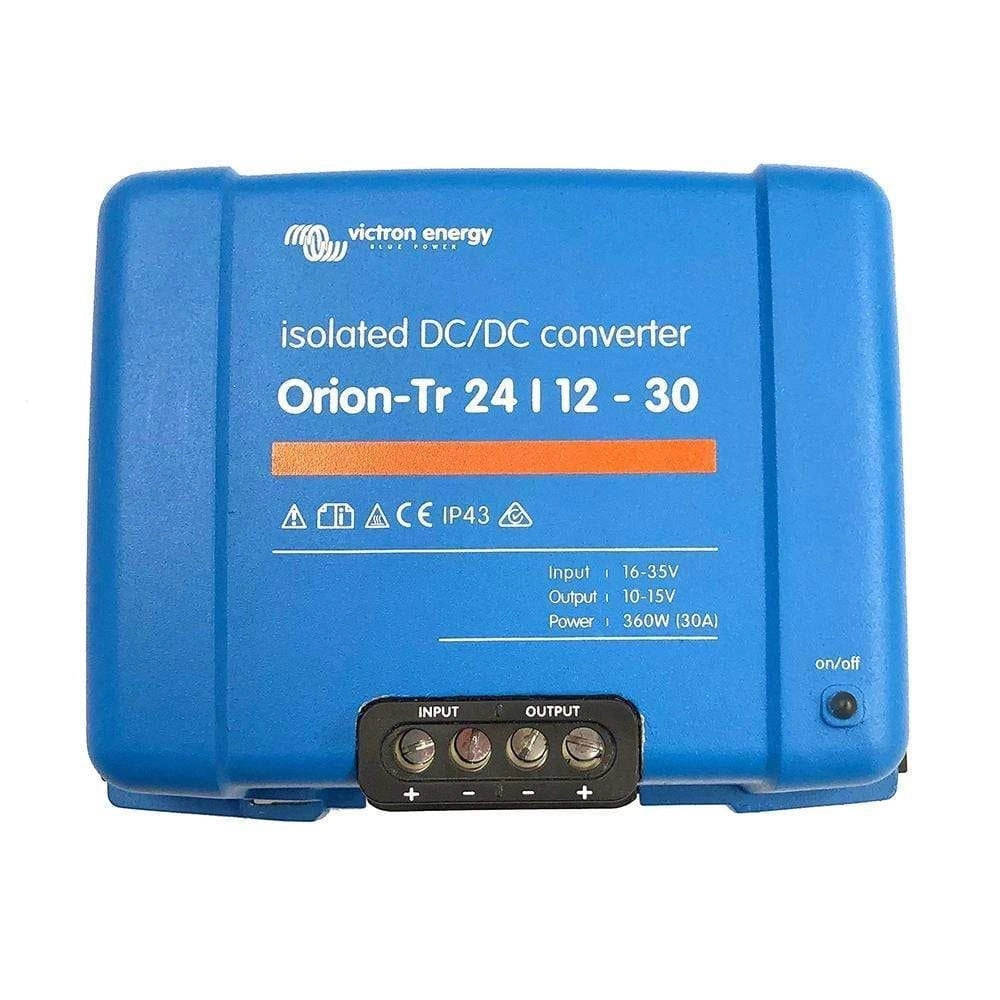

The Orion-Tr DC-DC converter is a robust and versatile power solution for automotive, marine, and industrial applications. Featuring a remote on/off terminal, it allows control with a low-power switch, eliminating the need for a high-current input switch. All models are short-circuit proof and can be connected in parallel to increase output current. Built-in high-temperature protection ensures safe operation, while IP43 protection safeguards the unit when mounted with screw terminals facing downward. Easy-to-use screw terminals require no special tools for installation, and adjustable output voltage provides flexible power management.
Features:
- Remote On/Off Terminal: Operate via a low-power switch or engine run/stop switch.
- Short-Circuit Proof & Parallel Capable: Unlimited units can be connected to increase output current.
- High-Temperature Protection: Output current reduces automatically at high ambient temperatures.
- IP43 Protection: Ensures durability when installed with screw terminals facing downward.
- Easy Screw Terminal Installation: No special tools required.
- Built-In Input Fuse: Available on 12 V and 24 V input models (non-replaceable).
-
Adjustable Output Voltage: Flexible voltage output for different system requirements.
Specifications:
- Input Voltage Range: 16–35 V
- Under Voltage Shutdown: 14 V
- Under Voltage Restart: 15 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10–15 V
- Output Voltage Tolerance: ± 0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current @ 40°C: 30 A
- Maximum Output Current (10 s, minus 20%): 45 A
- Short Circuit Output Current: 60 A
- Continuous Output Power @ 25°C: 430 W
- Continuous Output Power @ 40°C: 360 W
- Efficiency: 88 %
- No Load Input Current: < 100 mA
- Current Consumption (Disabled via Remote Port): < 200 µA
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: -20°C to +55°C (derate 3% per °C above 40°C)
- Humidity: Max. 95 % non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Weight: 1.6 kg (3.5 lb)
- Dimensions (HxWxD): 130 × 186 × 70 mm (5.1 × 7.3 × 2.8 in)
- Standards – Safety: EN 60950
- Standards – Emission: EN 61000-6-3, EN 55014-1
- Standards – Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
-
Automotive Directive: ECE R10-5
