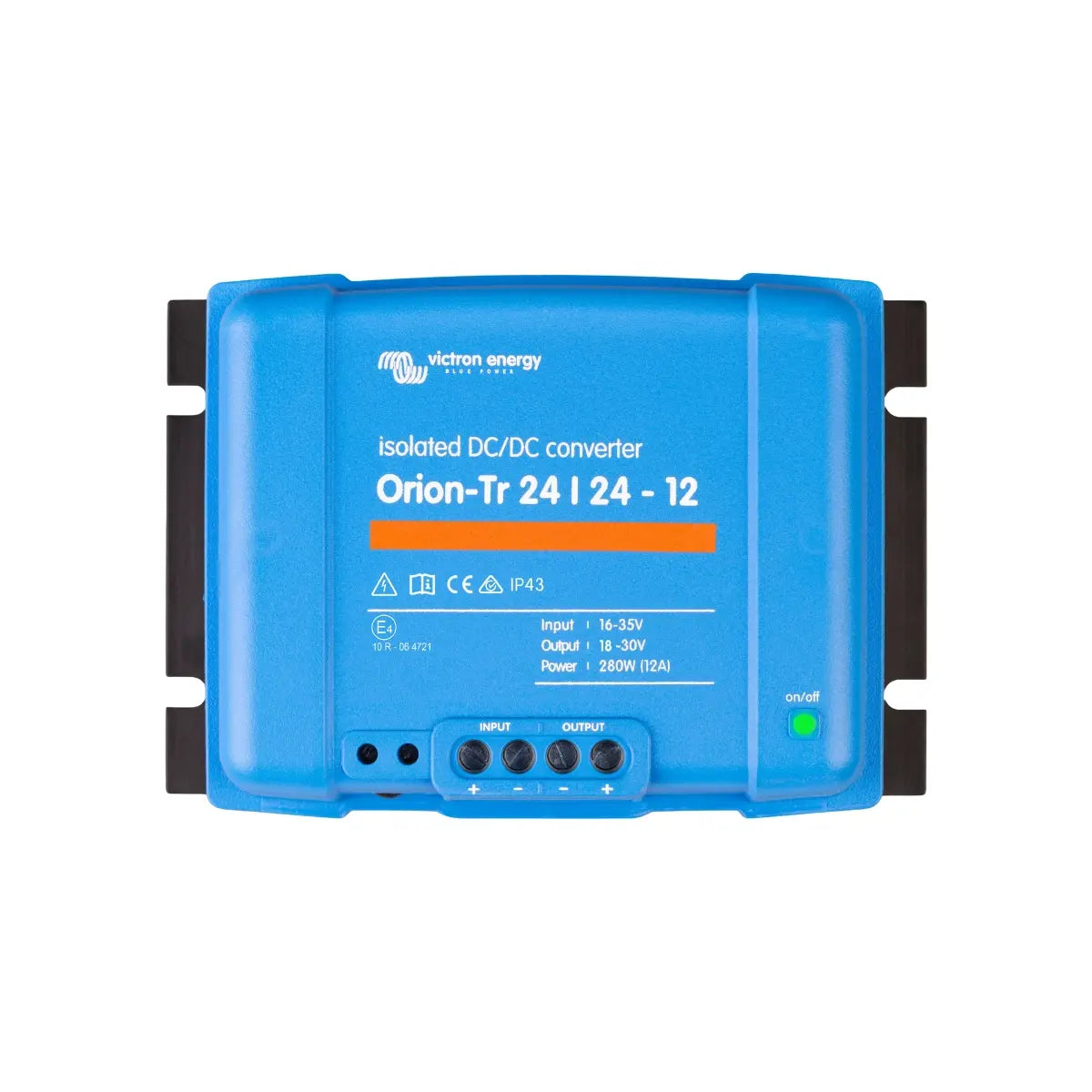

The Orion-Tr 24/12-9A DC-DC converter is a versatile and reliable power solution for automotive, marine, and industrial applications. It features a remote on/off terminal, allowing operation via a low-power switch or an engine run/stop switch, eliminating the need for a high-current input switch. The converter is short-circuit proof and can be connected in parallel to increase output current. With high-temperature protection, IP43 rated housing, and easy-to-use screw terminals, installation is simple and safe.
Features:
- Remote On/Off Terminal: Operates via a low-power switch or engine run/stop switch.
- Short-Circuit Proof & Parallel Capable: Multiple units can be connected for higher output.
- High-Temperature Protection: Automatically reduces output current at high ambient temperatures.
- IP43 Protection: Effective protection when mounted with screw terminals facing downward.
- Screw Terminals: Easy installation, no special tools required.
- Input Fuse (Non-Replaceable): Included on 12 V and 24 V input models.
-
Adjustable Output Voltage: Flexible output to suit different system needs.
Specifications:
- Input Voltage Range: 16–35 V
- Under Voltage Shutdown: 14 V
- Under Voltage Restart: 15 V
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 18–30 V
- Output Voltage Tolerance: ±0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current (40°C): 12 A
- Maximum Output Current (10 s, nominal voltage −20%): 15 A
- Short-Circuit Output Current: 30 A
- Continuous Output Power:
- At 25°C: 320 W
- At 40°C: 280 W
- Efficiency: 89 %
- No-Load Input Current: < 80 mA
- Current Consumption (disabled via remote port): < 200 µA
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: −20 to +55 °C (derate 3% per °C above 40 °C)
- Humidity: Max. 95% non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Weight: 1.3 kg (3 lb)
- Dimensions (HxWxD): 130 × 186 × 70 mm (5.1 × 7.3 × 2.8 in)
- Standards:
- Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
-
Automotive Directive: ECE R10-5
