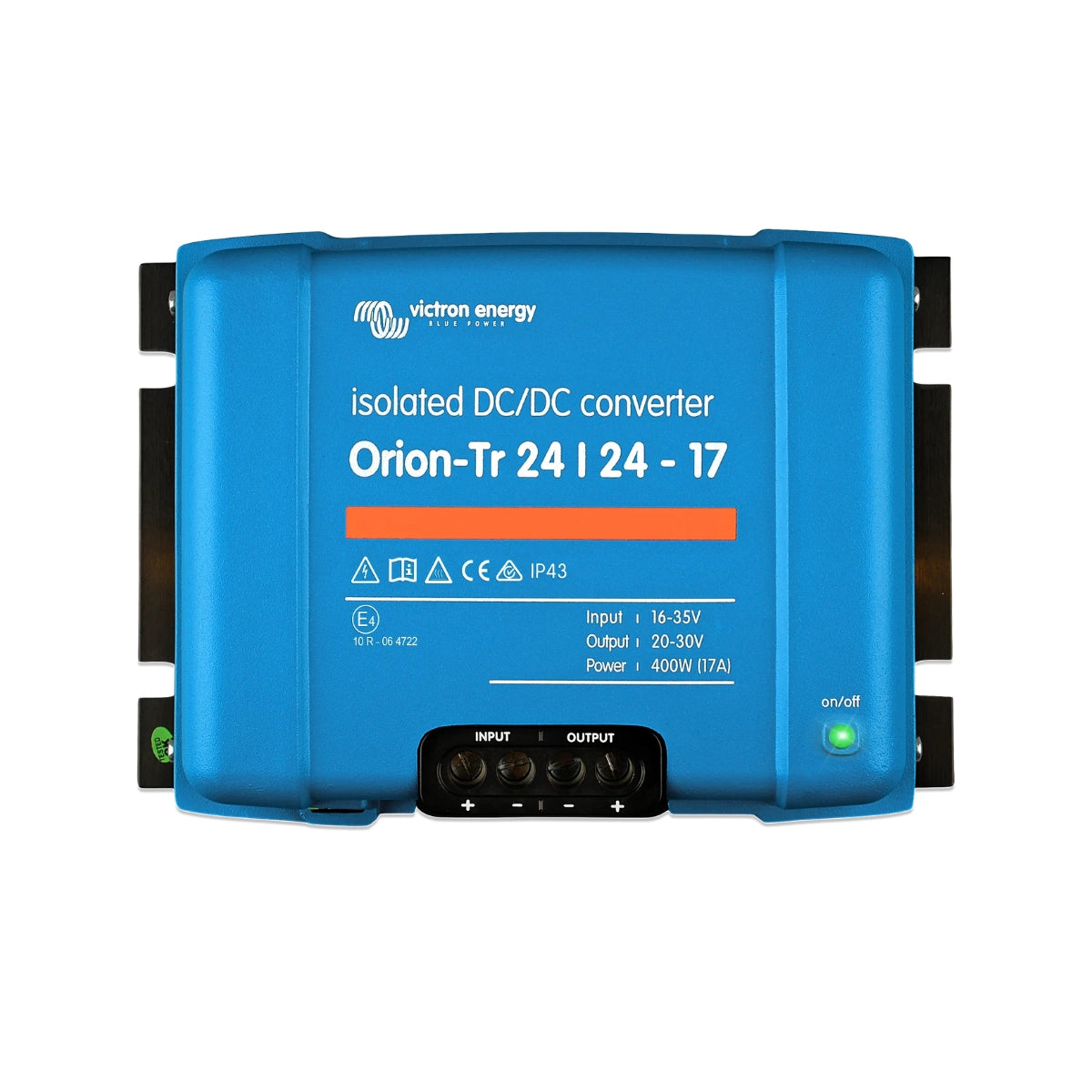

The Orion-Tr 24/24-17A DC-DC Converter is a high-performance, isolated converter designed to reliably provide stable 24 V output from a 24 V input. Ideal for industrial, automotive, and marine applications, it ensures consistent power delivery even under demanding conditions. Its remote on/off terminal allows for easy control without a high-current switch, while multiple units can be safely connected in parallel to increase output current.
Features:
- Remote On/Off Terminal: Control the unit with a low-power switch or engine run/stop switch—no high-current switch required.
- Parallel Connection: Unlimited units can be connected in parallel to boost output current.
- Short-Circuit Proof: Safe operation under fault conditions.
- High-Temperature Protection: Output current automatically reduces at elevated ambient temperatures.
- IP43 Protection: When installed with terminals facing downwards.
- Easy Installation: Screw terminals—no special tools needed.
- Input Fuse (Non-Replaceable): Included on 12 V and 24 V input models.
- Adjustable Output Voltage: Fine-tune output to suit application requirements.
-
Reliable Performance: Consistent power delivery for demanding industrial and automotive applications.
Specifications:
- Input Voltage Range: 16–35 V
- Under Voltage Shut Down: 14 V
- Under Voltage Restart: 15 V
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 18–30 V
- Output Voltage Tolerance: ±0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current at Nominal Voltage (40°C): 17 A
- Maximum Output Current (10 s) at Nominal Voltage: 25 A
- Short Circuit Output Current: 40 A
- Continuous Output Power at 25°C: 480 W
- Continuous Output Power at 40°C: 400 W
- Efficiency: 89 %
- No Load Input Current: < 80 mA
- Current Consumption (disabled via remote port): < 200 µA
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: -20 to +55 °C (derate 3 % per °C above 40 °C)
- Humidity: Max. 95 % non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Weight: 1.6 kg (3.5 lb)
- Dimensions (HxWxD): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 in)
- Standards:
-
Safety: EN 60950
- Emission: EN 61000-6-3, EN 55014-1
- Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
-
Automotive Directive: ECE R10-5
