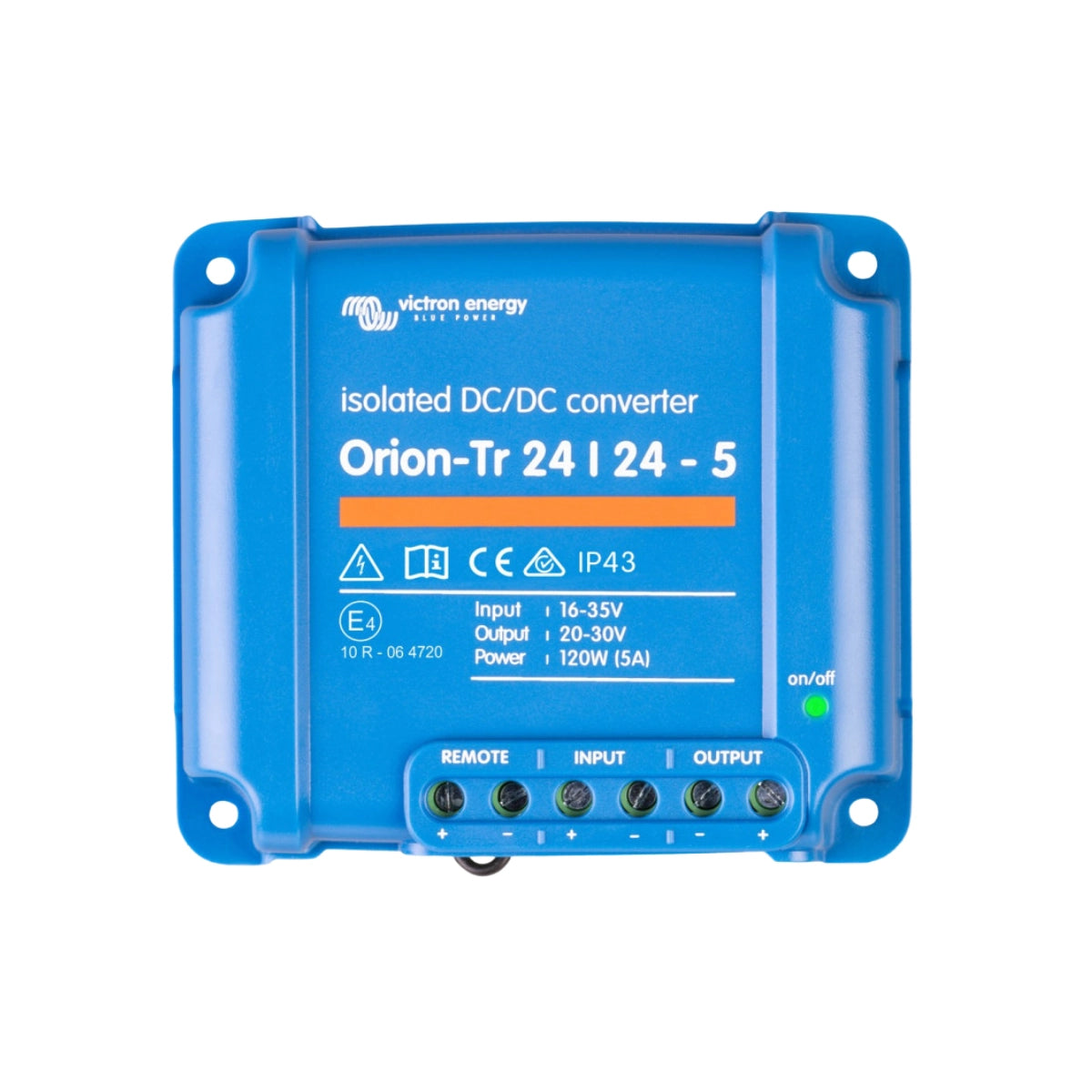

The Orion-Tr 24/24-5A DC-DC converter is a high-performance isolated power solution, designed to reliably convert 24 V input to a stable 24 V output at up to 17 A. Its robust design ensures continuous operation even under high ambient temperatures, while the remote on/off terminal allows convenient low-power switching without the need for heavy-duty wiring. Ideal for industrial, automotive, and marine applications where dependable power and flexibility are required.
Features:
- Remote On/Off Terminal – Operate the converter with a low-power switch or engine run/stop control without high current switches.
- Short Circuit Proof & Parallellable – Protects the unit from damage, and multiple units can be connected in parallel to increase output current.
- High Temperature Protection – Output current automatically reduces at elevated ambient temperatures to protect the converter.
- IP43 Protection – Ensures protection against water and dust ingress when installed with terminals oriented downwards.
- Screw Terminals – Easy installation with no special tools required.
- Input Fuse (Non-Replaceable) – Protects 12 V and 24 V input models from overcurrent conditions.
- Adjustable Output Voltage – Fine-tune output voltage as needed.
-
Battery Charging Advisory – Not intended for direct battery charging; consider using an Orion-Tr Smart for that purpose.
Specifications:
- Input Voltage Range: 8–17 V
- Under Voltage Shutdown: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 24.2 V
- Output Voltage Adjust Range: 18–30 V
- Output Voltage Tolerance: ±0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current (at nominal voltage, 25 °C): 5 A
- Maximum Output Current (10 s): 6.3 A
- Short Circuit Output Current: 23 A
- Continuous Output Power at 25 °C: 120 W
- Continuous Output Power at 40 °C: 110 W
- Efficiency: 88%
- No Load Input Current: < 80 mA
- Current Consumption (when disabled via remote port): < 200 µA
- Galvanic Isolation: 200 V DC between input, output, and case
- Operating Temperature Range: -20 °C to +55 °C (derate 3% per °C above 40 °C)
- Humidity: Max. 95% non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 6 mm² (AWG10)
- Weight: 0.42 kg (1 lb)
- Dimensions (HxWxD): 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 in)
-
Standards:
-
Safety: EN 60950
-
Emission: EN 61000-6-3, EN 55014-1
-
Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
-
Automotive Directive: ECE R10-5
-
