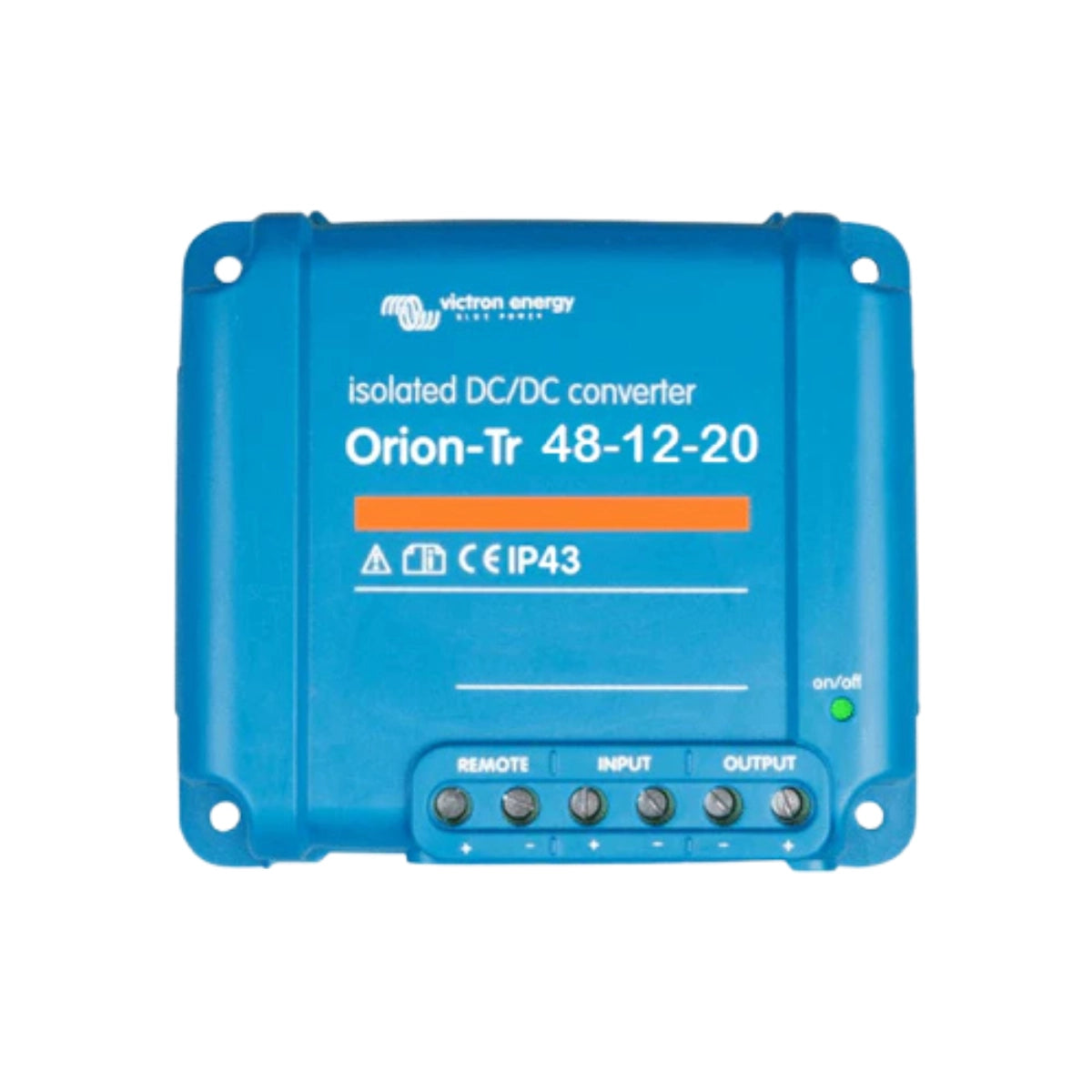

The Victron Orion-Tr 48/12-20A is a high-performance isolated DC-DC converter designed for demanding automotive, marine, and industrial applications. Delivering a stable 12 V output from a 48 V input, it ensures reliable power for sensitive electronics and auxiliary systems.
Features:
- Remote on/off terminal for low-power switching
- Short-circuit proof and parallelable
- High-temperature protection with automatic current reduction
- IP43 protection (screw terminals downwards)
- Easy-to-use screw terminals, no special tools required
- Input fuse on 12 V/24 V models (non-replaceable)
- Adjustable output voltage (not for battery charging; use Orion-Tr Smart for that)
Specifications:
- Input Voltage Range: 32–70 V
- Under Voltage Shutdown: 28 V
- Under Voltage Restart: 30 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10–15 V
- Output Voltage Tolerance: ±0.2 V
- Output Noise: 2 mV RMS
- Continuous Output Current at 40 °C: 20 A
- Maximum Output Current (10 s): 25 A
- Short Circuit Output Current: 50 A
- Continuous Output Power at 25 °C: 280 W
- Continuous Output Power at 40 °C: 240 W
- Efficiency: 87 %
- No Load Input Current: <80 mA
- Current Consumption: <200 µA (when disabled via remote port)
- Galvanic Isolation: 200 V DC between input, output, and case
- Operating Temperature Range: -20 to +55 °C (derate 3 % per °C above 40 °C)
- Humidity: Max. 95 % non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Weight: 1.3 kg (3 lb)
- Dimensions (HxWxD): 130 × 186 × 70 mm (5.1 × 7.3 × 2.8 in)
-
Standards:
-
Safety: EN 60950
-
Emission: EN 61000-6-3, EN 55014-1
-
Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
-
Automotive Directive: ECE R10-5
-
