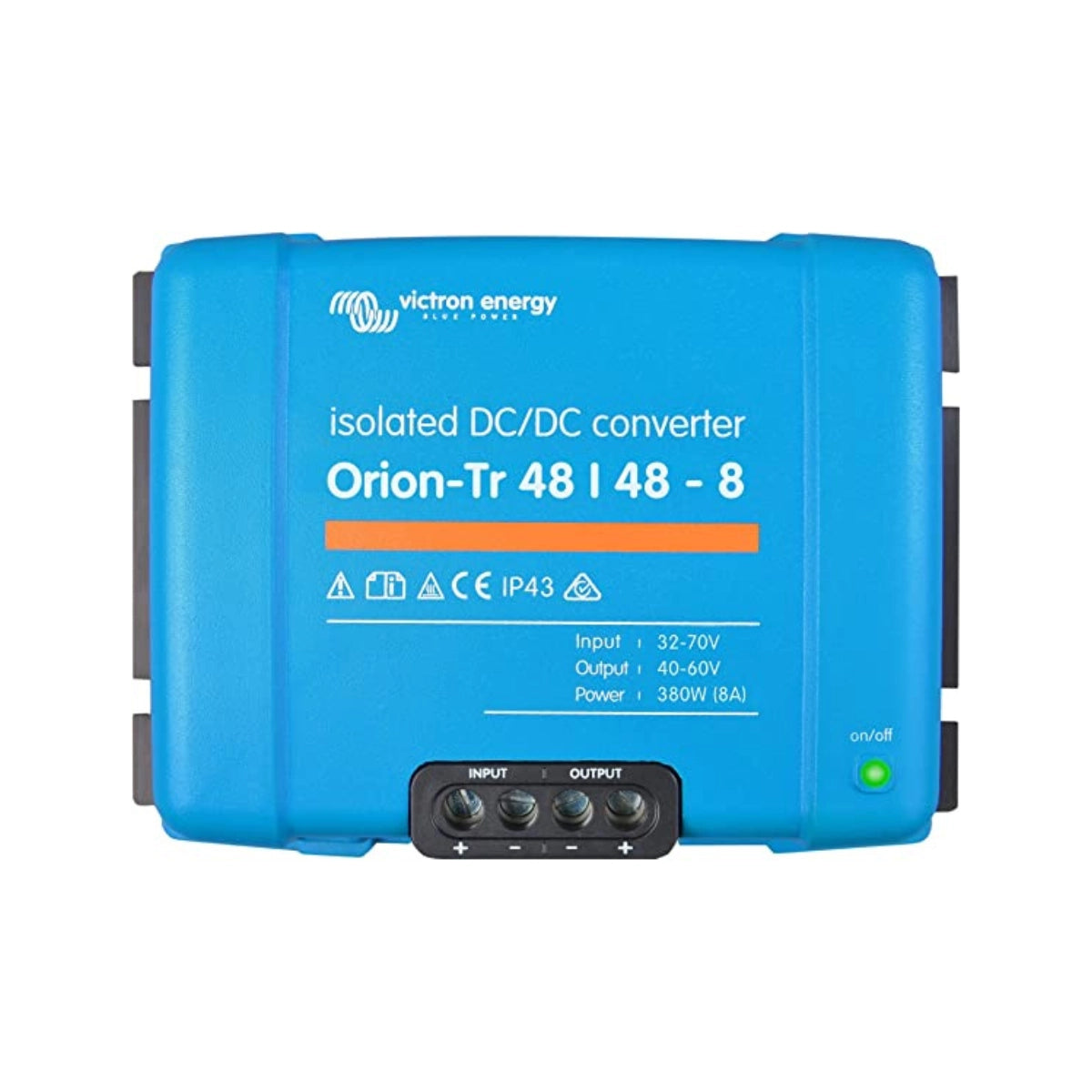

The Orion-Tr DC-DC Converter is a versatile and reliable solution for applications requiring stable voltage conversion. Designed for durability and ease of use, it offers flexible installation options and advanced protection features to ensure safe operation in a variety of environments. Ideal for parallel setups and systems requiring remote control, this converter delivers high performance without compromising safety.
Features:
- Remote On/Off Terminal: Operate the converter with a low-power switch or an engine run/stop switch, eliminating the need for a high-current input switch.
- Short-Circuit Proof: All models are protected against short circuits for safe operation.
- Parallel Connection: Multiple units can be connected in parallel to increase output current, with no limit on the number of units.
- High-Temperature Protection: Output current automatically reduces at elevated ambient temperatures to prevent overheating.
- IP43 Protection: When installed with screw terminals oriented downwards, the unit is protected against water spray and dust ingress.
- Screw Terminals: Easy installation without special tools.
- Input Fuse: Built-in (non-replaceable) fuse on 12 V and 24 V input models for added safety.
-
Adjustable Output Voltage: Allows fine-tuning of output voltage; not intended for battery charging—use Orion-Tr Smart models for battery applications.
Specifications:
-
Input Voltage Range: 32–70 V
-
Under Voltage Shutdown: 28 V
-
Under Voltage Restart: 30 V
-
Nominal Output Voltage: 48.2 V
-
Output Voltage Adjust Range: 40–60 V
-
Output Voltage Tolerance: ±0.2 V
-
Output Noise: 2 mV RMS
-
Continuous Output Current at 40 °C: 8 A
-
Maximum Output Current (10 s): 15 A
-
Short Circuit Output Current: 25 A
-
Continuous Output Power at 25 °C: 430 W
-
Continuous Output Power at 40 °C: 380 W
-
Efficiency: 89 %
-
No Load Input Current: <80 mA
-
Current Consumption: <200 µA (when disabled via remote port)
-
Galvanic Isolation: 200 V DC between input, output, and case
-
Operating Temperature Range: -20 to +55 °C (derate 3 % per °C above 40 °C)
-
Humidity: Max. 95 % non-condensing
-
DC Connection: Screw terminals
-
Maximum Cable Cross-Section: 16 mm² (AWG6)
-
Weight: 1.6 kg (3.5 lb)
- Dimensions (HxWxD): 130 × 186 × 70 mm (5.1 × 7.3 × 2.8 in)
- Standards:
-
Safety: EN 60950
-
Emission: EN 61000-6-3, EN 55014-1
-
Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5
-
Emission: EN 61000-6-3, EN 55014-1
