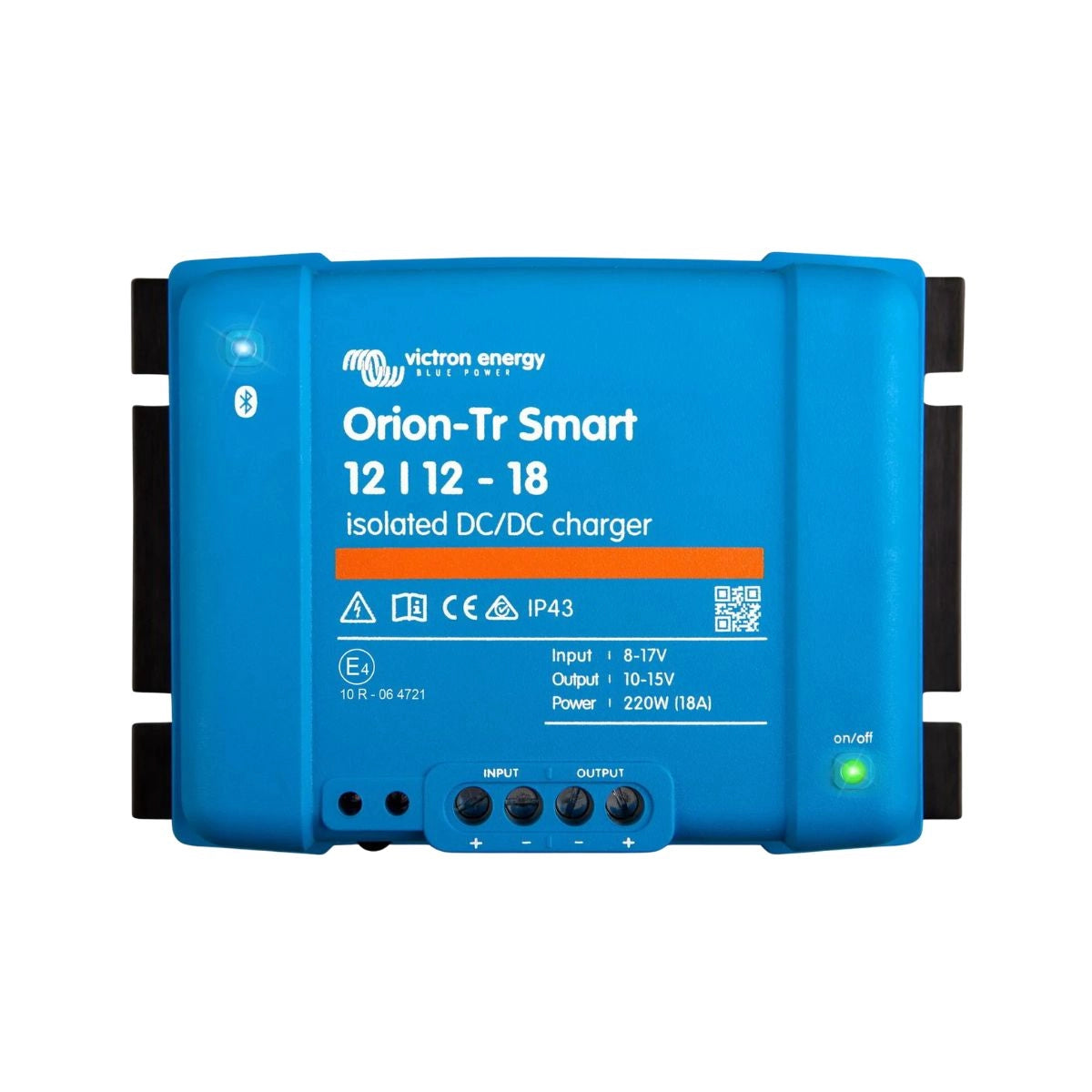

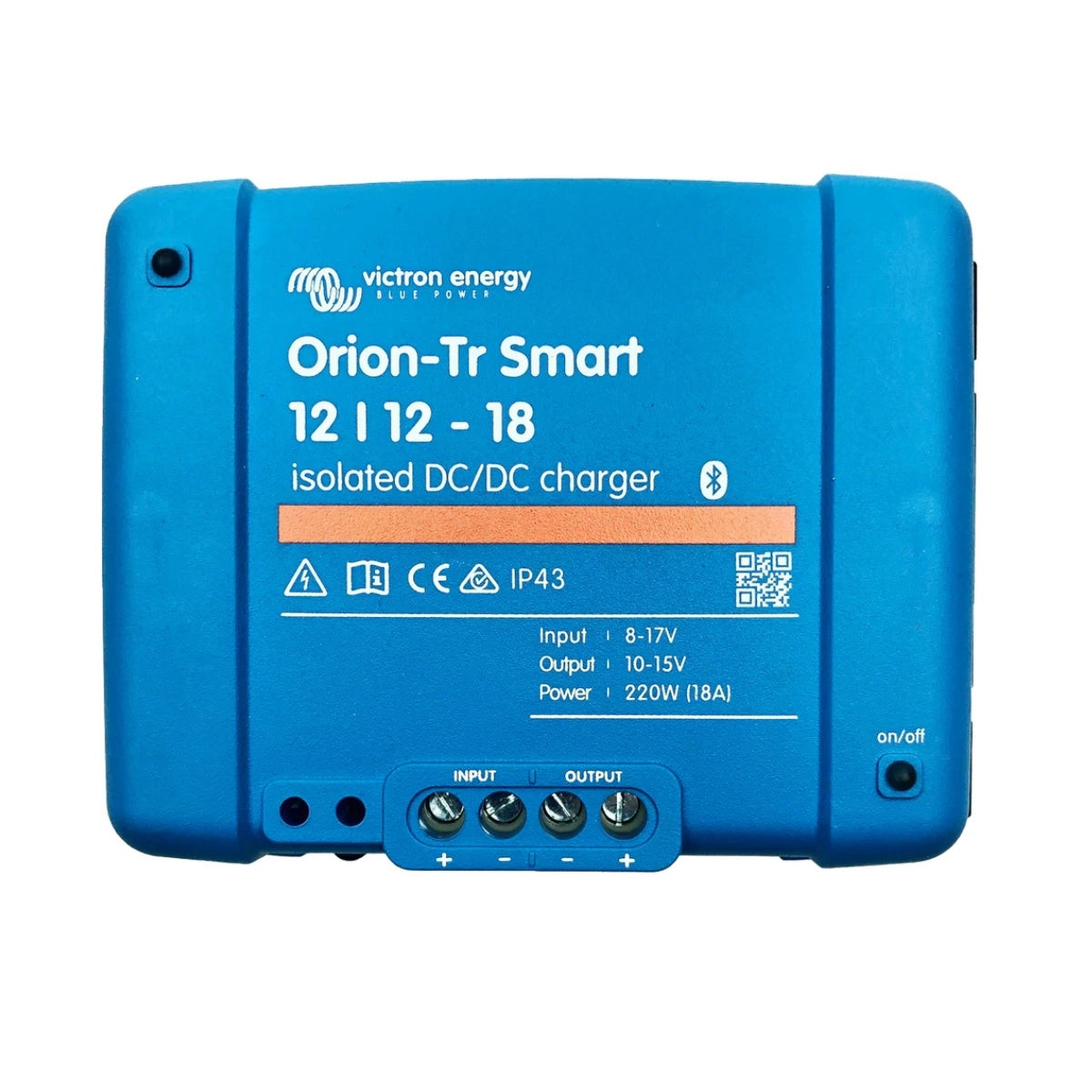

Reliable isolated DC-DC charger with adaptive 3-stage charging, Bluetooth monitoring, and full protection for lead-acid and lithium batteries.
Features:
- Bluetooth-enabled for monitoring, configuration, and firmware updates.
- Fully programmable for different battery types and smart alternator compatibility.
- Adaptive 3-stage charging algorithm: bulk, absorption, float.
- Remote On/Off functionality via switch or relay.
- Short-circuit proof and parallelable for higher output.
- High-temperature protection with automatic current reduction.
- IP43 rated when installed correctly.
- Easy screw terminal installation; built-in input fuse for safety.
Specifications:
- Input Voltage Range: 8–17 V
- Under Voltage Shutdown: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10–15 V
- Output Voltage Tolerance: ±0.2 V
- Output Noise: 2 mV RMS
- Continuous Output Current at Nominal Output Voltage and 40 °C: 18 A
- Maximum Output Current (10 s) at Nominal Output Voltage Minus 20 %: 25 A
- Short Circuit Output Current: 40 A
- Continuous Output Power at 25 °C: 280 W
- Continuous Output Power at 40 °C: 220 W
- Efficiency: 87 %
- No Load Input Current: < 80 mA
- Standby Current: < 80 mA
- Can Be Used as Power Supply: Yes, output voltage can be set with Bluetooth
- Galvanic Isolation: 200 VDC between input, output, and case
- Operating Temperature Range: -20 to +55 °C (derate 3 % per °C above 40 °C)
- Humidity: Max. 95 % non-condensing
- DC Connection: Screw terminals
- Maximum Cable Cross-Section: 16 mm² / AWG6
- Weight: 1.3 kg (3 lb)
- Dimensions (HxWxD): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
- Protection Category: IP43 (electronic components), IP22 (connection area)
-
Standards Compliance:
- Safety: EN 60950
- Emission / Immunity: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5
