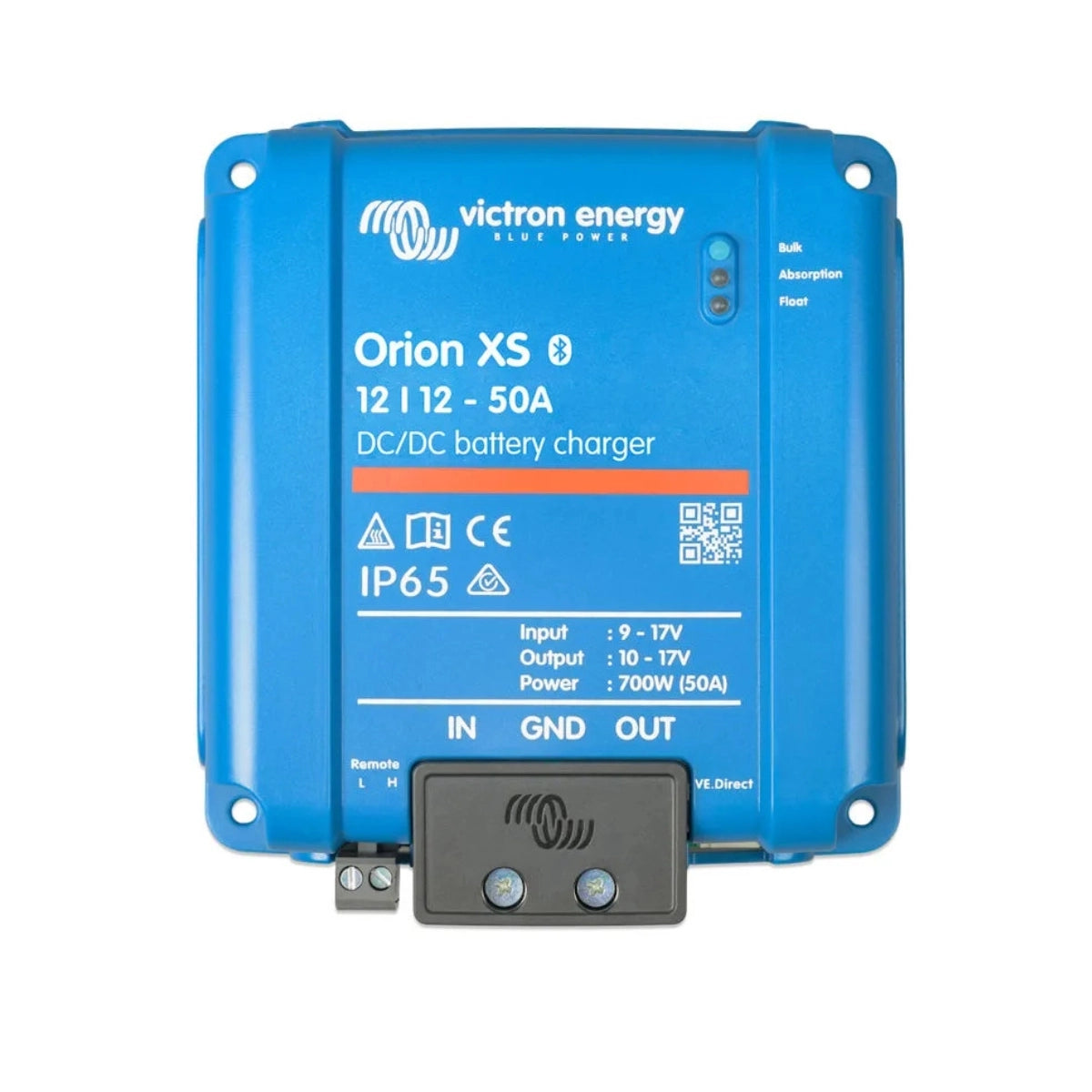

The Victron Orion XS sets a new benchmark in adaptive DC-DC battery charging. Purpose-built for dual battery systems with intelligent alternators, it ensures efficient, safe, and precise charging in vehicles, boats, and RVs. Engineered with advanced protection and smart connectivity, the Orion XS guarantees reliable performance even in challenging conditions such as Euro 5/6 alternator setups or installations with long cable runs.
Features:
- Adaptive DC-DC charging – Optimised for dual battery systems, compatible with Euro 5/6 smart alternators.
- Adjustable charge current – Fine-tune charging in 0.1A increments using the VictronConnect App.
- Adaptive 4-stage charge algorithm – Automatically adjusts absorption time to prevent overcharging after shallow discharges and ensure full recharge after deep discharges.
- Battery compatibility – Eight pre-programmed settings plus fully programmable algorithms for different battery chemistries (including lithium).
- Low temperature and undervoltage protection – Automatically disables charging to prevent lithium battery damage or starter battery over-discharge.
- Remote on/off control – Switchable via wired remote input or VictronConnect App, ideal for integration with a BMS or manual control.
- Comprehensive protection – Safeguards against overload, short circuits, overheating, and excessive temperatures with automatic recovery.
- Parallel connection capability – Connect unlimited units in parallel for increased output current.
- Bluetooth Smart built-in – Wireless monitoring, configuration, and firmware updates via Apple or Android devices.
- Instant readout – View live data, warnings, and alarms on the VictronConnect Device List without connecting to the charger.
- VE.Smart Networking – Optimises charging parameters using Vsense, Tsense, and Isense data from other Victron devices like SmartShunt or Smart Battery Sense.
- VE.Direct port & DVCC – Enables wired integration with GX devices (Cerbo GX, Ekrano GX, etc.) for advanced system control, diagnostics, and remote monitoring via VRM Portal.
-
IP65 protection – Dust-tight and resistant to heavy rain, ensuring reliability in demanding environments
Specifications:
- Input voltage range: 9–17 V
- Output voltage adjust range: 10–17 V
- Output voltage tolerance: ±0.25% (max)
- Output voltage noise: 10 mV rms
- Input and output current setting range: 1–50 A
- Maximum constant short-circuit current: 50 A
- Continuous output power (up to 40 °C): 700 W
- Maximum efficiency: 98.5%
- No-load current consumption: < 100 mA
- Standby current consumption: < 1.5 mA
- Can be used as power supply: Yes, output voltage adjustable via VictronConnect App
Communication
- VictronConnect App / Bluetooth Smart: Yes
- VE.Smart Networking: Yes
- VE.Direct: Yes (including DVCC)
Environmental
- Operating temperature range: -20 °C to +60 °C (derating 1.5% per °C above 40 °C)
- Humidity: 95% (non-condensing)
- Maximum altitude: 2000 m
- Pollution degree: PD2
- Overvoltage category: OVC 1
Connections & Build
- DC connection: Screw terminals
- Maximum cable cross-section: 4 AWG (21.2 mm²)
- Weight: 0.330 kg (0.73 lb)
- Dimensions (H × W × D): 137.3 × 123.1 × 40 mm (5.4 × 4.85 × 1.6 in)
- Protection category: IP65
Standards
- Safety: IEC 62477-1
- EMC: EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003 (pending)
- Automotive Directive: ECE R10-6 (pending)
