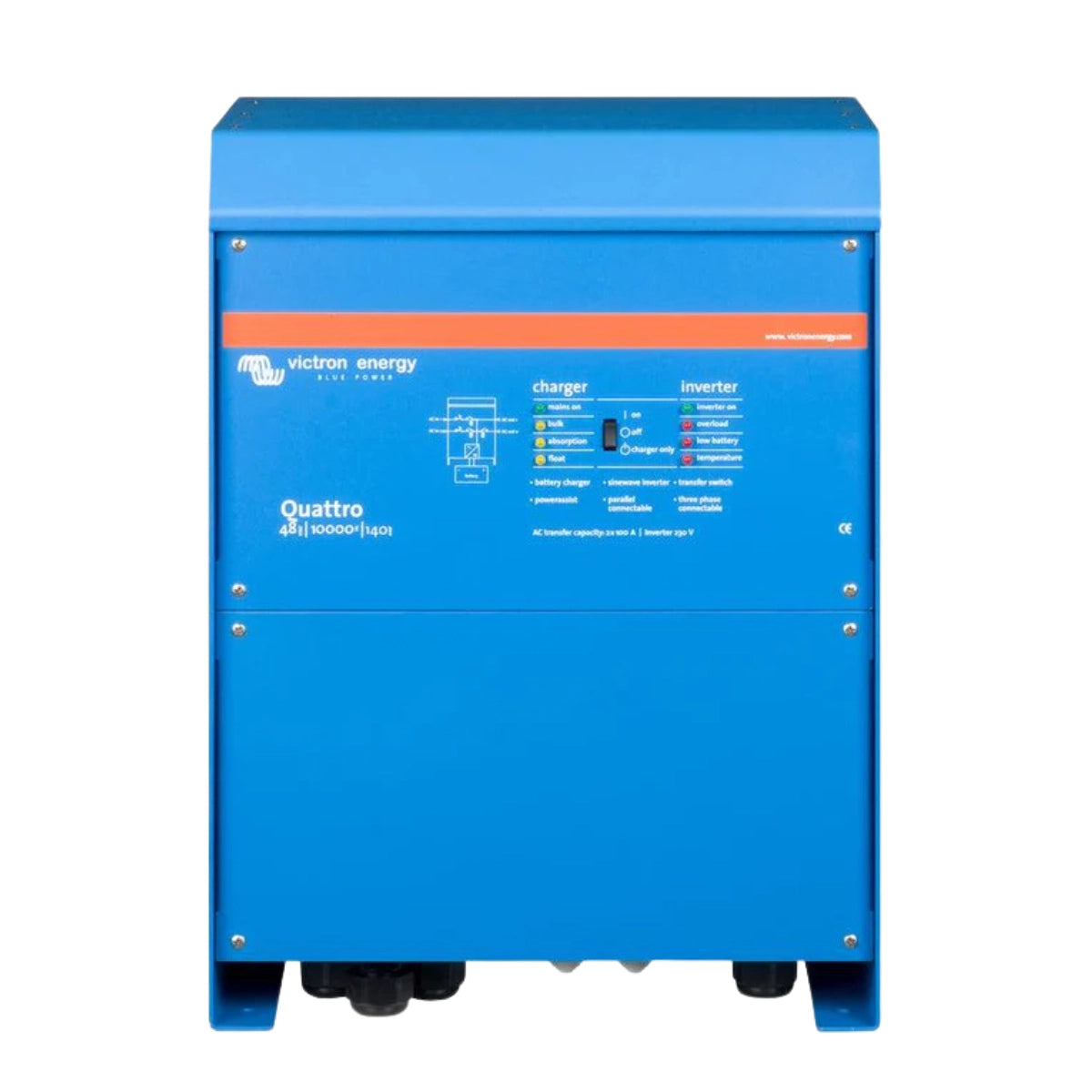

The Victron Quattro is a powerful all-in-one inverter and charger designed for advanced energy systems. Similar to the MultiPlus, it combines a true sine wave inverter and adaptive charger in one compact unit — but with added flexibility. The Quattro can accept two independent AC inputs (for example, from grid and generator) and automatically connect to the active source.

Product Features:

• Dual AC Inputs – Connect to two independent power sources (e.g., grid and generator); automatically switches to the active source.
• Two AC Outputs – Main output offers seamless power transfer (<20 ms); second output powers non-critical loads only when AC is available.
• Split Phase Option – Create a 240V/60Hz split phase setup using an autotransformer.
• Three-Phase Capability – Combine up to 12 units for 144 kW / 180 kVA output and 2400 A charging capacity.
• PowerControl – Prevents overloads by limiting current draw from shore or generator power.
• PowerAssist – Boosts limited power sources by combining battery and AC power during peak demand.
• Solar Ready – Works with off-grid or grid-connected PV systems; provides AC power even during grid outages.
• Easy Configuration – Quick setup via DIP switches or VE.Bus software tools.
• Smart Monitoring – On-site or remote control via GX devices, smartphone, or VRM Online Portal for real-time performance tracking and remote adjustments.

Specifications:

General

• Nominal Battery Voltage: 48 V

• PowerControl / PowerAssist: Yes

• Integrated Transfer Switch: Yes

• AC Inputs: 2 × independent inputs

• Input Voltage Range: 187 – 250 VAC

• Input Frequency: 50 / 60 Hz

• Maximum Feed Through Current: 2 × 100 A

• Power Factor: > 0.8

• Protection Category: IP20

Inverter

• Input Voltage Range: 38 – 66 VDC

• Output Voltage: 230 VAC ±2%

• Frequency: 50 Hz ±0.1% (adjustable to 60 Hz)

• Continuous Output Power at 25°C: 10,000 VA (8,000 W)

• Continuous Output Power at 40°C: 6,500 W

• Continuous Output Power at 65°C: 4,500 W

• Peak Power: 20,000 W

• Maximum Continuous Output Current: 37 A

• Maximum Output Fault Current: 100 A (1 sec)

• Maximum Efficiency: 96%

• Zero Load Power: 60 W

• AES Mode Power: 40 W

• Search Mode Power: 15 W

Charger

• Absorption Voltage: 57.6 V

• Float Voltage: 55.2 V

• Storage Mode Voltage: 52.8 V

• Battery Temperature Sensor: Yes

Environmental

• Operating Temperature: -20°C to +60°C

• Humidity (Non-Condensing): Max 95%

• Maximum Altitude: 2000 m

Connections & Interfaces

• Battery Connections: 4 × M8 Bolts (2 positive, 2 negative)

• AC Connection: Screw terminals 13 mm² (6 AWG)

• Programmable Relays: 3 ×

• Communication Ports: VE.Bus, 2 × General Purpose, Remote On/Off

• Monitoring Options: GX devices (Cerbo GX, Ekrano GX) with VRM online access

Physical

• Weight: 51 kg

• Dimensions (H × W × D): 470 × 350 × 280 mm

• Material & Colour: Aluminium, Blue (RAL 5012)

Standards & Safety

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1

• EMC Compliance: EN 55014-1 / 2, EN-IEC 61000-3-2 / 3, IEC 61000-6-1 / 2 / 3

• Protection Features: Output short circuit, overload, battery over/under voltage,
• over-temperature, input voltage ripple too high, 230 VAC detected on inverter output
