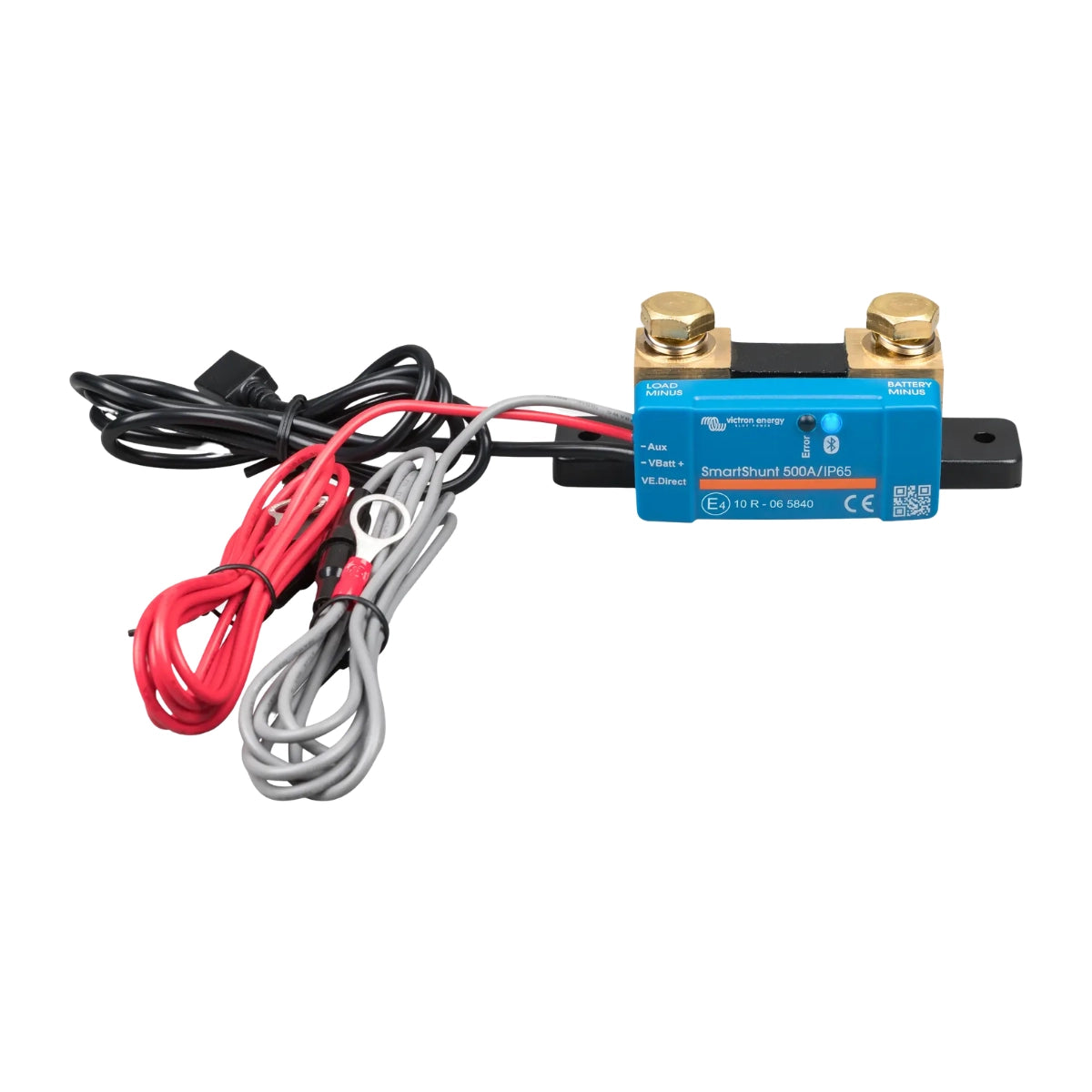

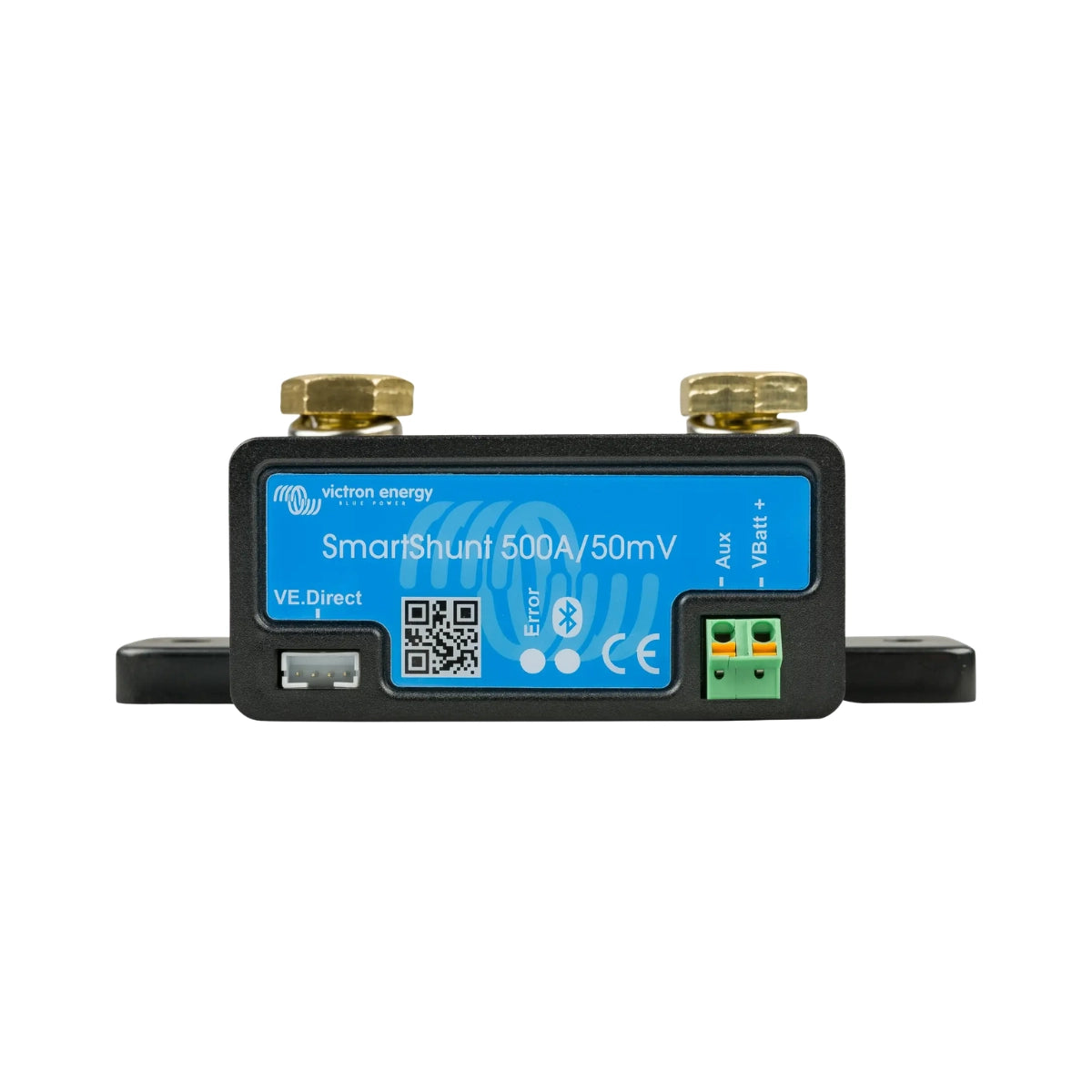

Victron SmartShunt IP65 500A/50mV IP65
Victron SmartShunt IP65 500A/50mV IP65
Couldn't load pickup availability
Victron SmartShunt IP65 500A/50mV IP65
The SmartShunt is an intelligent battery monitor providing detailed usage insights via the VictronConnect app. Compatible with any battery type, it's available in IP-rated versions and easily (retro) fitted without cable clutter. By measuring voltage and current, it calculates battery state of charge and remaining runtime. Alternatively, it works as a DC meter, monitoring inverter input, or loads like fridges and pumps. Data appears instantly in the VictronConnect app without Bluetooth pairing delays. VE.Smart Networking supports wireless data sharing with other Victron devices to improve charging efficiency. Connecting to a communication centre allows remote monitoring and control via our VRM portal.
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
- Supply voltage rang - 6.5 - 70 VDC
- Current draw - <1 mA
- Input voltage range, auxiliary battery - 6.5 - 70 VDC
- Battery capacity (Ah) 1- 9999 Ah
- Operating temperature range -40 +50 °C (-40 – 120 °F)
- Measures voltage of second battery, or temperature, or midpoint - Yes
- Temperature measurement range -20 +50 °C
- VE.Direct communication port - Yes
- Cables - Two 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection
- VE.Direct cable - 1.5 m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device.
- Temperature sensor- Optional (ASS000100000)
IMPORTANT NOTICE
IMPORTANT NOTICE
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.
The images shown are for illustration purposes only and may not be an exact representation of the product.
