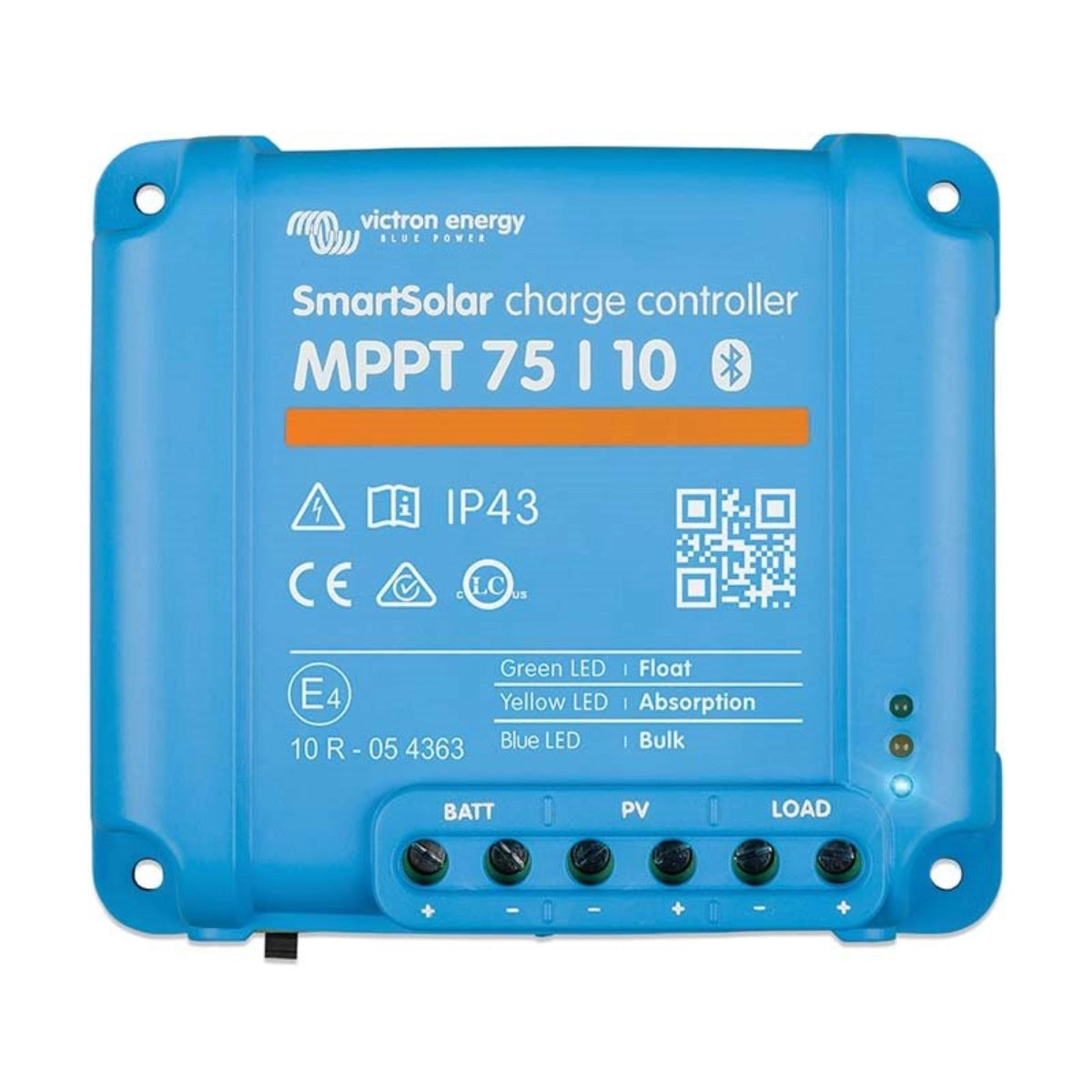

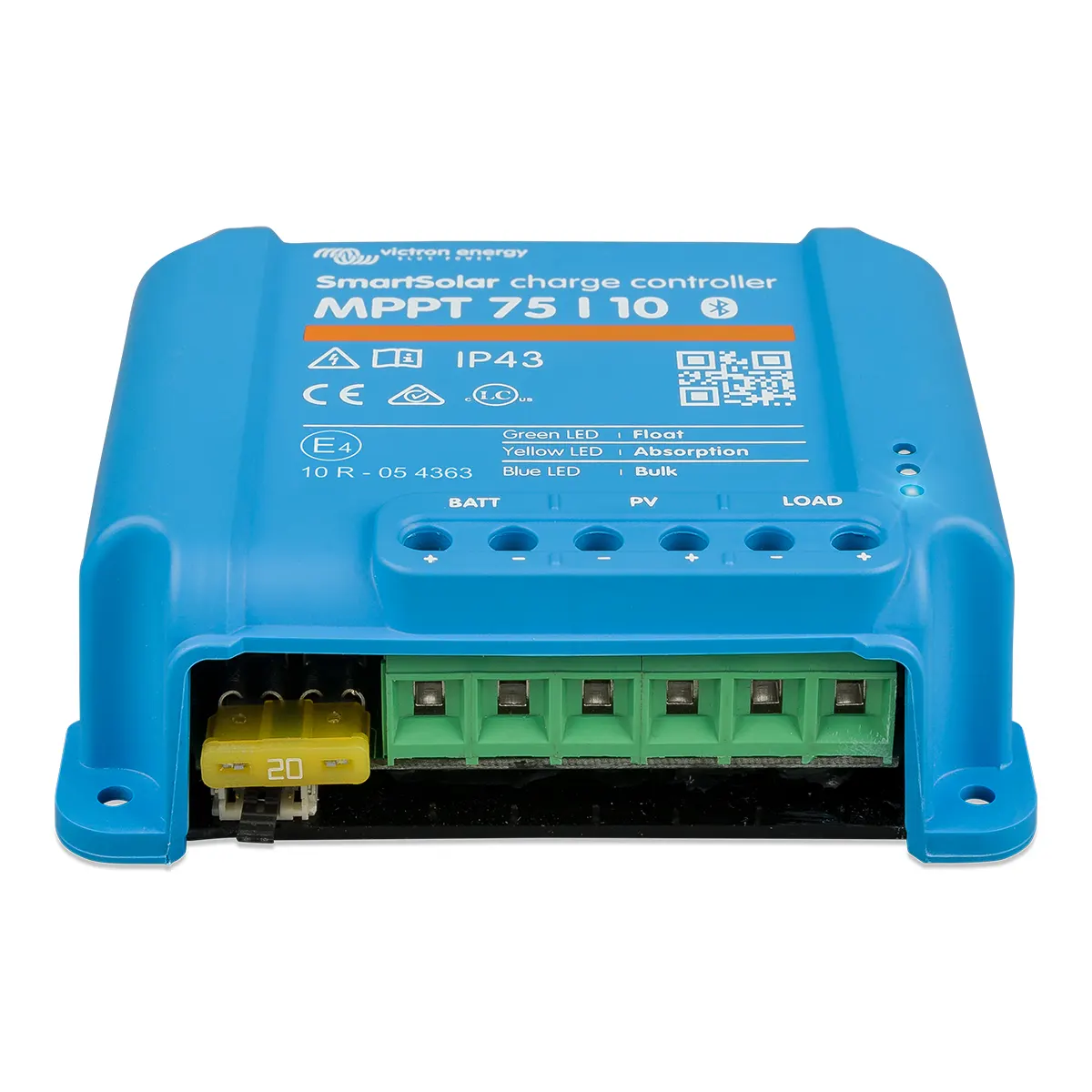

Victron SmartSolar MPPT 75/10

Victron SmartSolar MPPT 75/10

R 902.00
R 902.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Victron SmartSolar Charge Controller with Load Output MPPT 75/10

Product Features:

  • Bluetooth Smart built-in
    • The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
  • VE.Direct
    • For a wired data connection to a Color Control GX, other GX products, PC or other devices.
  • Ultra-fast Maximum Power Point Tracking (MPPT)
    • Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.

PRODUCT SPECIFICATIONS

- Battery voltage (auto select) - 12/24 V
- Rated charge current - 10 A
- Nominal PV power, 12 V (See Note 1a,b) 145 W
- Nominal PV power, 24 V (See Note 1a,b) 290 W
- Max. PV short circuit current (See Note 2) 13 A
- Automatic load disconnect - Yes
- Max. PV open circuit voltage - 75 V
- Peak efficiency - 98 %
- Self-consumption – load on 12 V: 19 mA 24 V: 16 mA
- Self-consumption – load off 12 V: 10 mA 24 V: 8 mA
- Charge voltage 'absorption' 14,4 V / 28,8 V (adjustable)
- Charge voltage 'float' 13,8 V / 27,6 V (adjustable)
- Charge algorithm - multi-stage adaptive
- Temperature compensation -16 mV / °C resp. -32 mV / °C
- Max. continuous load current - 15 A
- Protection - Output short circuit / Over temperature
- Operating temperature -30 to +60 °C (full rated output up to 40 °C)
- Humidity - 95 %, non-condensing
- Data communication port - VE.Direct (see the data communication white paper on our website)
- Data stored - Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
- Number of days trends data is stored - 46

NOTES:
1. If more PV power is connected, the controller will limit input power.
2. The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V
3. A PV array with a higher short circuit current may damage the controller.
