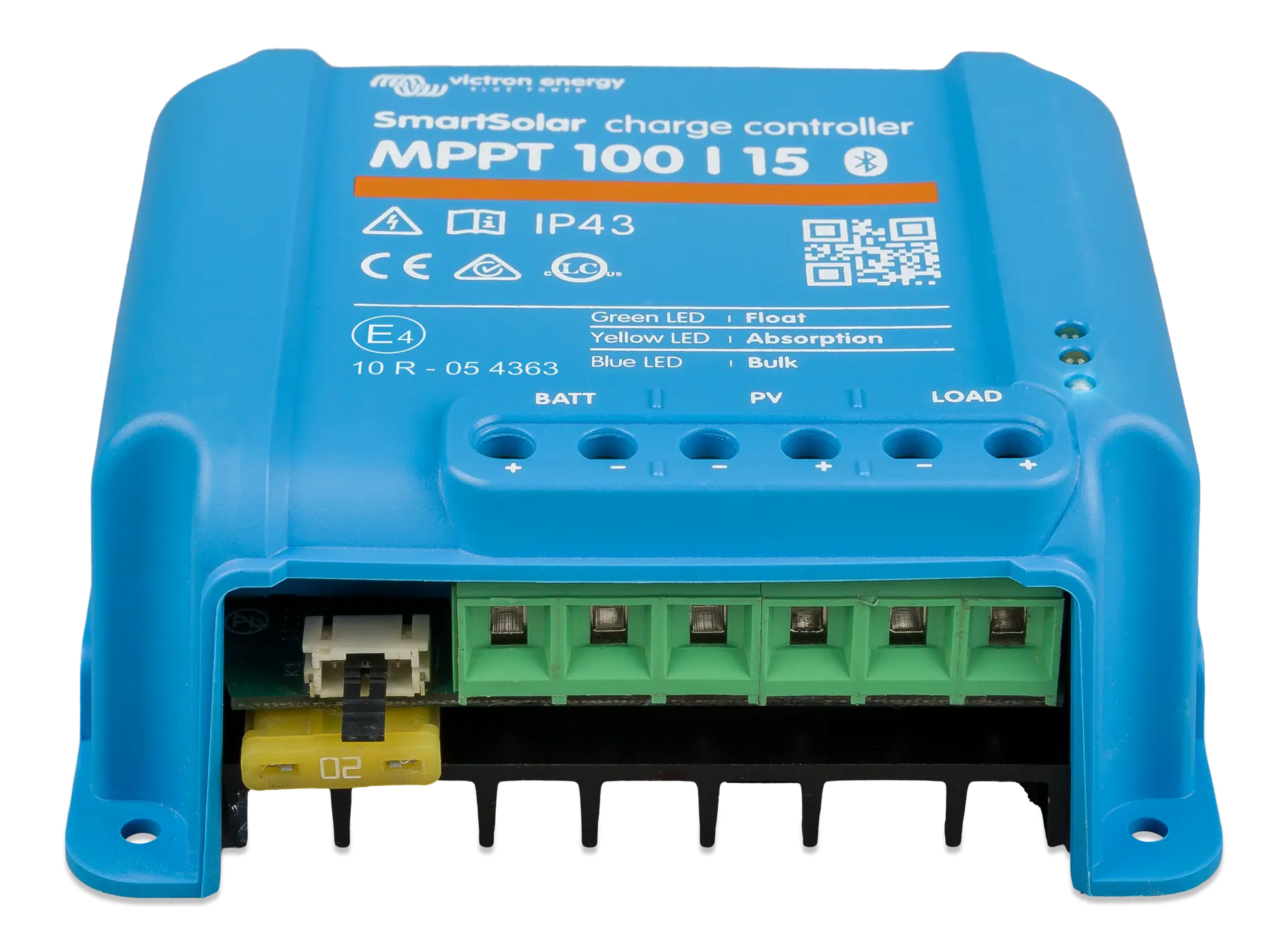

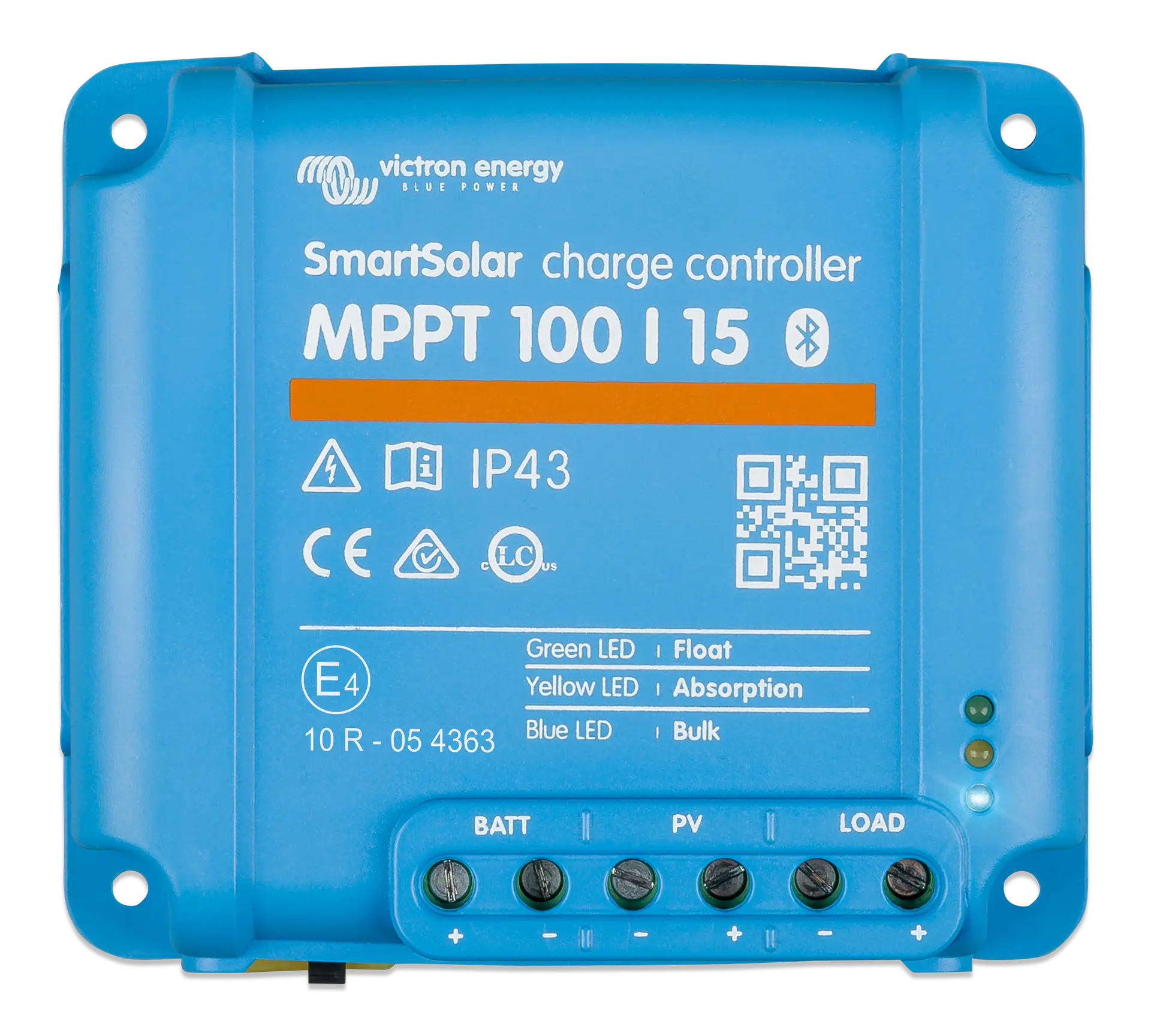

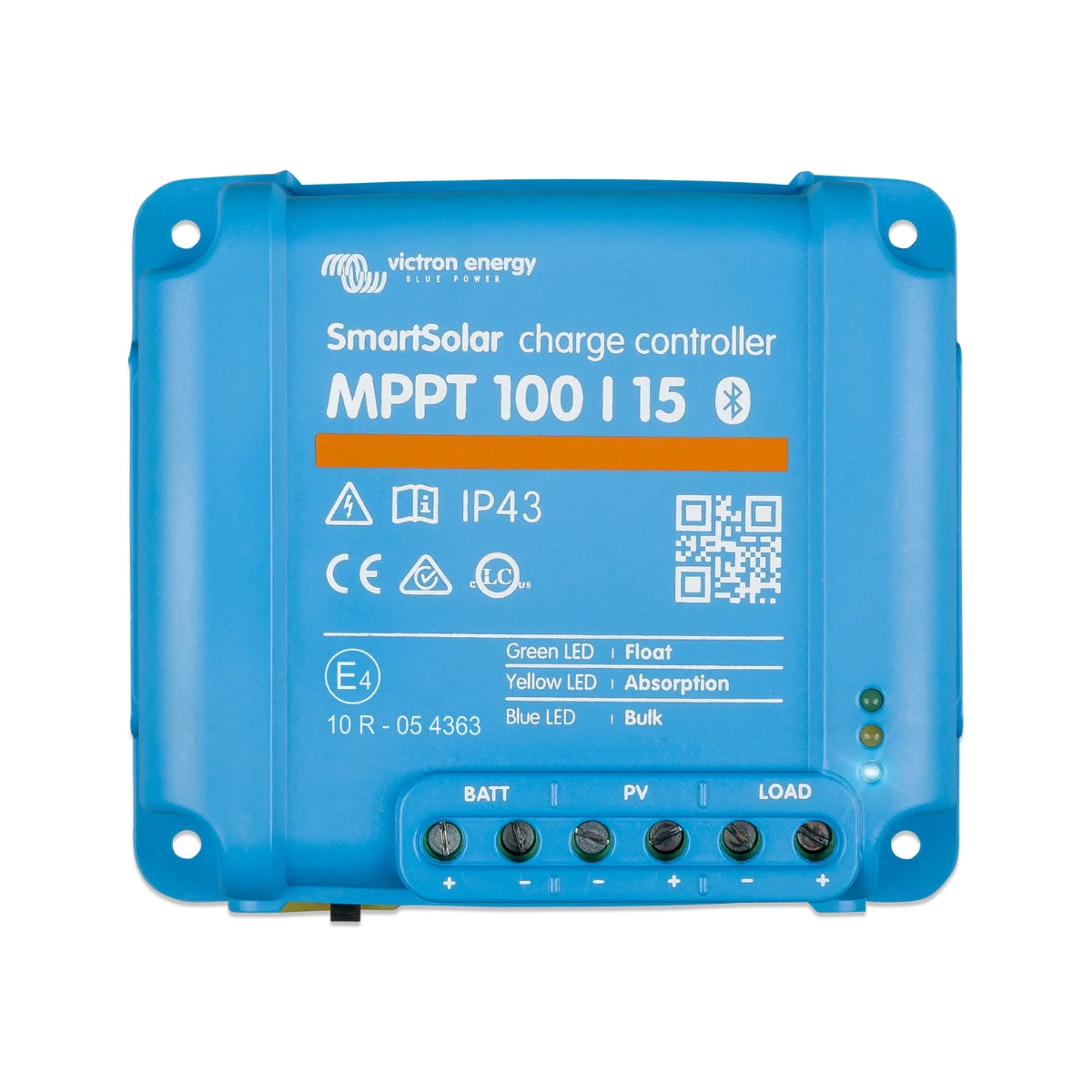

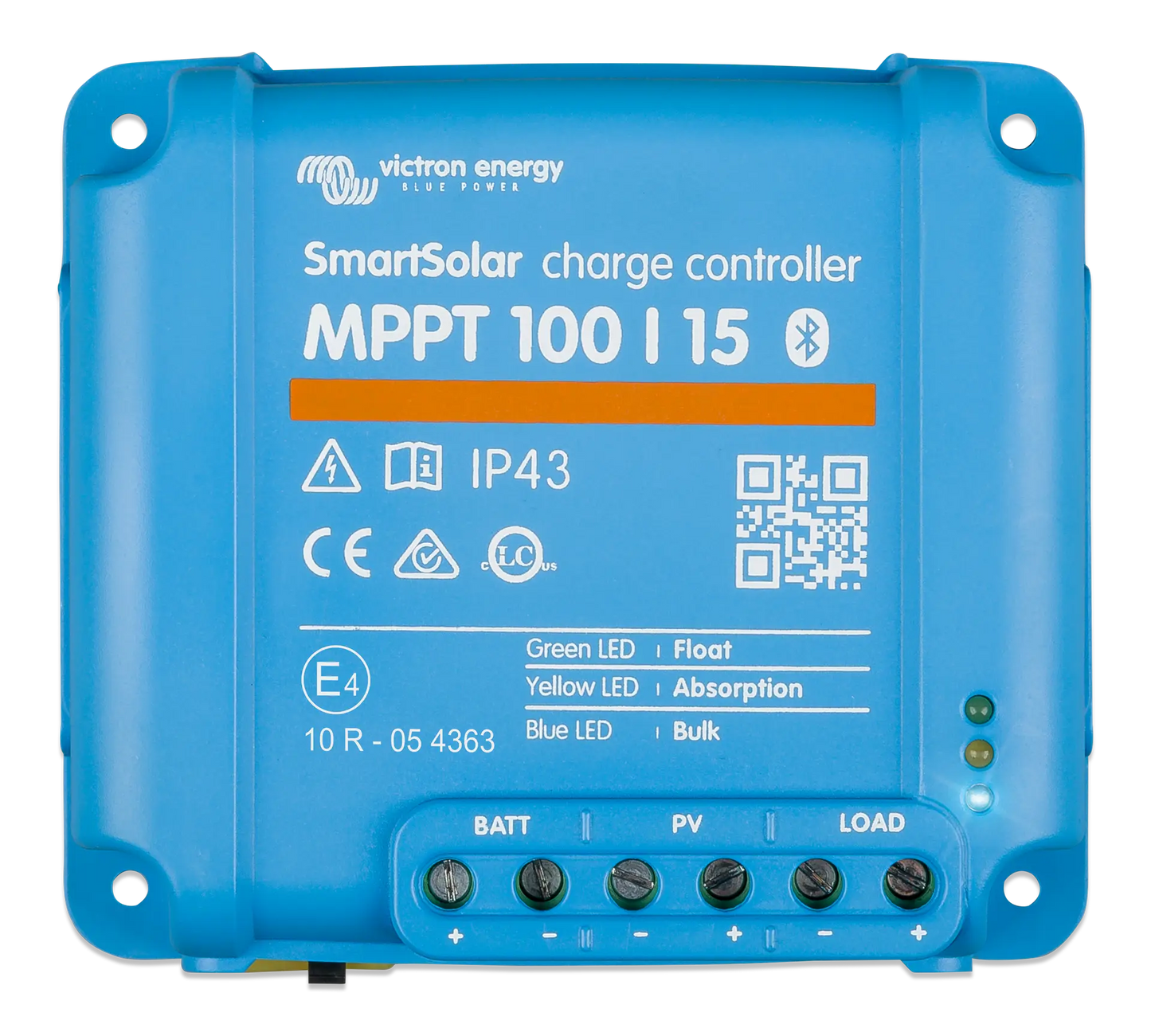

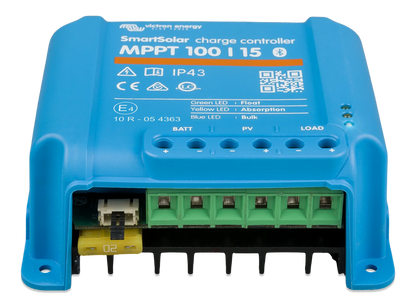

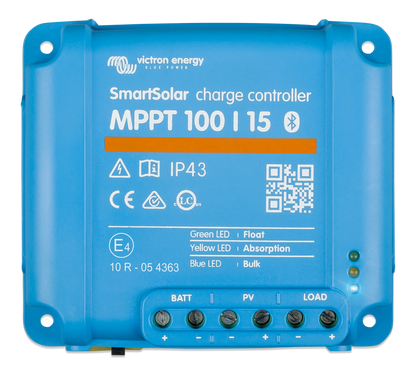

Victron SmartSolar MPPT 100/15

- Battery voltage (auto select) - 12/24 V
- Rated charge current - 15 A
- Nominal PV power, 12 V(See Note 1a,b) 220 W
- Nominal PV power, 24 V (See Note 1a,b) 440 W
- Max. PV short circuit current(See Note 2) 15 A
- Automatic load disconnect - Yes
- Max. PV open circuit voltage - 100V
- Peak efficiency - 98 %
- Self-consumption – load on 12 V: 19 mA 24 V: 16 mA
- Self-consumption – load off 12 V: 10 mA 24 V: 8 mA
- Charge voltage 'absorption' 14,4 V / 28,8 V (adjustable)
- Charge voltage 'float' 13,8 V / 27,6 V (adjustable)
- Charge algorithm - multi-stage adaptive
- Temperature compensation-16 mV / °C resp. -32 mV / °C
- Max. continuous load current - 15 A
- Protection - Output short circuit / Over temperature
- Operating temperature -30 to +60 °C (full rated output up to 40 °C)
- Humidity - 95 %, non-condensing
- Data communication port - VE.Direct (see the data communication white paper on our website)
- Data stored- Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
- Number of days trends data is stored - 46

NOTES:
If more PV power is connected, the controller will limit input power.
The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V
A PV array with a higher short circuit current may damage the controller.

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.
