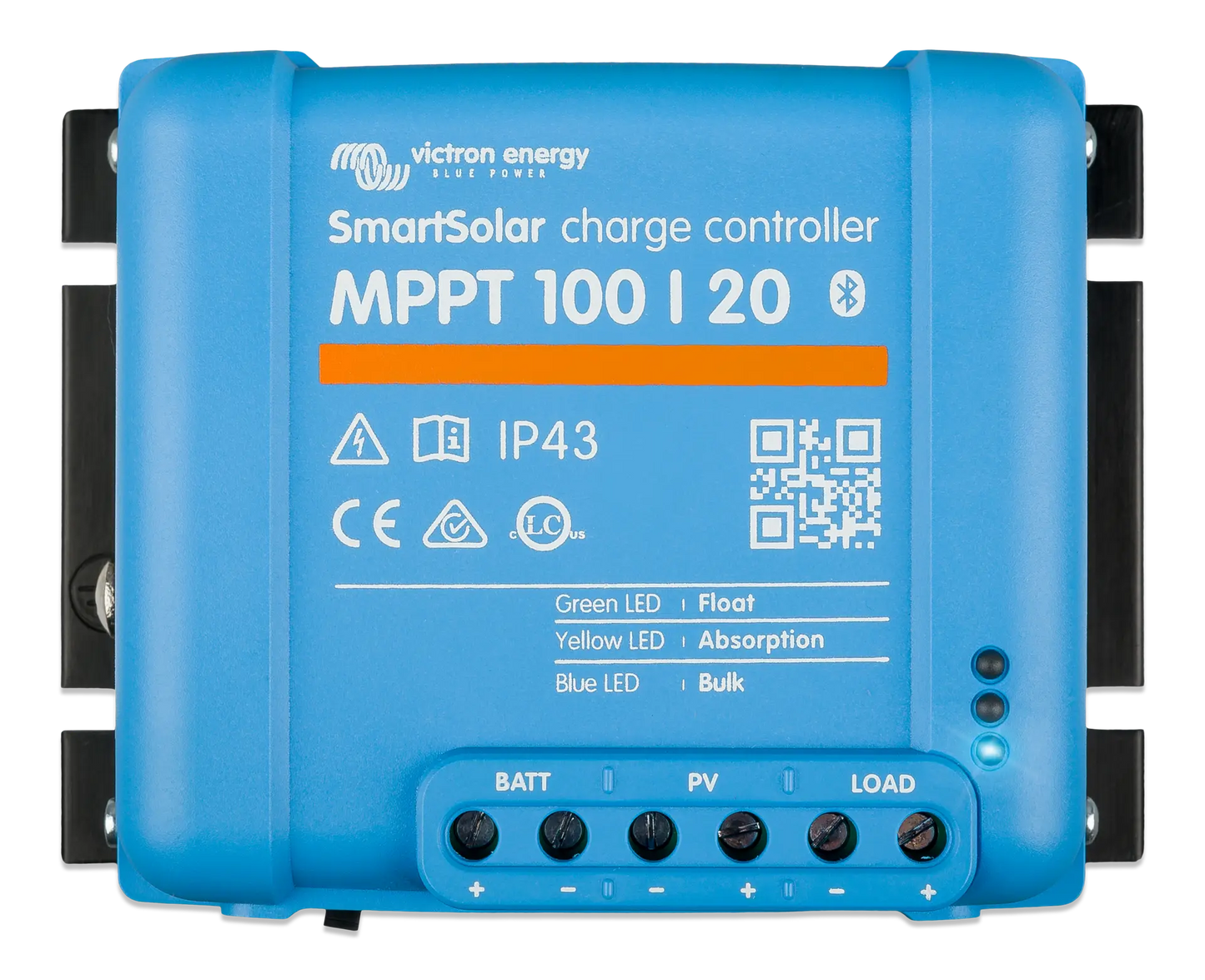

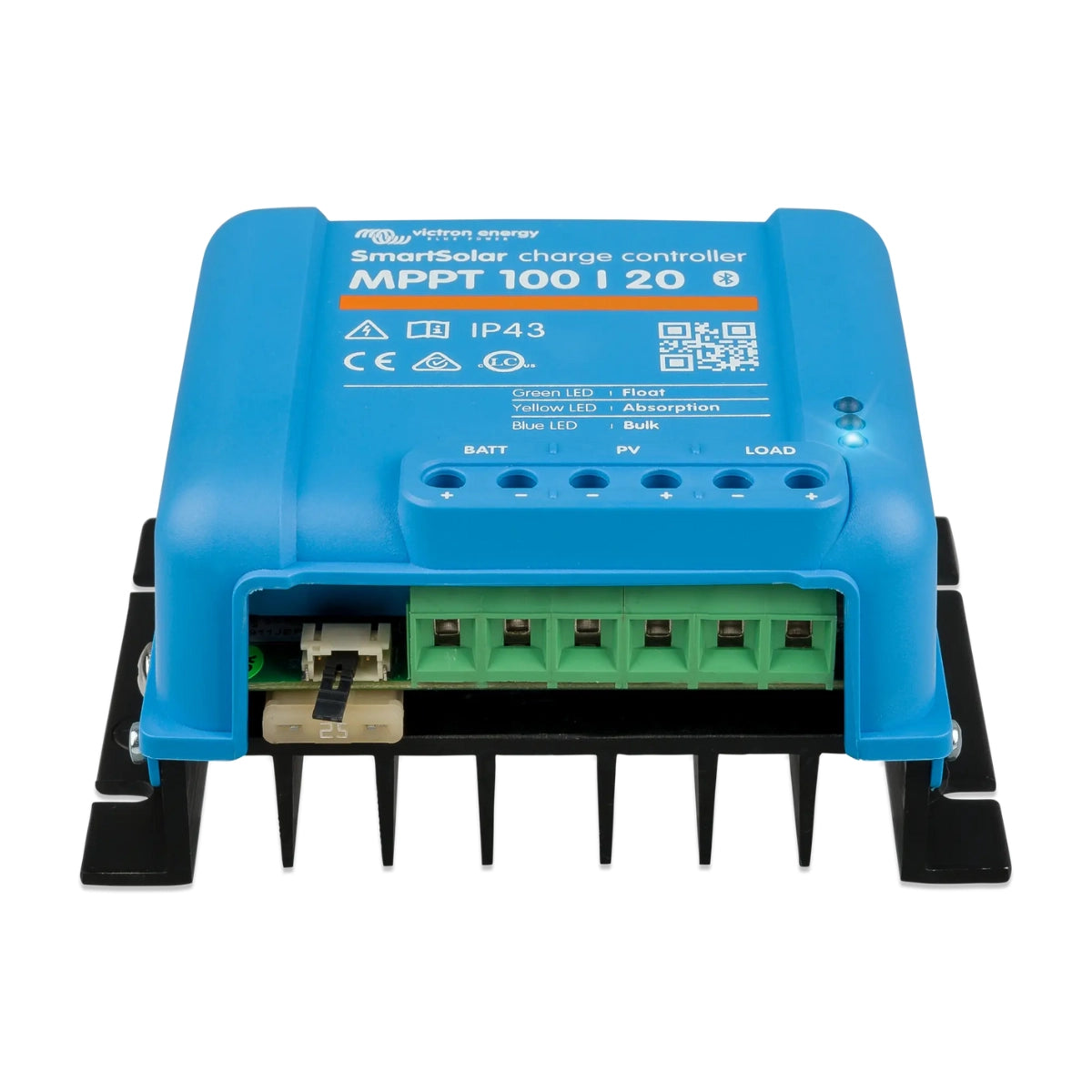

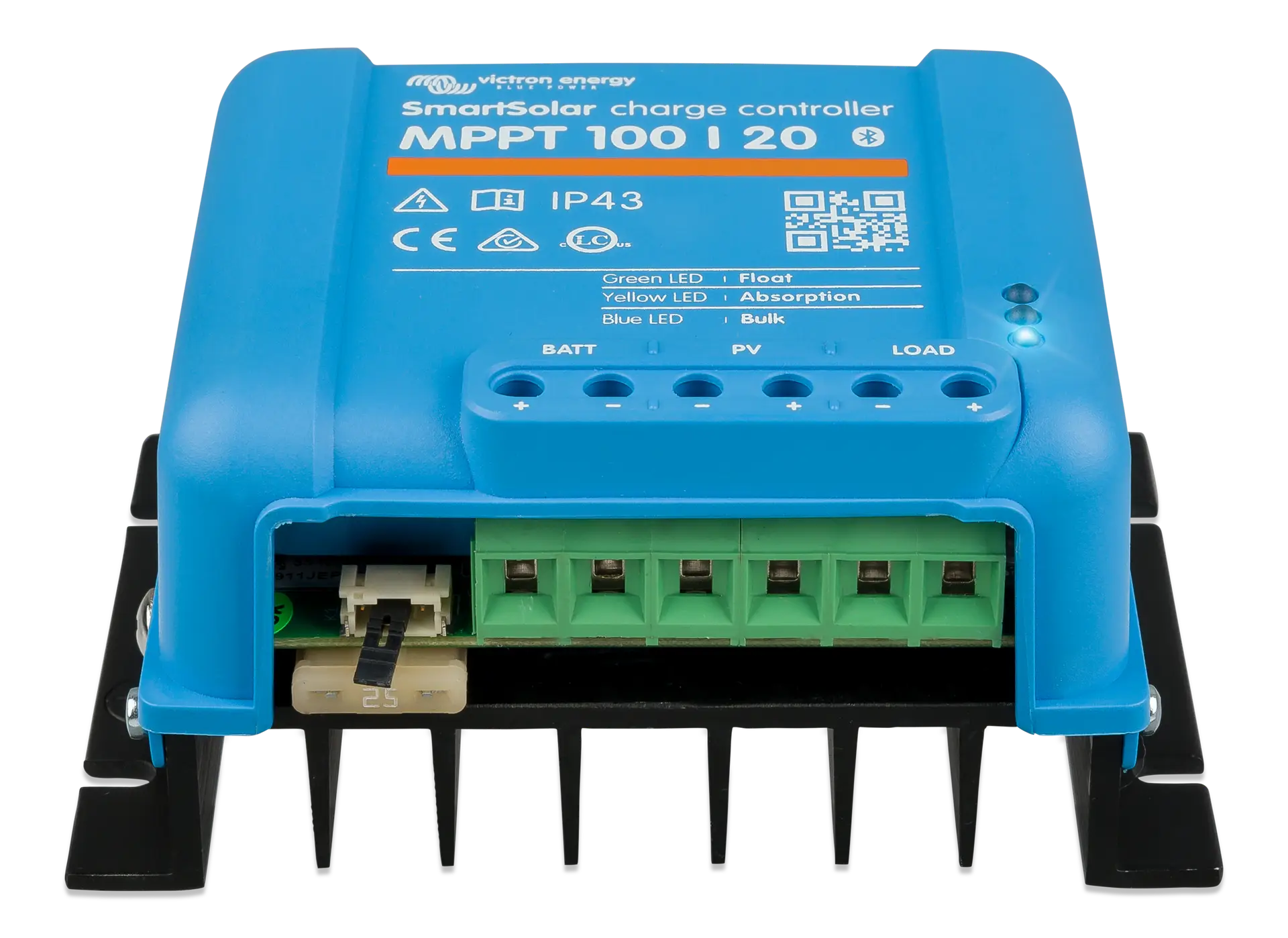

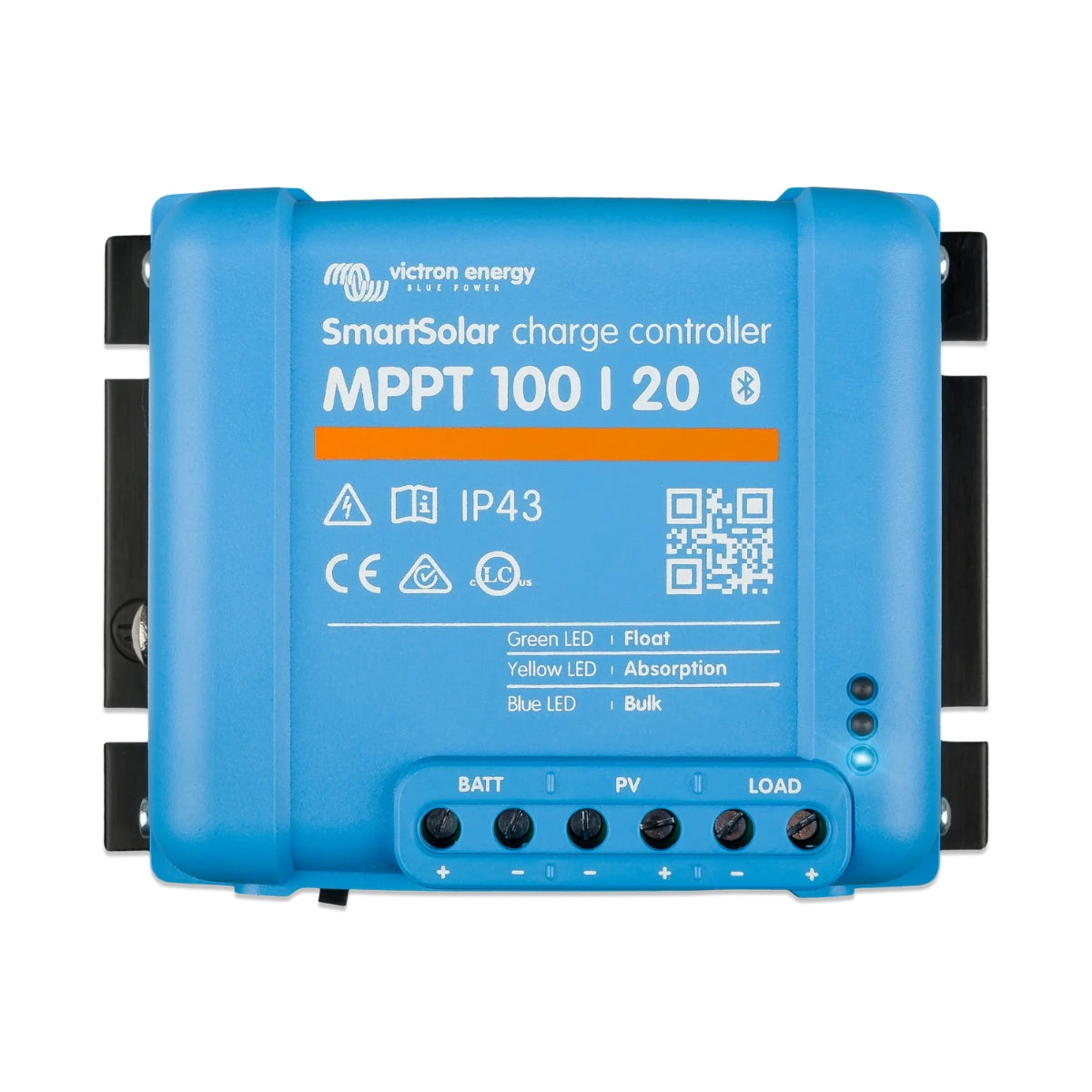

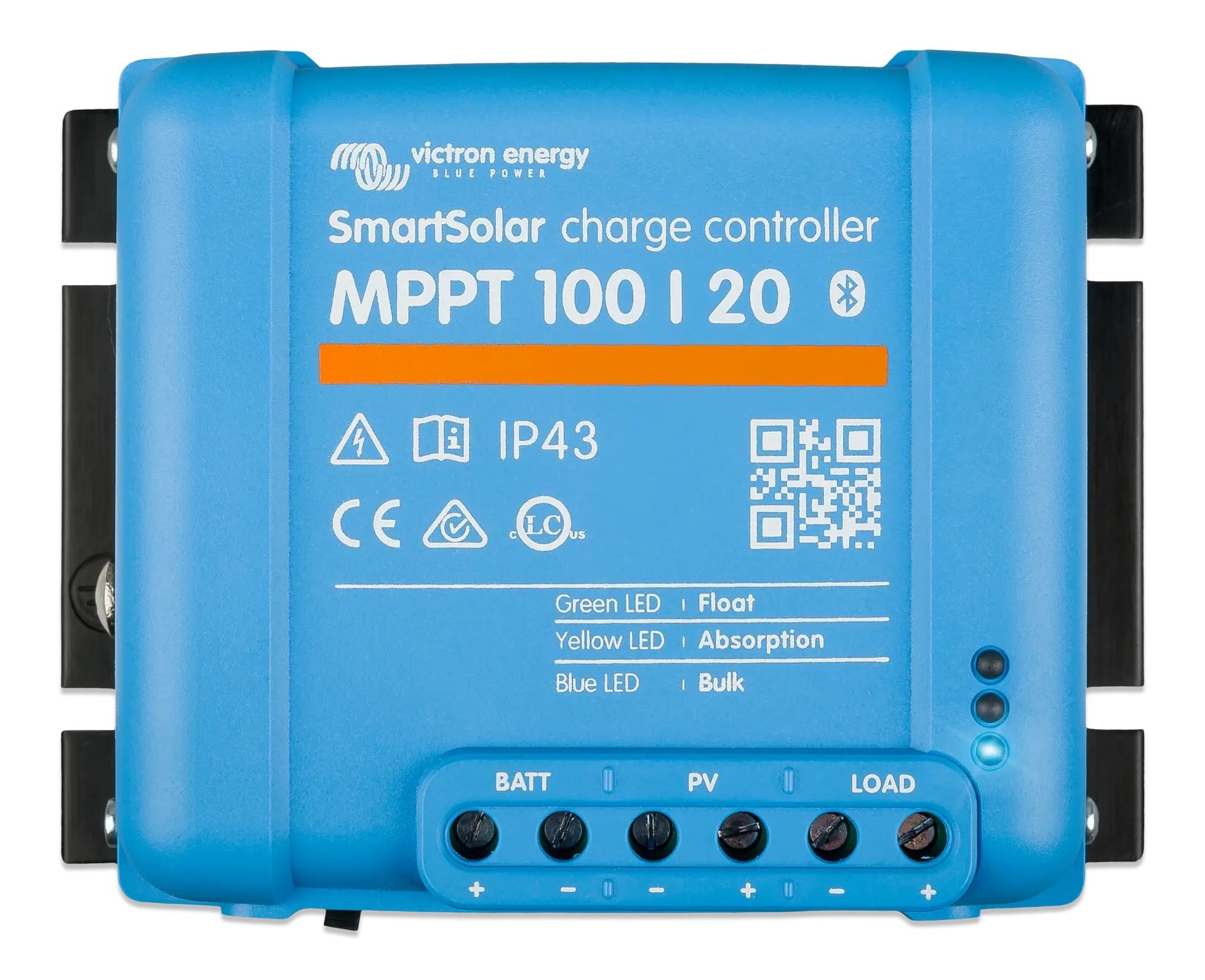

Victron SmartSolar MPPT 100/20 (up to 48V)

- Battery voltage (auto select) - 12/24/48 V
- Rated charge current - 20 A
- Nominal PV power, 12 V(See Note 1a,b) 290 W
- Nominal PV power, 24 V(See Note 1a,b) 580 W
- Nominal PV power, 48 V (See Note 1a,b) 1160 W
- Max. PV short circuit current(See Note 2) 20 A
- Automatic load disconnect - Yes
- Max. PV open circuit voltage - 100V
- Peak efficiency - 98 %
- Self-consumption – load on 26 / 20 / 19 mA
- Self-consumption – load off 10 / 8 / 7 mA
- Charge voltage 'absorption' 14,4 V / 28,8 V / 57.6 V (adjustable)
- Charge voltage 'float' 13,8 V / 27,6 V / 55.2 V (adjustable)
- Charge algorithm - multi-stage adaptive
- Temperature compensation -16 mV / °C resp. -32 mV / °C
- Max. continuous load current - 20A / 20A /1A
- Protection - Output short circuit / Over temperature
- Operating temperature -30 to +60 °C (full rated output up to 40 °C)
- Humidity - 95 %, non-condensing
- Data communication port - VE.Direct (see the data communication white paper on our website)
- Data stored - Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
- Number of days trends data is stored - 46

NOTES:
1 If more PV power is connected, the controller will limit input power.
2 The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V
3 A PV array with a higher short circuit current may damage the controller.

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
