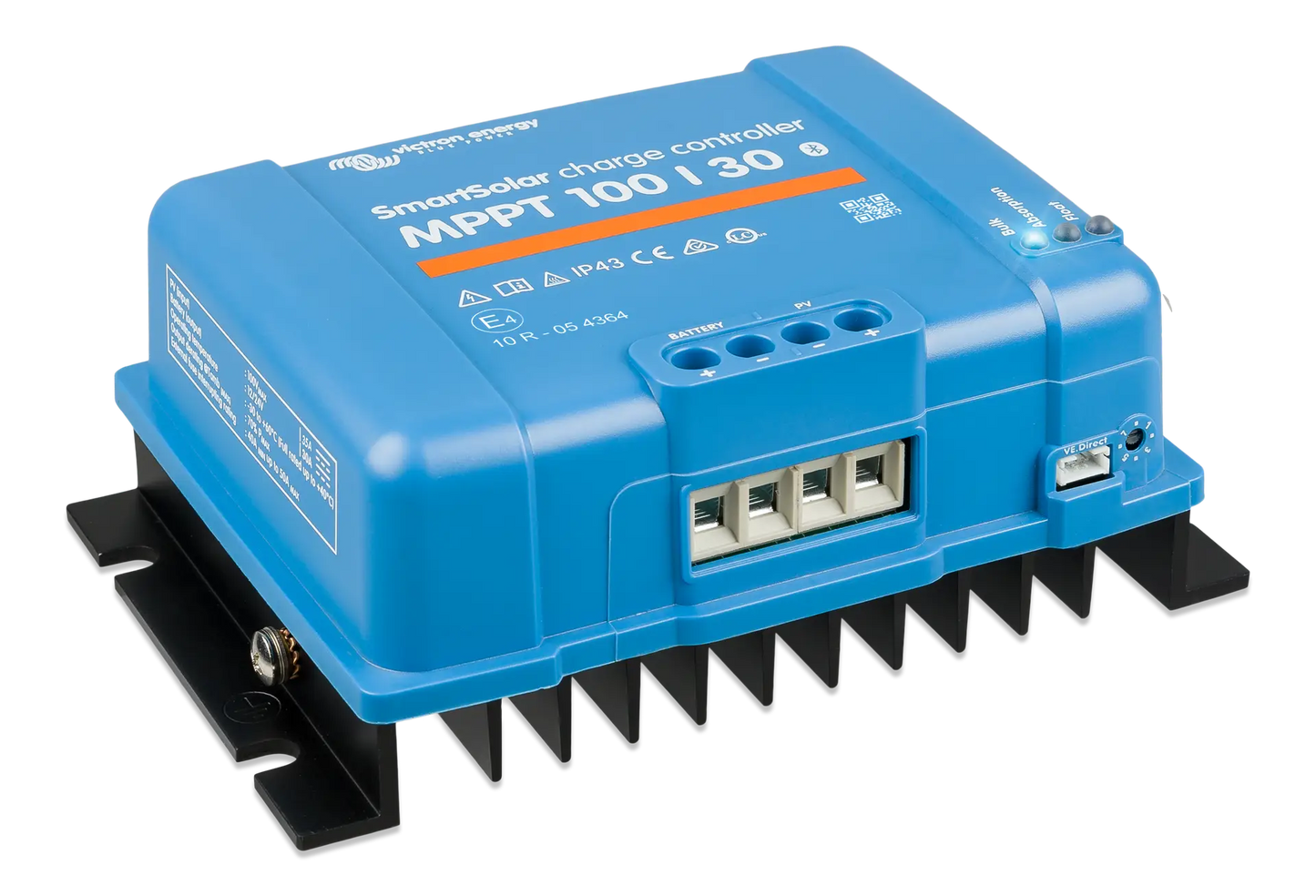

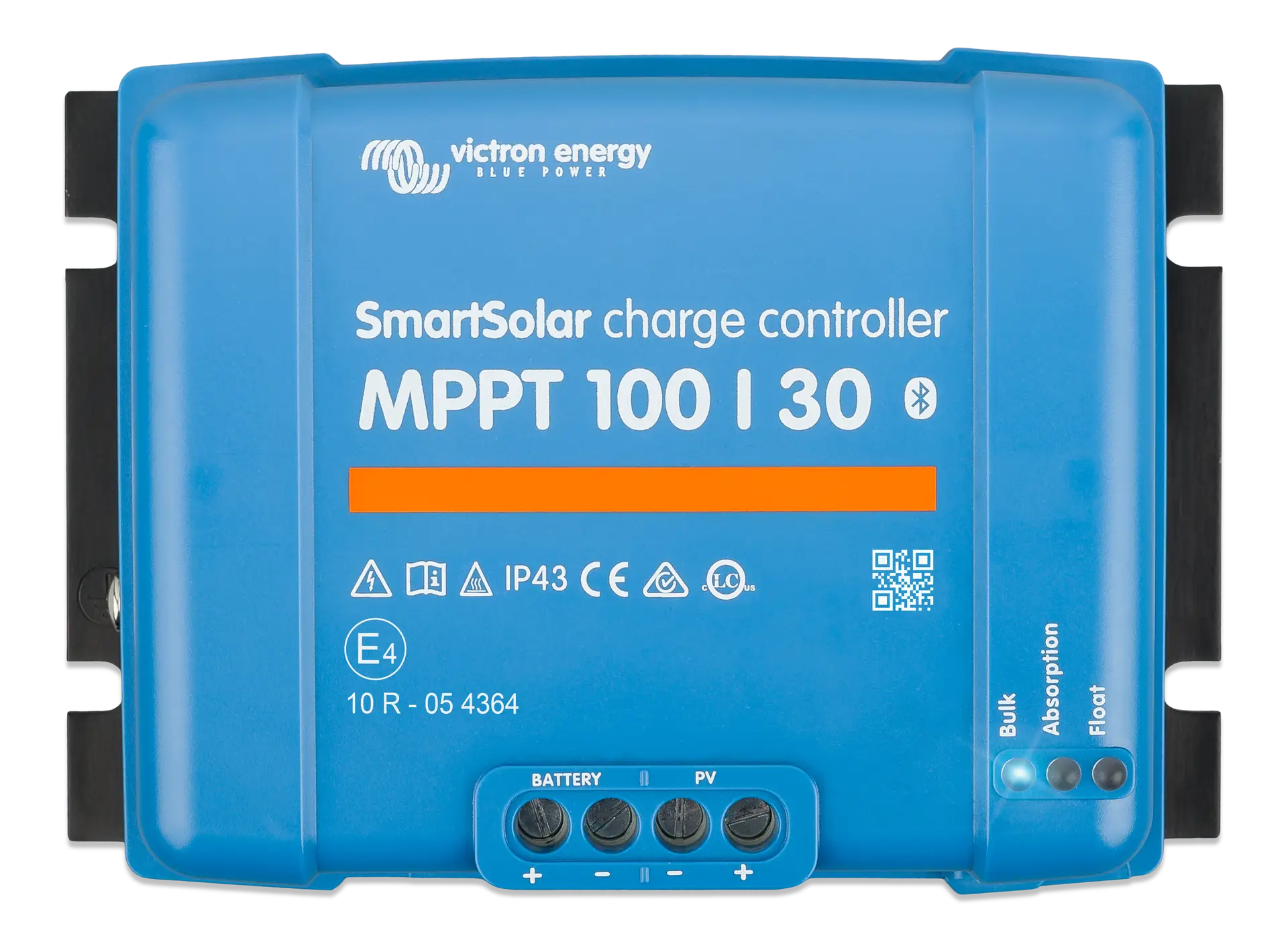

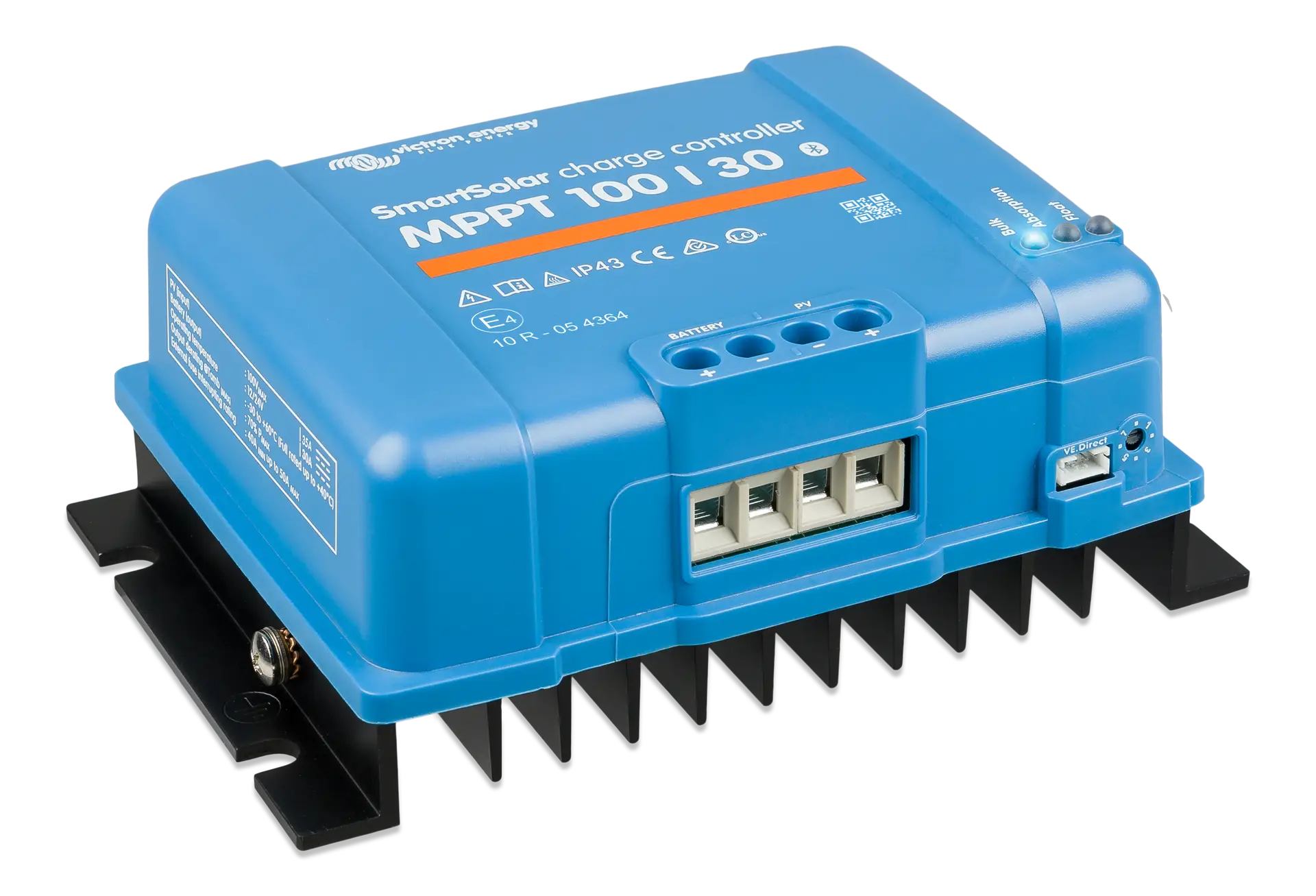

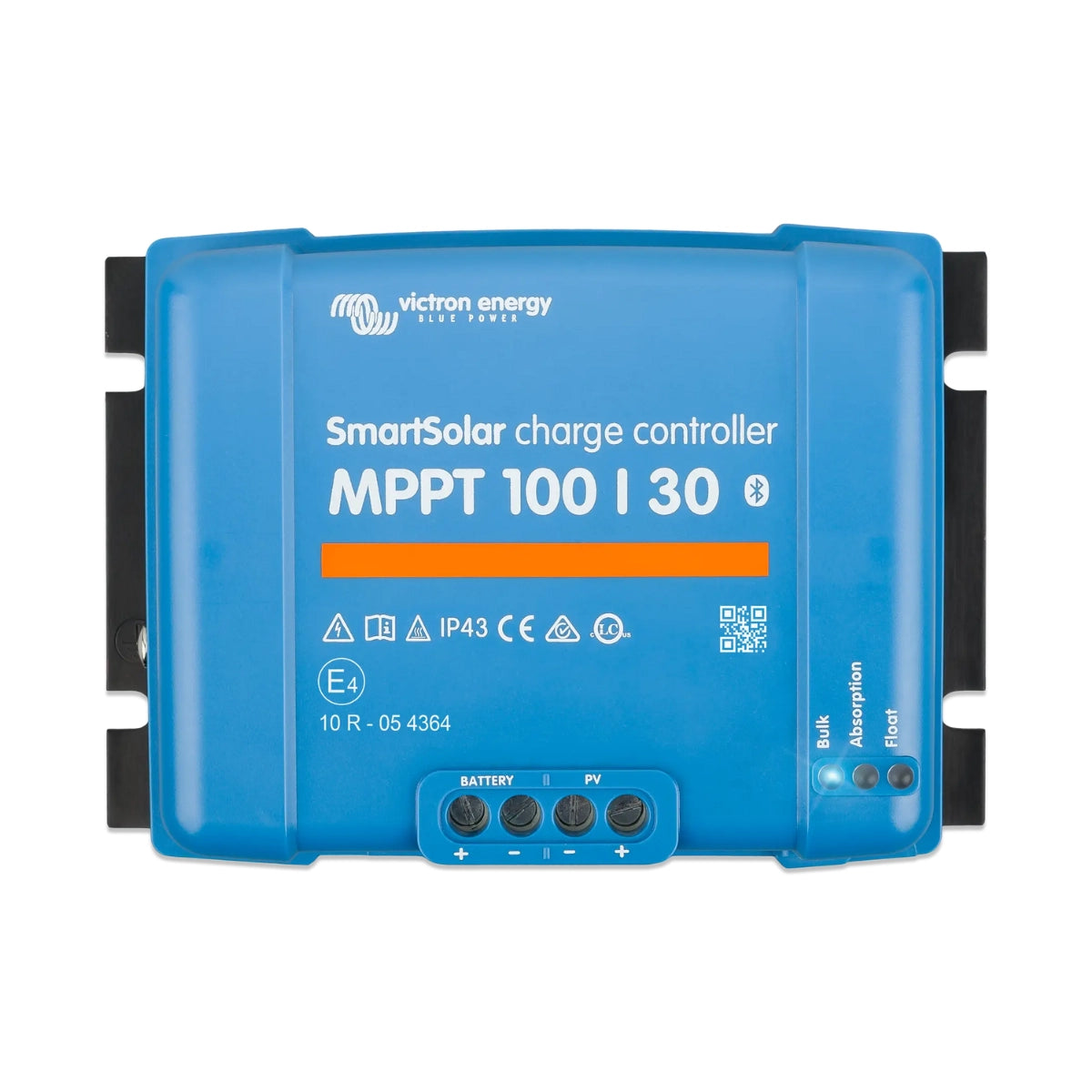

Victron SmartSolar MPPT 100/30

Victron SmartSolar MPPT 100/30

Features:

• Bluetooth Smart built-in
  • The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
• VE.Direct
  • For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Ultrafast Maximum Power Point Tracking (MPPT)
  • Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to
    30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.
• Advanced Maximum Power Point Detection in case of partial shading conditions
  • If partial shading occurs, two or more maximum power points may be present on the power-voltage curve.
    Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
    The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
• Outstanding conversion efficiency
  • No cooling fan. Maximum efficiency exceeds 98 %.
    The full output current up to 40 °C (104 °F).
• Flexible charge algorithm
  • Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
• Extensive electronic protection
  • Over-temperature protection and power derating when temperature is high.
    PV short circuit and PV reverse polarity protection.
    PV reverse current protection.
• Internal temperature sensor
  • Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth
  • A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar
    Charge Controllers.
• Fully discharged battery recovery function
  • Will initiate charging even if the battery has been discharged to zero volts.
    Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

Specifications:

• Battery voltage - 12/24 V Auto Select
• Rated charge current - 30 A
• Nominal PV power, 12 V (See note 1a,b) - 440 W
• Nominal PV power, 24 V (See note 1a,b) - 880 W
• Maximum PV open circuit voltage - 100 V
• Max. PV short circuit current (See note 2) - 35 A
• Maximum efficiency - 98 %
• Self-consumption -  12 V: 30 mA / 24 V: 20 mA
• Charge voltage 'absorption' - Default setting: 14,4 V / 28,8 V (adjustable)
• Charge voltage 'float' - Default setting: 13,8 V / 27,6 V (adjustable)
• Protection - PV reverse polarity / Output short circuit / Over temperature
• Data communication port - VE.Direct, See the data communication white paper on Victron website.
• Data stored - Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.

Notes:

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start.
 Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.

Datasheet. Click Here
