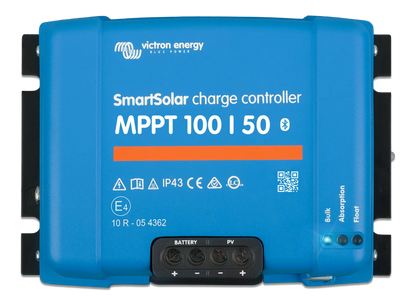

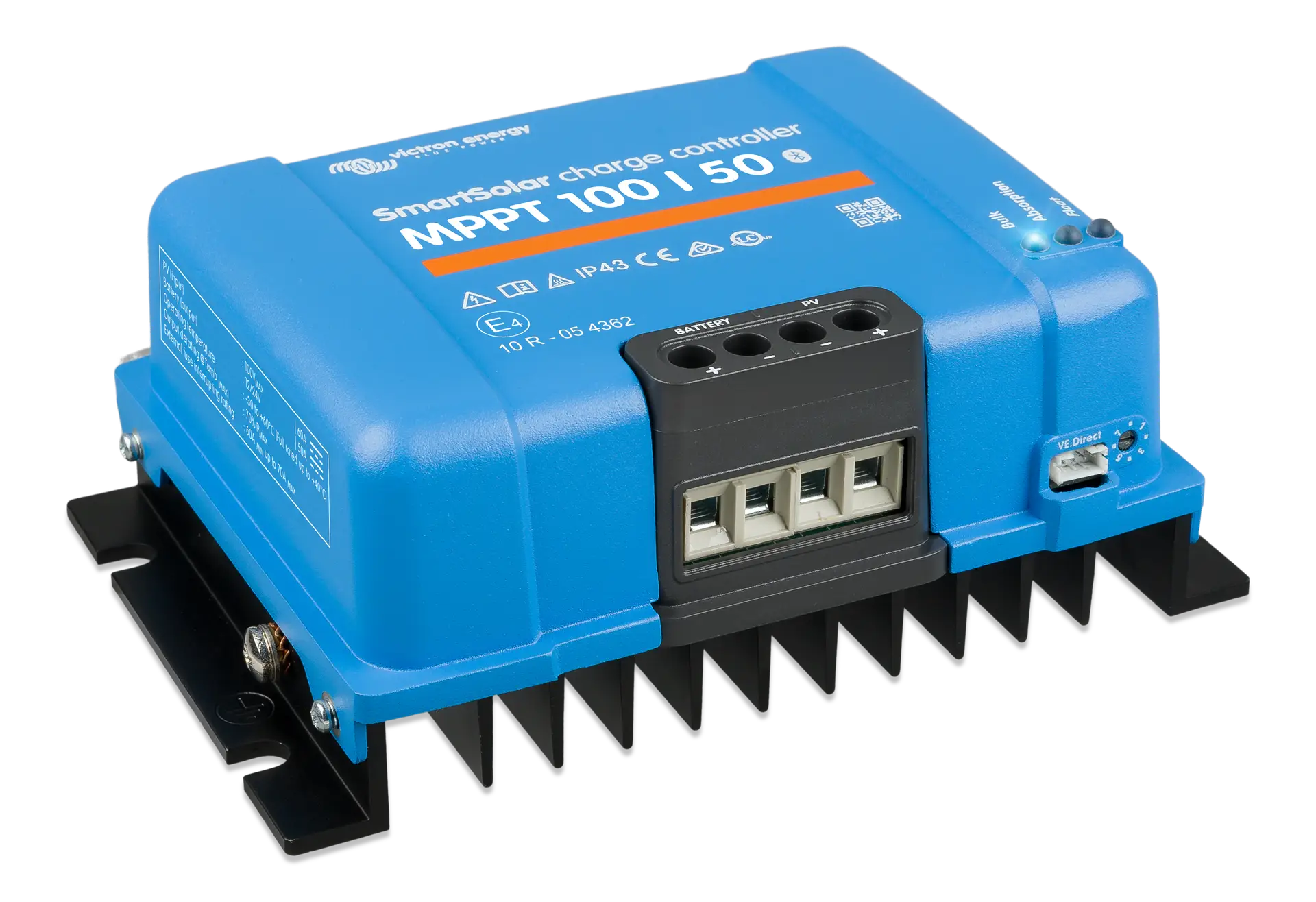

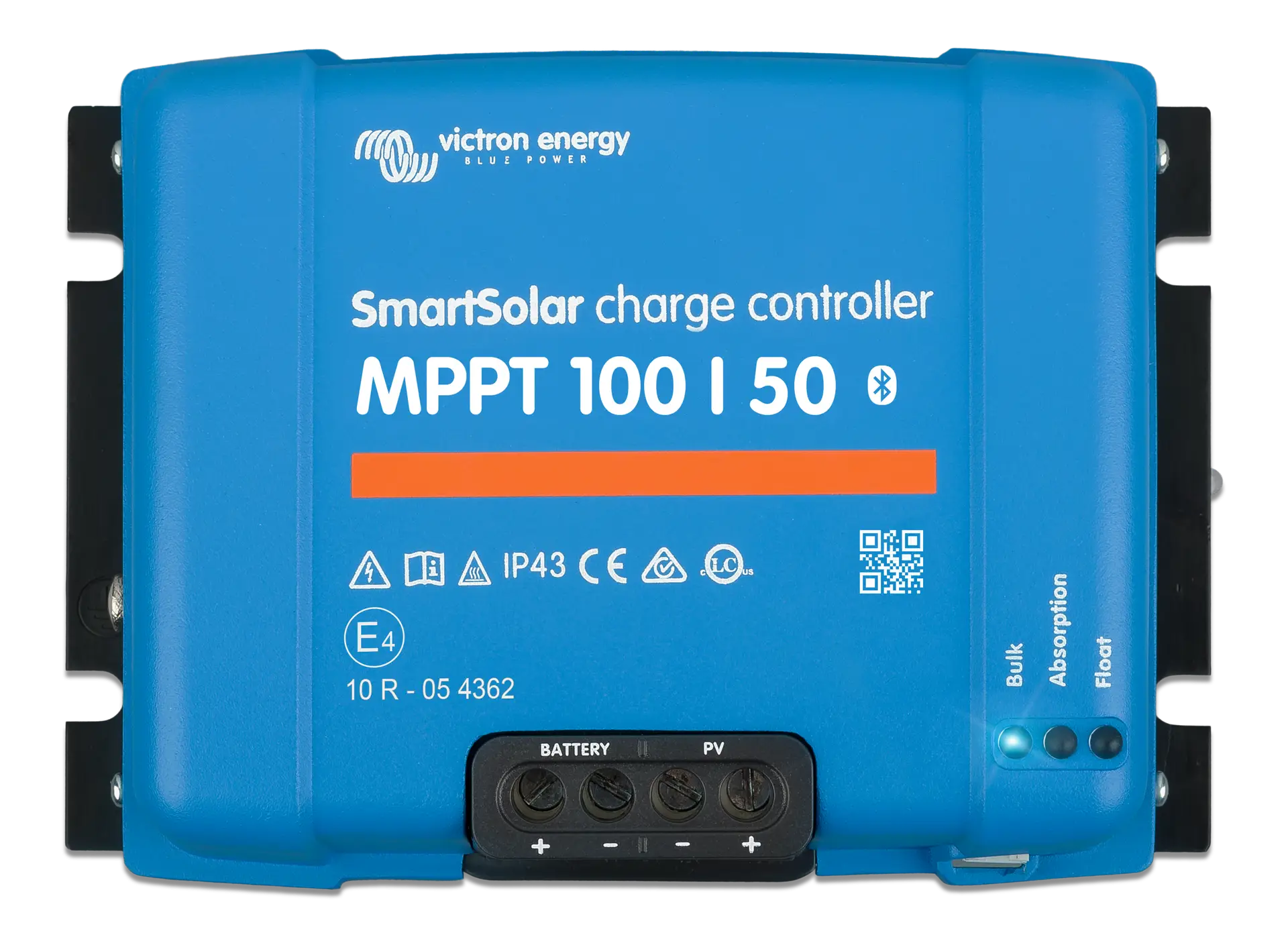

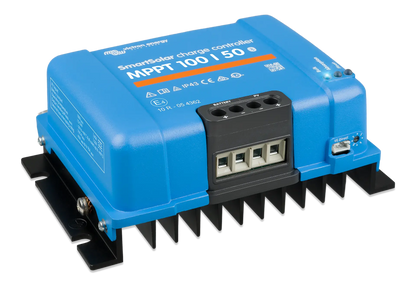

Victron SmartSolar MPPT 100/50

- Battery voltage - 12/24 V Auto Select
- Rated charge current - 50 A
- Nominal PV power, 12 V (See note 1a,b) - 700 W
- Nominal PV power, 24 V (See note 1a,b) - 1400 W
- Maximum PV open circuit voltage - 100 V
- Max. PV short circuit current (See note 2) - 60 A
- Maximum efficiency - 98 %
- Self-consumption - 12 V: 30 mA / 24 V: 20 mA
- Charge voltage 'absorption' - Default setting: 14,4 V / 28,8 V (adjustable)
- Charge voltage 'float' - Default setting: 13,8 V / 27,6 V (adjustable)
- Protection - PV reverse polarity / Output short circuit / Over temperature
- Data communication port - VE.Direct, See the data communication white paper on Victron website.
- Data stored - Battery voltage, current and temperature, as well as load output current,PV voltage and PV current.

Notes:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.
