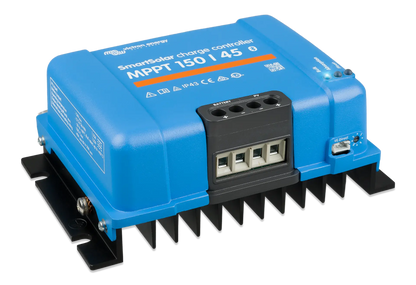

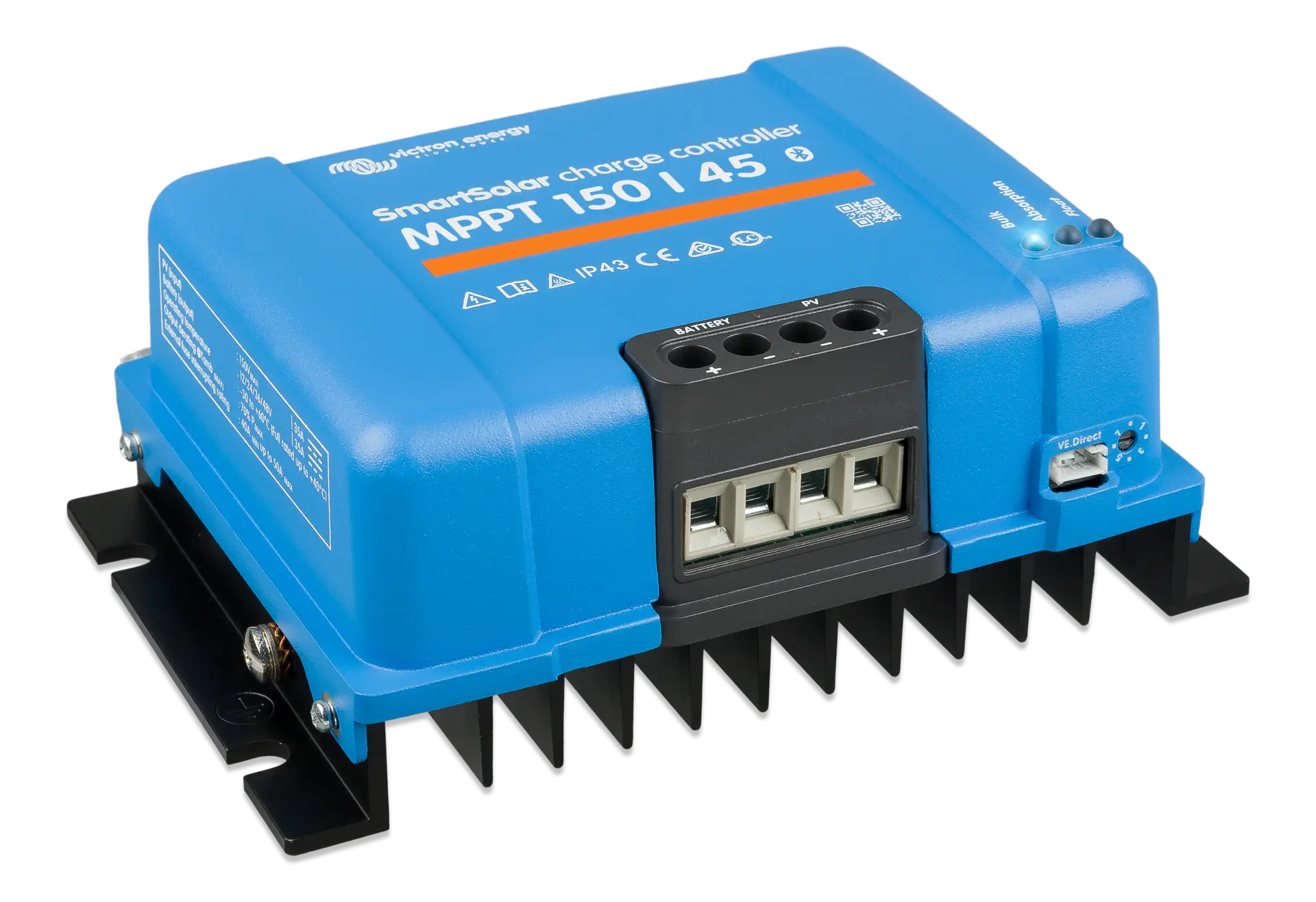

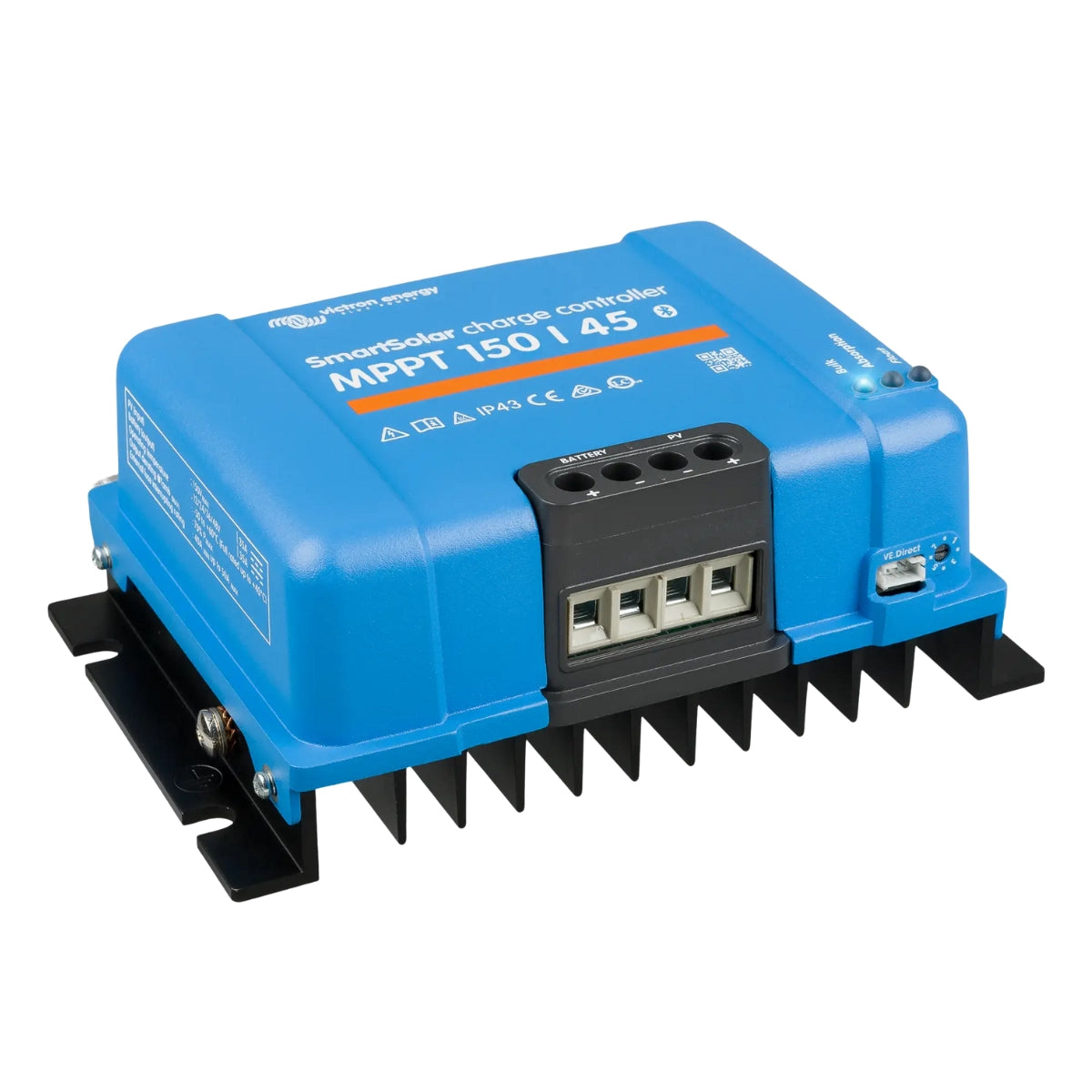

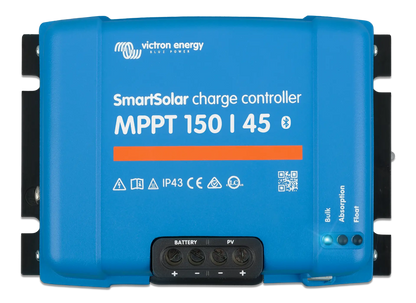

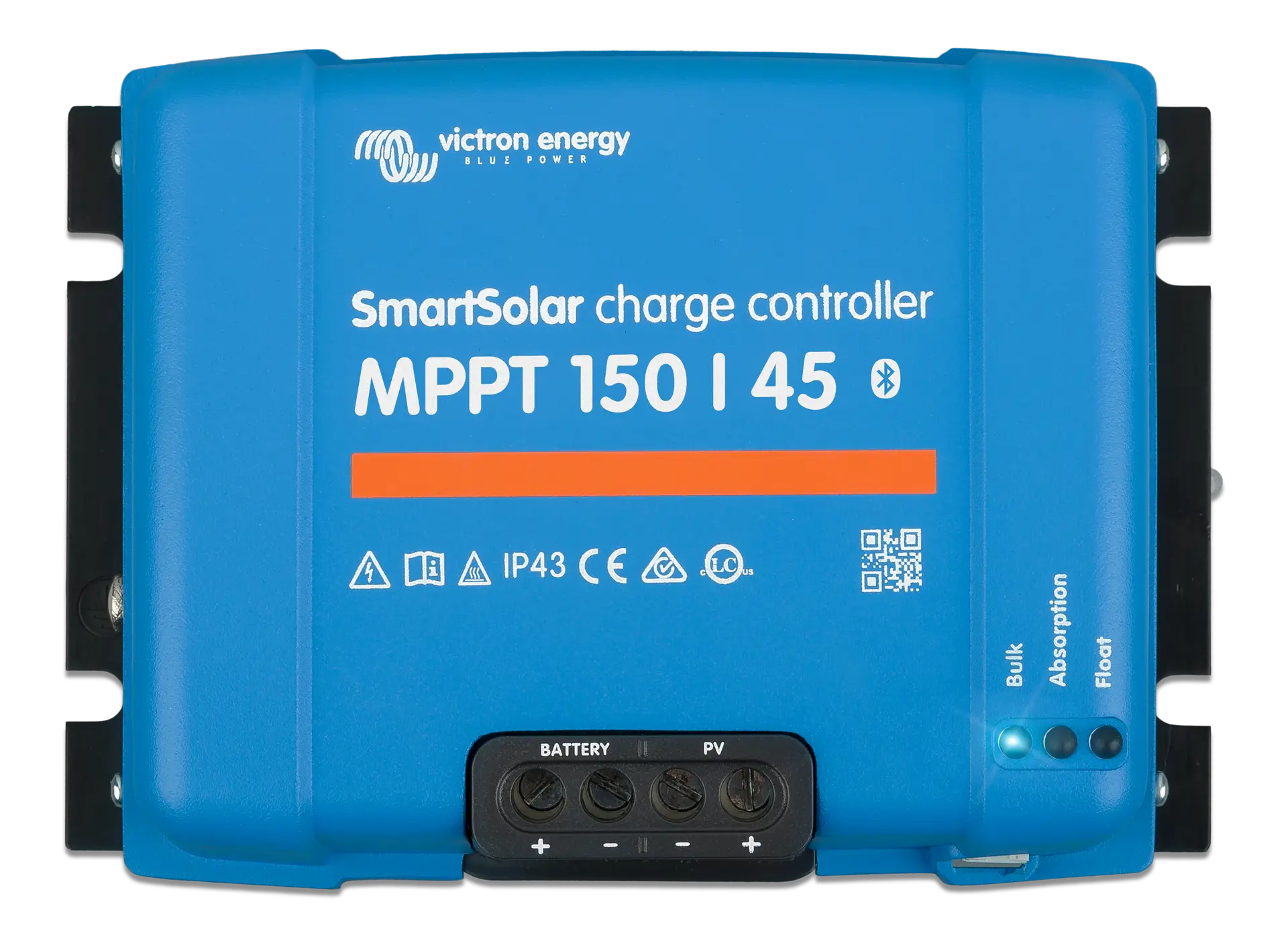

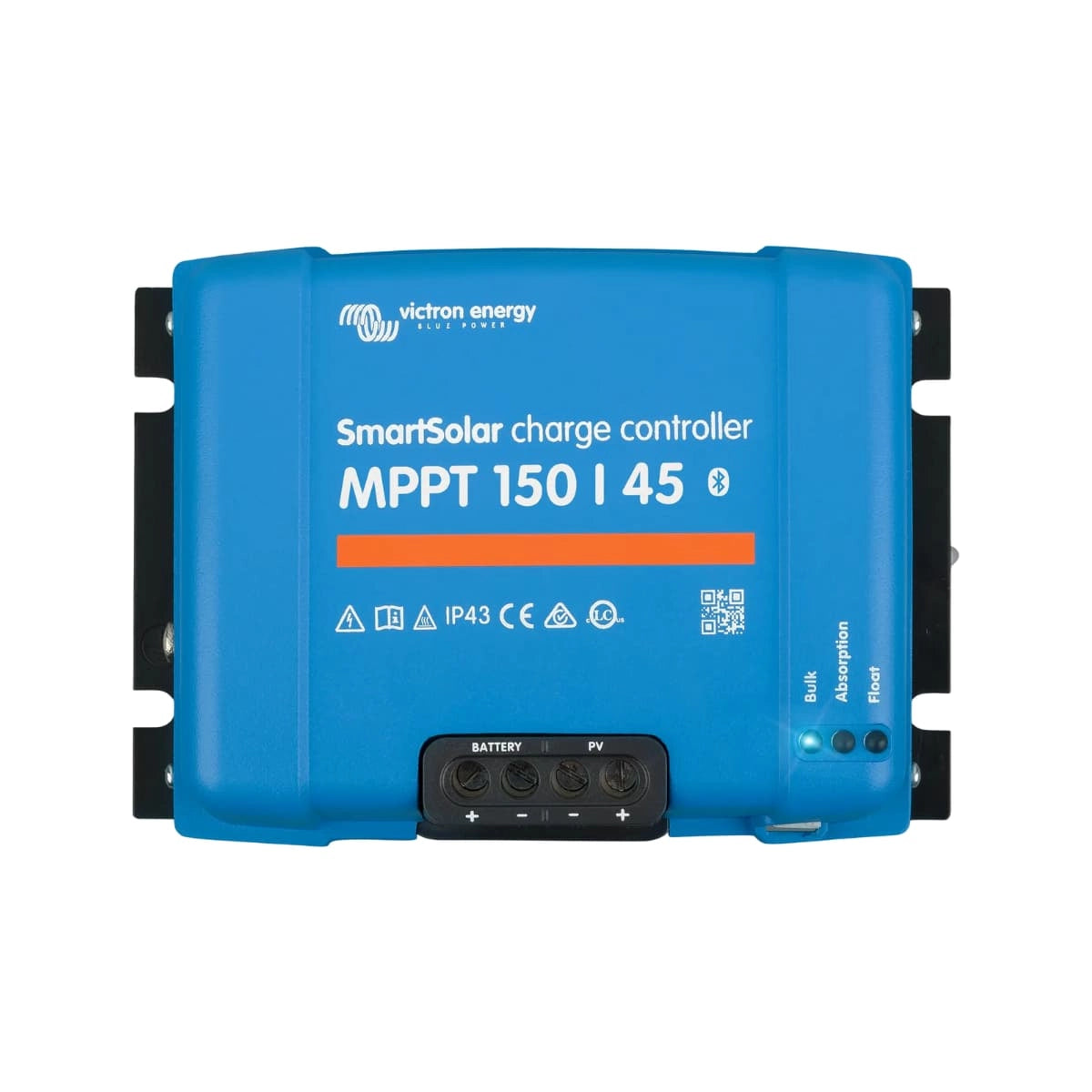

Victron SmartSolar MPPT 150/45

Victron SmartSolar MPPT 150/45

Features:

• Bluetooth Smart built-in
  • The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
• VE.Direct
  • For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Ultrafast Maximum Power Point Tracking (MPPT)
  • Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.
• Advanced Maximum Power Point Detection in case of partial shading conditions
  • If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
• Outstanding conversion efficiency
  • No cooling fan. Maximum efficiency exceeds 98 %. Full output current up to 40 °C (104 °F).
• Flexible charge algorithm
  • Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
• Extensive electronic protection
  •  - Over-temperature protection and power derating when temperature is high.  - PV short circuit and PV reverse polarity protection.  - PV reverse current protection.
• Internal temperature sensor
  • Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth
  • A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
• Fully discharged battery recovery function
  • Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

Specifications:

• Battery voltage - 12 / 24 / 48 V Auto Select
• Rated charge current -  45 A
• Nominal PV power  (See note 1a, b) -  45 A   12 V: 650 W / 24 V: 1300 W / 36 V: 1950 W / 48 V: 2600 W
• Max. PV short circuit current (See note 2) -  50 A
• Maximum PV open circuit voltage -  150 V absolute maximum coldest conditions /  145 V start-up and operating maximum
• Maximum efficiency -  98 %
• Self-consumption  - 12 V: 20 mA      24 V: 15 mA     48 V: 10 mA
• Charge voltage 'absorption' -  Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable)
• Charge voltage 'float' -  Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable)
• Charge algorithm -  multi-stage adaptive (eight pre-programmed algorithms)
• Temperature compensation -16 mV / -32 mV / -64 mV / °C
• Protection - PV reverse polarity / output short circuit / over-temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Data communication port -  VE.Direct
• Data stored -  Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
• Number of days trends data is stored -  46

Notes:

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start.
 Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.
