Victron SmartSolar MPPT 150/60-Tr

Victron SmartSolar MPPT 150/60-Tr

R 4,588.00
R 5,313.00 R 4,588.00
Sale Sold out
Tax included. Shipping calculated at checkout.

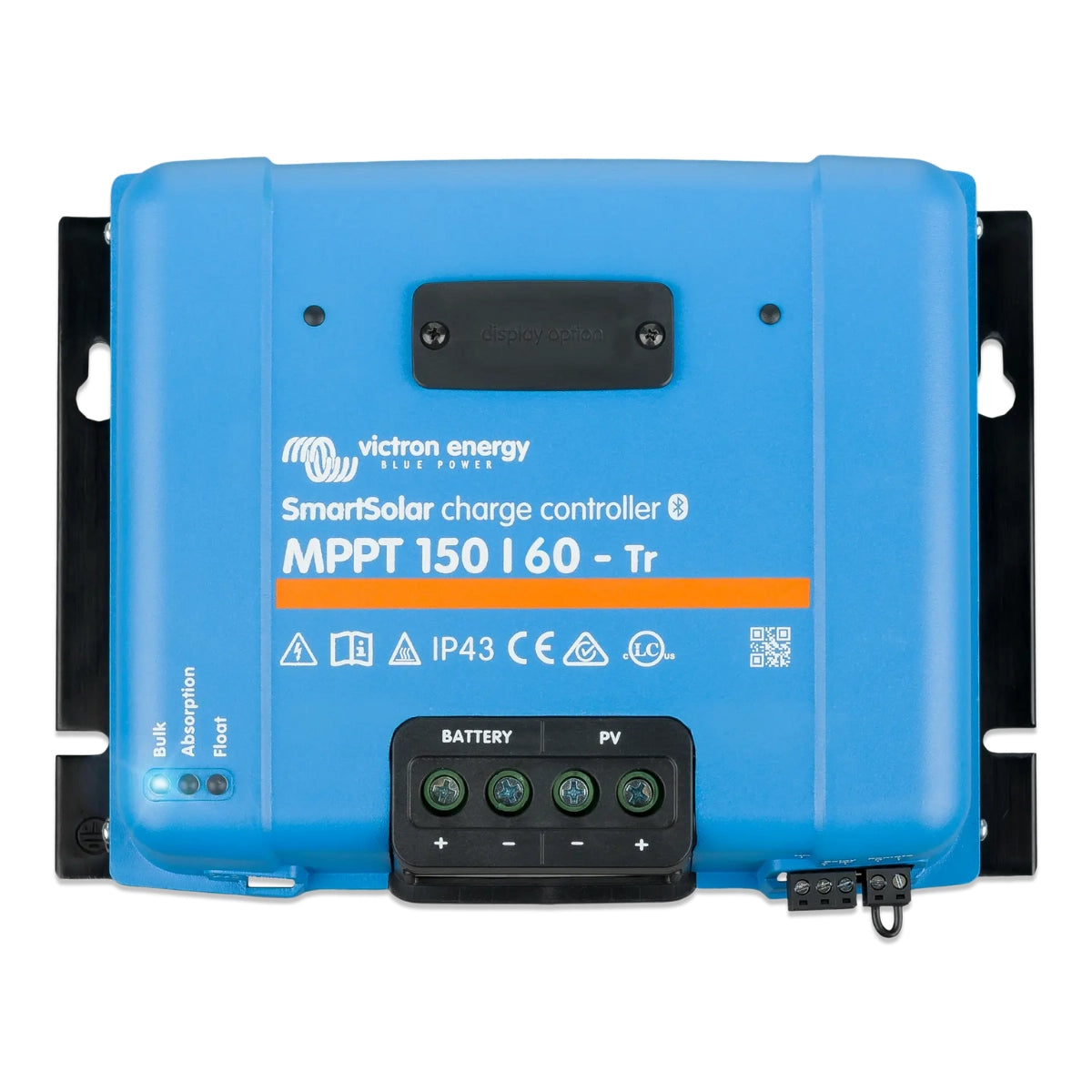

Victron SmartSolar MPPT 150/60-Tr

The Victron SmartSolar MPPT 150/60-Tr is a high-performance solar charge controller designed to harvest every drop of energy from your solar panels. With built-in Bluetooth and advanced tracking technology, it ensures your battery bank is charged safely and efficiently, even in challenging weather or shading conditions.

Product Features:

  • Bluetooth Smart Built-in: Wirelessly set up, monitor, and update the controller using your smartphone or tablet via the VictronConnect App.

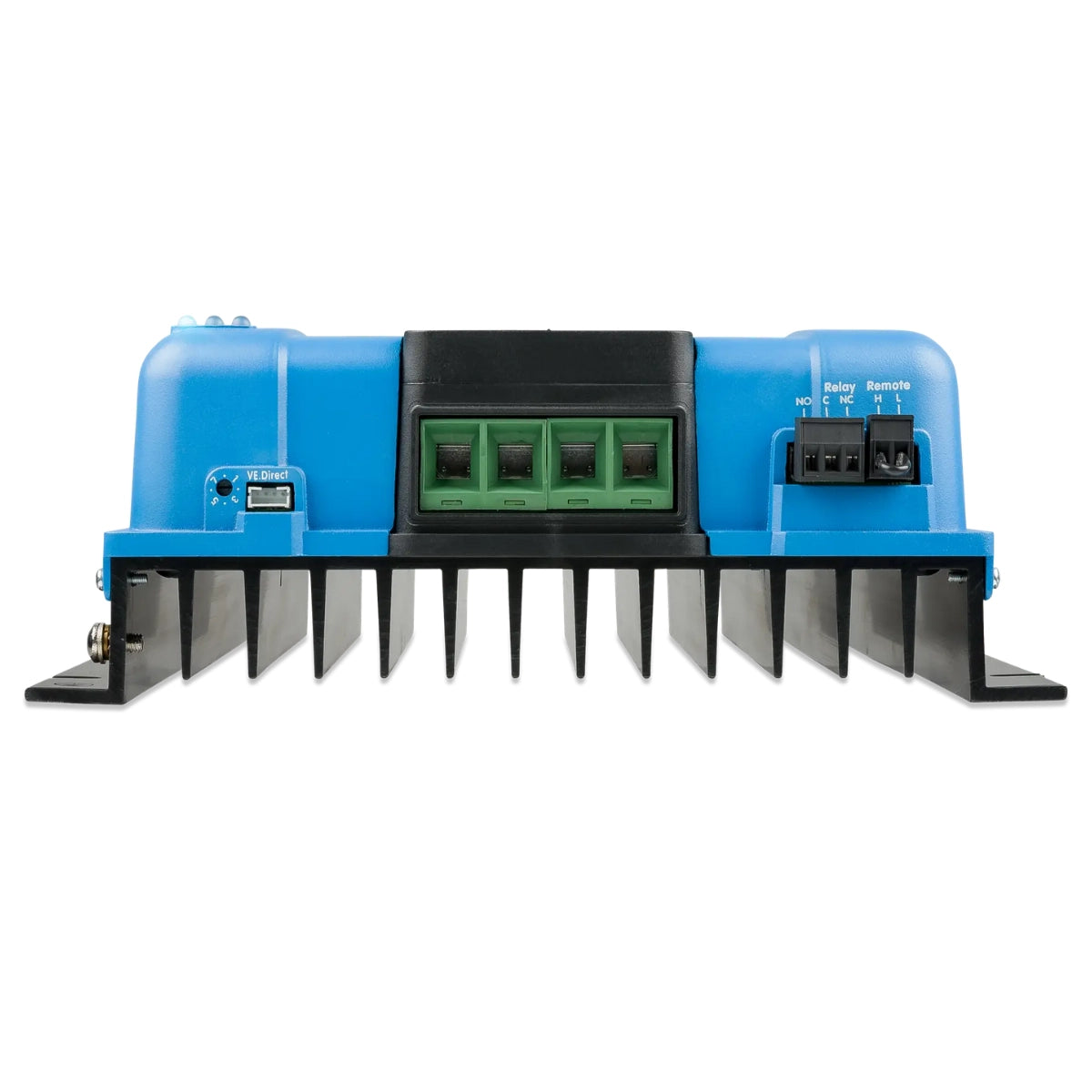

  • VE.Direct Port: Allows for a wired data connection to a GX device (like the Cerbo GX), PC, or other peripherals for advanced system integration.
  • Ultrafast MPPT Tracking: Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM controllers.
  • Advanced Partial Shading Detection: If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. This controller utilizes a sophisticated algorithm to always lock onto the optimum MPP.
  • Outstanding Conversion Efficiency: Features a fanless design with maximum efficiency exceeding 98%. It provides full output current up to 40°C (104°F).
  • Flexible Charge Algorithm: Fully programmable charge algorithms and eight pre-programmed algorithms, selectable with a rotary switch.
  • Extensive Electronic Protection: Includes over-temperature protection and power derating when temperature is high, as well as PV short circuit and PV reverse polarity protection.
  • Fully Discharged Battery Recovery: Will initiate charging even if the battery has been discharged to zero volts, provided the cells are not permanently damaged.

PRODUCT SPECIFICATIONS

- Battery voltage - 12 / 24 / 48 V Auto Select
- Rated charge current - 60 A
- Nominal PV power (See note 1a, b) - 60 A 12 V: 860 W / 24 V: 1720 W / 36 V: 2580 W / 48 V: 3440 W
- Max. PV short circuit current (See note 2) -50 A (max 30 A per MC4 conn.)
- Maximum PV open circuit voltage - 150 V absolute maximum coldest conditions / 145 V start-up and operating maximum
-Maximum efficiency - 98 %
- Self-consumption - Less than 35mA @ 12 V / 20mA @ 48V
- Charge voltage 'absorption' - Default setting: 14,4 / 28,8 / 43,2 / 57,6 V (adjustable)
- Charge voltage 'float' - Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable)
- Charge algorithm - multi-stage adaptive (eight pre-programmed algorithms)
- Temperature compensation -16 mV / -32 mV / -64 mV / °C
- Protection - PV reverse polarity / output short circuit / over-temperature
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Data communication port - VE.Direct or Bluetooth
- Data stored - Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
- Number of days trends data is stored - 46
- PV terminals (See Note 3) - 35 mm² / AWG2 (Tr models)
Two pairs of MC4 connectors (MC4 models)
- Battery terminals - 35 mm² / AWG2

Notes:
1a If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
2) A PV array with a higher short circuit current may damage the controller.
3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels
Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker

IMPORTANT NOTICE

Please ensure that the battery bank's power and storage capacity is sufficient for the inverter and installation requirements.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Crystal Communications and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Technical specifications and general features are provided on our website, however, as individual needs and requirements may differ, it is recommended that our sales team is contacted for any specific questions before a purchase is made to ensure that the item being purchased will satisfy your requirements.

The images shown are for illustration purposes only and may not be an exact representation of the product.
